Premium Arteor TV socket with single F-type shielding, UHD compatible, LTE ready 4G protection, 1-2400 MHz range, low 1dB attenuation, meets EN 50083 standards, magnesium grey finish, halogen-free construction.

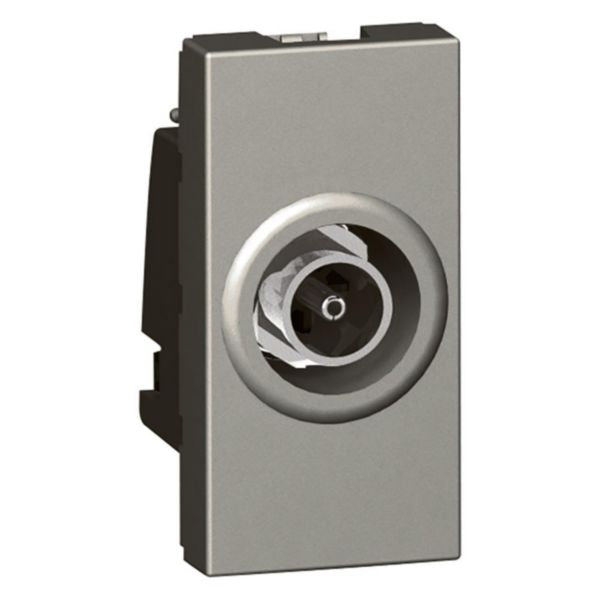

The Arteor™ TV socket is a premium television outlet designed for modern digital broadcasting installations. This single shielded F-type socket operates across the full frequency range of 0-2400 Hz, making it compatible with DVB-T, Cablecast, and satellite installations. The socket features UHD TV quality compatibility and is LTE ready with 4G protection, ensuring superior signal reception and protection against electromagnetic interference. The device utilizes Class A shielding technology with star cabling architecture, where each socket connects directly to an antenna, splitter, or multiswitch with a single cable, eliminating signal loss from multi-way splitters.
This 1-module Arteor TV socket is constructed with a durable magnesium finish in grey color, offering both aesthetic appeal and robust protection. It meets the stringent requirements of European directives EN 50083-4 and EN 50083-2, guaranteeing compliance with international broadcasting standards. The socket features low attenuation characteristics with only 1dB loss at TV frequencies and 1.5dB loss at 2150 MHz, ensuring minimal signal degradation. The recommended coaxial cable is 17 VATCA, and the device includes visual connection verification for easy installation and troubleshooting.
With an IP20 degree of protection and IK04 impact strength rating, this socket is suitable for both residential and commercial building installations. The halogen-free construction makes it environmentally friendly, while the lacquered matte finish provides durability and aesthetic consistency with modern interior designs. The socket operates reliably within temperature ranges of 5-45°C and is compatible with remote power supply systems, making it an ideal choice for comprehensive home automation and building control systems.
Key Features
- Single shielded F-type connector with 0-2400 MHz frequency range for DVB-T, Cablecast and satellite installations
- UHD TV quality compatible with LTE ready 4G protection and Class A electromagnetic shielding
- Star cabling architecture with one cable per socket eliminating multi-way splitter signal loss
- Low attenuation design with 1dB loss at TV frequencies and 1.5dB at 2150 MHz for superior signal integrity
- Compliant with European standards EN 50083-4 and EN 50083-2 with visual connection verification
Technical Specifications
| Specification |
Value |
| Product Type | Single TV Socket Outlet |
| Connector Type | F-type shielded connector |
| Frequency Range | 0-2400 MHz (TV 5-68/120-862 MHz, R 87.5-108 MHz, SAT 950-2400 MHz) |
| Number of Modules | 1 module |
| Tap Loss at 860 MHz | 1 dB |
| Tap Loss at 2150 MHz | 1.5 dB |
| Shielding Class | Class A with LTE ready 4G protection |
| Mounting Method | Module frame system |
| Material | Duroplast plastic with magnesium finish |
| Color | Grey with lacquered matte finish |
| Device Dimensions | Width 45mm × Height 45mm × Depth 33mm |
| Minimum Built-in Box Depth | 40 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| Halogen Free | Yes |
| Remote Power Supply Compatible | Yes |
| Recommended Coaxial Cable | 17 VATCA |
| European Standards Compliance | EN 50083-4 and EN 50083-2 |
| Reference Number | 572663 |
| EAN Code | 3245065726633 |
