Shop Legrand Arteor Telephone Socket RJ11 6 Contacts 2 Modules Soft Alu | 572682 In Iraq Best Prices
Professional Arteor RJ11 telephone socket with 2 modules, 6 contacts, and soft aluminium finish. Features modular jack connector with 1/4 turn terminal for fast connections, Category 3 performance, dust cover, and separate earthing connection. RoHS compliant.

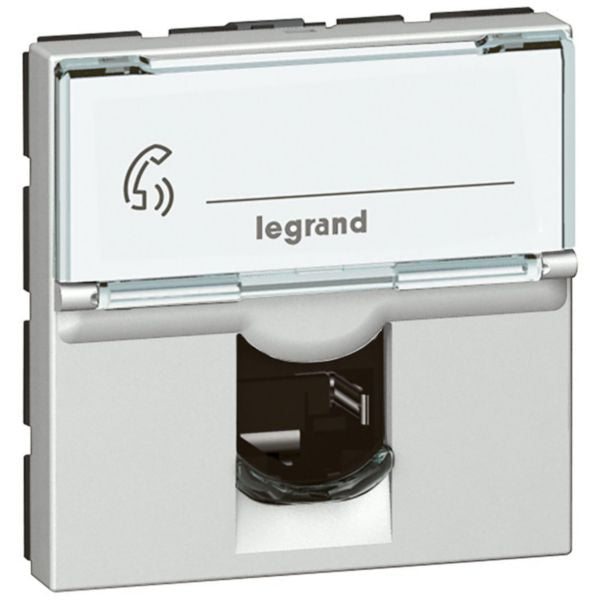

The Arteor Telephone Socket RJ11 is a professional-grade modular wiring device designed for residential and commercial telecommunications applications. This high-quality socket features RJ11 connectivity with 6 contacts and is configured as a 2-module unit, providing reliable telephone line connections. The socket is finished in elegant Soft Aluminium, offering a contemporary aesthetic that complements modern interior designs. The device employs a modular jack connector with a 1/4 turn terminal system for fast and secure connections, with the capability for looping connections when required.
This Arteor telephone socket is engineered to meet international standards and provides Category 3 performance for voice and basic data transmission. The socket features a dust cover for protection when not in use and incorporates separate earthing connection capabilities for enhanced safety and signal integrity. With its snap-engage fastening method, the socket integrates seamlessly into modular switching systems and can be installed in various receptacle types. The device operates reliably within a temperature range of 5-45°C and maintains its performance across storage conditions of -20 to 70°C.
The socket's compact design with 45mm width and height, combined with a 40mm built-in depth, allows for flexible installation options. It is manufactured with halogen-free materials, ensuring environmental compliance and safety. The IK04 impact strength rating provides adequate protection against mechanical stress in typical domestic and light commercial environments. This product is RoHS compliant and comes with comprehensive technical documentation, making it an ideal choice for professional telecommunications installations.
Key Features
- RJ11 modular jack connector with 1/4 turn terminal for fast and secure connections
- 2-module configuration with 6 contacts for reliable telephone line connectivity
- Soft Aluminium finish providing contemporary aesthetic appeal
- Category 3 performance for voice and basic data transmission
- Snap-engage fastening method for seamless modular system integration
- Dust cover protection and separate earthing connection for safety
- Halogen-free materials for environmental compliance and safety
- IK04 impact strength rating for mechanical stress protection
- Compact design: 45mm width and height with 40mm built-in depth
- RoHS compliant with comprehensive technical documentation
Technical Specifications
| Specification |
Value |
| Product Type | Telephone Socket - RJ11 |
| Connector Type | Modular Jack Connector with 1/4 Turn Terminal |
| Number of Contacts | 6 Contacts |
| Module Configuration | 2 Modules |
| Category | Category 3 |
| Colour | Soft Aluminium |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Built-in Depth | 40 mm |
| Fastening Method | Snap-Engage (Engage) |
| Outlet Direction | Straight |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | 5°C to 45°C |
| Storage Temperature Range | -20°C to 70°C |
| Dust Cover | Yes |
| Separate Earthing Connection | Yes |
| Label Space | Yes |
| Halogen Free | Yes |
| Shielded Housing | No |
| Surface Mounting | No |
| Duct Installation | No |
| Floor Box/Subfloor Mounted | No |
| Mechanical Coding | No |
| Colour Coding | No |
| Antimicrobial Treatment | No |
| SKU/Reference | 572682 |
| EAN Code | 3414971847477 |
| Brand | Legrand |
| Product Range | Arteor |
| Compliance | RoHS Compliant |
