Shop Legrand Arteor Swiss T13 Socket Outlet 10A 250V 2P+E Champagne | 571073 In Iraq Best Prices
Premium Swiss T13 socket outlet with 10A/250V capacity, 2P+E configuration, and champagne finish. Halogen-free, IP40 rated, featuring automatic push-in terminals and loop-through functionality for reliable residential and commercial installations.

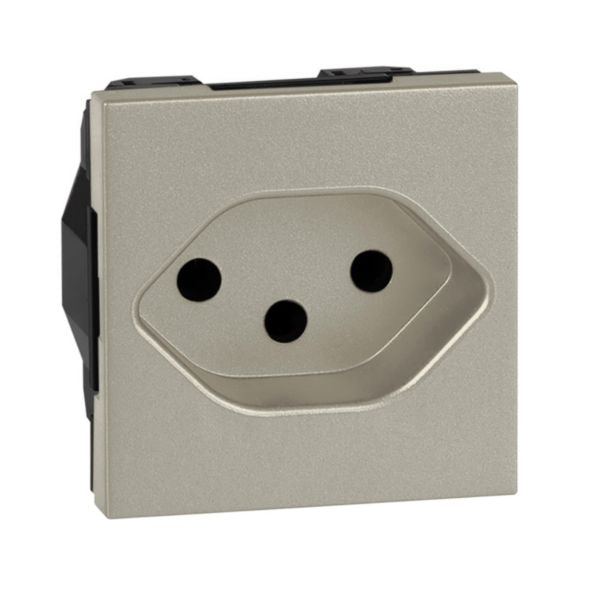

The Arteor Swiss T13 Socket Outlet is a premium wiring device designed for international applications, specifically engineered to meet Swiss electrical standards. This 10A, 250V outlet features a 2P+E configuration with automatic push-in clamp terminals, providing reliable and safe power distribution in residential and commercial settings. The socket is housed in a champagne-colored thermoplastic housing with a lacquered, matte finish that complements modern interior designs.
This 2-module outlet is part of the renowned Arteor international collection by Legrand, offering superior quality and durability. The device is halogen-free, complying with environmental regulations, and features a protective round contact design with enhanced safety features. The socket outlets are supplied with rocker plates and are designed to be equipped with support frames and plates for seamless integration into any electrical installation.
The outlet operates at 50-60 Hz frequency and is suitable for IP40 degree of protection with IK04 impact strength rating. It features a loop-through function for convenient daisy-chaining installations and maintains optimal performance across operating temperatures from -5°C to 50°C. The device supports rigid cables with a cross-section of 2.5 mm², ensuring secure and reliable electrical connections.
Key Features
- Swiss Type 13 (T13) socket outlet compliant with international standards
- 10A/250V electrical capacity with 2P+E protective earth configuration
- Automatic push-in clamp terminals for secure cable connections
- Halogen-free thermoplastic housing with champagne matte finish
- Loop-through function enabling daisy-chain installation capability
- IP40 degree of protection with IK04 impact strength rating
- 2-module design for flexible installation options
- Operating temperature range -5°C to 50°C for reliable performance
- 50-60 Hz frequency compatibility for global use
- Supports 2.5 mm² rigid cable connections
Technical Specifications
| Specification |
Value |
| Product Name | Arteor Swiss T13 Socket Outlet |
| SKU/Reference | 571073 |
| EAN Code | 3414971851924 |
| Socket Type | Swiss Type 13 (T13) |
| Nominal Current | 10 Amperes |
| Nominal Voltage | 250 Volts |
| Configuration | 2P+E (2 Poles + Earth) |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 modules |
| Connection Type | Automatic Push-in Clamp Terminals |
| Frequency | 50-60 Hz |
| Protective Contact | Round |
| Number of Active Contacts (Round) | 1 |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 35.2 mm |
| Built-in Depth | 35.2 mm |
| Material | Thermoplastic |
| Material Quality | High-grade Thermoplastic |
| Color | Champagne (Titanium) |
| Surface Finishing | Lacquered Matt |
| Halogen Free | Yes |
| Metallic Color | No |
| Transparent | No |
| Lockable | No |
| With Hinged Lid | No |
| With Enhanced Contact Protection | No |
| With Function Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| With Miniature Fuse | No |
| Eject Mechanism | No |
| Loop Through Function | Yes |
| With On/Off Switch | No |
| Mounting Method | Module Frame |
| Type of Fastening | Snap Mounting (Engagement) |
| Voltage Type | AC (Alternating Current) |
| Power Delivery | No |
| Cable Nature for Connection | Rigid |
| Cable Section | 2.5 mm² |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT Support | No |
| Wi-Fi Signal Repeater | No |
| Built-in Bluetooth Speaker | No |
| Heavy Conditions (VDE) | No |
| Connected Object | No |
| Assembly Arrangement | Basic Element with Central Cover Plate |
| Complementary Luminous Signal | No |
| USB-A Ports | 0 |
| USB-C Ports | 0 |
| Phase-Separated Socket Outlets | No |
| Switchable Socket Outlets | 0 |
| Number of Phases | 1 |
| Imprint/Indication | Other |
| Label Space/Information Surface | No |
| Antimicrobial Treatment | No |
| Rotated Central Insert | No |
| Insulated Mounting | No |
| Brand | Legrand |
| Product Line | Arteor International |
| Category | Wiring Devices - Power Outlets |
| Warranty | Standard Legrand Warranty |
Order Legrand Arteor Swiss T13 Socket Outlet 10A 250V 2P+E Champagne | 571073 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
