Description

Shop Legrand Arteor South African 2x2P+E Switched Socket Outlet 16A Champagne | 570022 In Iraq Best Prices

Premium Arteor™ dual 16A South African socket outlet with individual switches, pre-wired design, champagne finish, and enhanced contact protection for modern electrical installations.

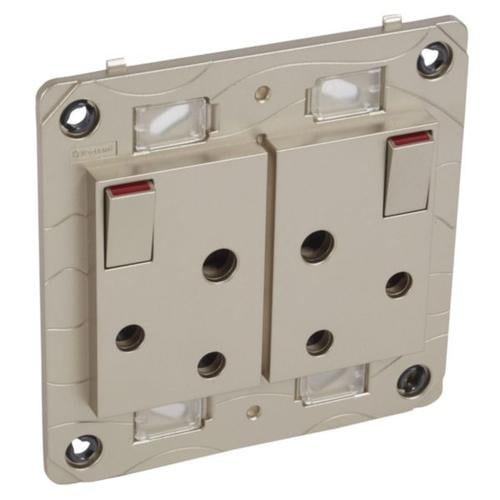

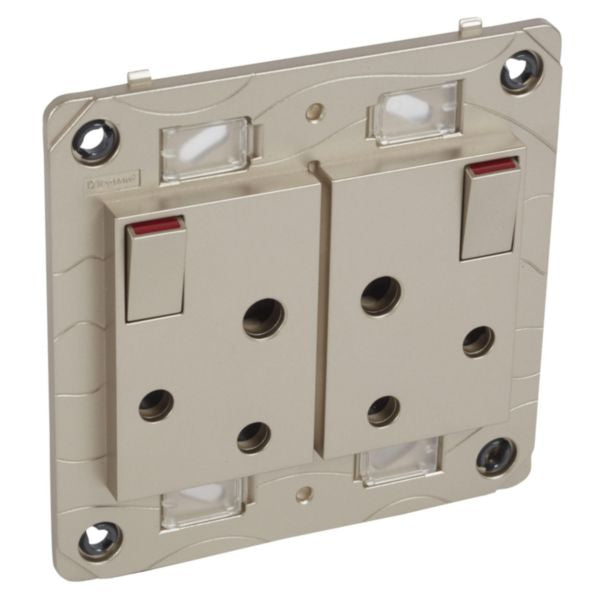

The Arteor™ South African type 2x2P+E switched 2 gang pre-wired socket outlet is a premium electrical installation component designed for residential and commercial applications. This dual gang outlet features two independent 16 A socket outlets with individual switches, each equipped with round protective contacts meeting South African standards. The unit comes pre-wired and ready for installation, with a support frame included for convenient flush mounting. The champagne-colored finish provides a sophisticated aesthetic that complements modern interior designs. This socket outlet system utilizes advanced module technology, requiring 2x3 module plates for complete installation. The device features enhanced contact protection to ensure safety and durability in high-traffic environments. With a nominal voltage rating of 250V and frequency compatibility of 50-60 Hz, this outlet is suitable for standard electrical systems. The thermoplastic construction is halogen-free, making it environmentally friendly and compliant with modern safety regulations. The Arteor™ range represents Legrand's commitment to quality and innovation in wiring devices. Each outlet is engineered with precision screwed terminals for secure cable connections, supporting flexible or rigid cables from 4-4 mm² cross-section. The IP20 protection rating and IK04 impact resistance ensure reliable performance in typical indoor environments. This product is ideal for applications requiring multiple simultaneous power access points with individual control capabilities.

Key Features

South African type 2x2P+E switched socket outlets with round protective contacts
Dual independent 16A outlets with individual on/off switches for flexible power management
Pre-wired design with included support frame for quick and easy installation
Enhanced contact protection and halogen-free thermoplastic construction for safety and environmental compliance
Flush-mounted design with IP20 protection rating and IK04 impact resistance for reliable indoor performance
Requires 2x3 module plates for complete installation in Arteor™ system
Champagne color finish providing sophisticated aesthetic appeal
Screwed terminal connections supporting 4-4 mm² flexible or rigid cables
Nominal voltage 250V with 50-60 Hz frequency compatibility
Loop-through function enabling daisy-chain installation for expanded connectivity

Technical Specifications

Specification	Value
Product Type	South African Type Socket Outlet
Configuration	2x2P+E Switched 2 Gang Pre-wired
Nominal Current	16 A per outlet
Nominal Voltage	250 V
Frequency Range	50-60 Hz
Number of Socket Outlets	2 independent outlets
Number of Modules	4 modules (requires 2x3 module plates)
Protective Contact Type	Round
Connection Type	Screwed Terminal
Cable Support	4-4 mm² flexible or rigid cables
Mounting Method	Flush-mounted
Protection Rating (IP)	IP20
Impact Strength Rating (IK)	IK04
Device Dimensions (W x H x D)	114 mm x 119 mm x 31.7 mm
Built-in Depth	35.8 mm
Material	Thermoplastic (Halogen-free)
Color	Champagne (Titanium)
Surface Finishing	Glossy Lacquered
Switch Operator Color	Titanium
Enhanced Contact Protection	Yes
Loop Through Function	Yes
On/Off Switch	Yes (2 individual switches)
Operating Temperature Range	-5°C to +50°C
Storage Temperature Range	-10°C to +70°C
Voltage Type	AC
SKU	570022
EAN Code	3414970923806
Brand	Legrand
Range	Arteor™ International
Standards Compliance	South African Standards, RoHS Compliant

Order Legrand Arteor South African 2x2P+E Switched Socket Outlet 16A Champagne | 570022 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
