Shop Legrand Arteor South African 2x2P+E Switched 2 Gang Socket Outlet 16A | 571022 In Iraq Best Prices
Premium South African 2x2P+E dual socket outlet with integrated on/off switches, 16A rated, enhanced contact protection, and aluminium finish for modern installations.

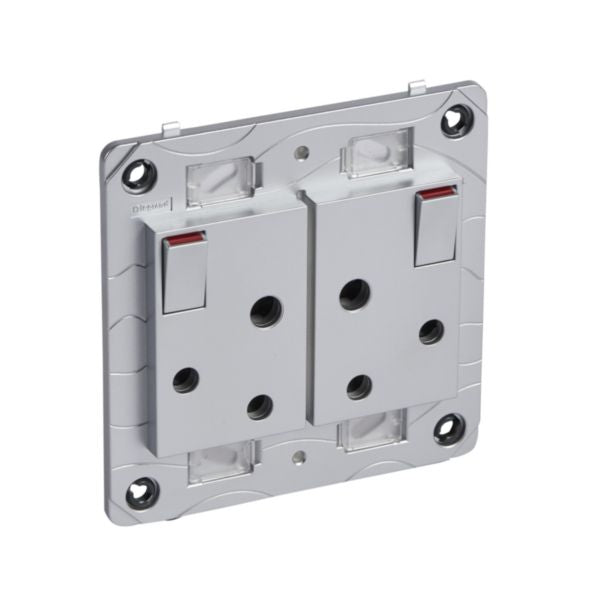

The Arteor™ South African type 2x2P+E switched 2 gang pre-wired socket outlet is a premium electrical installation component designed for modern residential and commercial applications. This dual socket outlet features advanced safety mechanisms with enhanced contact protection and is specifically engineered to meet South African electrical standards. With a nominal current rating of 16A and nominal voltage of 250V, it provides reliable power distribution for multiple devices simultaneously while maintaining optimal safety standards.
This socket outlet is manufactured using high-quality thermoplastic material with a sophisticated aluminium finish (RAL 7040) that seamlessly integrates into contemporary interior designs. The unit measures 114mm in width, 119mm in height, and 31.7mm in depth, making it ideal for flush-mounted installations. It features integrated on/off switches for each socket, allowing independent control of connected devices. The pre-wired configuration with support frame simplifies installation, while the screwed terminal connection type accommodates flexible or rigid cables ranging from 4-4mm² in cross-section.
Complying with IP20 protection rating and IK04 impact strength standards, this socket outlet is halogen-free and lacquered with a matt finish for enhanced durability and environmental safety. Operating across 50-60 Hz frequencies and maintaining functionality between -5 to 50°C, this product represents the pinnacle of electrical safety and performance for South African applications.
Key Features
- South African type 2x2P+E socket configuration for regional compatibility
- Dual switched socket outlets with independent on/off controls
- 16A nominal current rating at 250V for reliable power distribution
- Enhanced contact protection system for superior electrical safety
- Pre-wired design with support frame for simplified installation
- Halogen-free thermoplastic construction for environmental safety
- Aluminium finish (RAL 7040) with matt lacquered surface
- IP20 protection rating and IK04 impact strength certification
- Flush-mounted installation with screw fastening method
- Wide operating temperature range -5 to 50°C
- Compatible with 4-4mm² flexible or rigid cables
- 50-60 Hz frequency compatibility for global use
Technical Specifications
| Specification |
Value |
| Product Type | South African Type 2x2P+E Switched Socket Outlet |
| Reference Number | 571022 |
| EAN Code | 3414970925091 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 2 |
| Number of Modules | 4 |
| Protective Contact Type | Round |
| With On/Off Switch | Yes |
| Connection Type | Screwed Terminal |
| Cable Section Range | 4-4 mm² |
| Cable Type | Flexible or Rigid |
| Material | Thermoplastic |
| Colour | Aluminium (RAL 7040) |
| Surface Finishing | Lacquered Matt |
| Device Width | 114 mm |
| Device Height | 119 mm |
| Device Depth | 31.7 mm |
| Built-in Depth | 35.8 mm |
| Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5 to 50 °C |
| Storage Temperature Range | -10 to 70 °C |
| Halogen Free | Yes |
| Enhanced Contact Protection | Yes |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with Screw |
| Assembly Arrangement | Basic Element |
| Voltage Type | AC |
| Colour of Switch Operator | Aluminium |
| With Loop Through Function | Yes |
