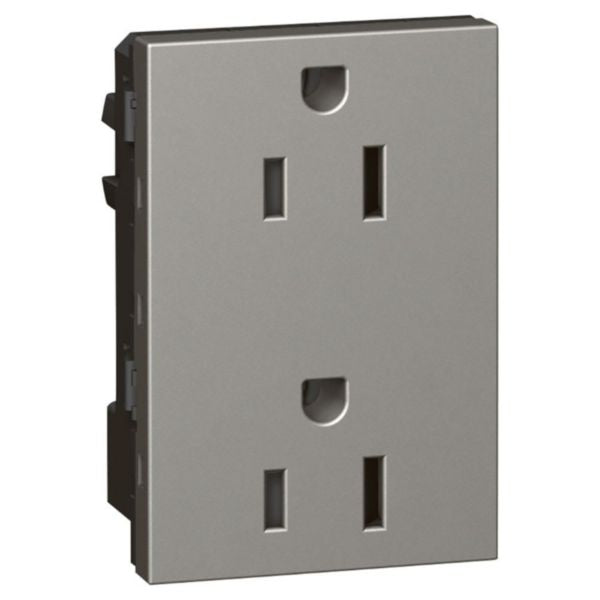

Shop Legrand Arteor Socket US 15A 127V 2x2P+E 3 Modules Magnesium | 572634 In Iraq Best Prices
Premium dual American-type socket outlet (2x2P+E) rated 15A/127V with magnesium finish, 3-module configuration, halogen-free construction, and snap-mounting installation for residential and commercial use.
The Arteor™ Socket US is a premium American-type socket outlet designed for North American electrical standards. This high-quality electrical component features dual 2P+E socket outlets rated at 15A/127V, housed in a sleek magnesium-colored thermoplastic frame with a 3-module configuration. Manufactured by Legrand, a global leader in electrical and digital infrastructure, this socket outlet combines durability with modern design aesthetics suitable for residential and commercial installations.
This socket outlet is engineered with screwed terminal connections to accommodate flexible or rigid cables ranging from 4-4 mm² in cross-section. The unit maintains an IP40 degree of protection and IK04 impact strength rating, ensuring reliable performance in various indoor environments. The snap-mounting installation method allows for easy integration into standard module frames, making it ideal for both new installations and retrofitting projects.
The Arteor™ Socket features a halogen-free thermoplastic construction, meeting environmental and safety standards. With its loop-through functionality and universal compatibility with standard electrical systems, this outlet provides a dependable solution for powering multiple devices simultaneously. The product is certified and compliant with international safety standards, backed by Legrand's reputation for excellence in electrical infrastructure.
Key Features
- Dual 2P+E American-type socket outlets (NEMA 5-15 Type B) rated at 15A/127V for North American electrical standards
- Magnesium-colored thermoplastic housing with halogen-free material for enhanced safety and environmental compliance
- 3-module configuration with snap-mounting system for easy installation into standard module frames
- Screwed terminal connections supporting flexible or rigid cables from 4-4 mm² cross-section
- IP40 degree of protection with IK04 impact strength rating for reliable indoor performance
- Loop-through functionality allowing daisy-chain connections for expanded electrical distribution
- Operating temperature range of -5°C to +50°C with storage capability from -10°C to +70°C
- Compliant with international safety standards and RoHS directives for electrical and environmental safety
- 45mm width x 67.5mm height x 35.2mm depth with 26.7mm built-in depth for standard wall installations
- 50-60 Hz frequency compatibility for universal global electrical system integration
Technical Specifications
| Specification |
Value |
| Product Name | Arteor™ Socket US 15A/127V 2x2P+E 3 Modules Magnesium |
| SKU/Reference | 572634 |
| EAN Code | 3245065726343 |
| Socket Type | American Type (NEMA 5-15) Type B |
| Number of Outlets | 2 socket outlets |
| Module Configuration | 3 modules |
| Rated Current | 15 Amperes |
| Rated Voltage | 127 Volts AC |
| Frequency Range | 50-60 Hz |
| Contact Configuration | 2P+E (2 Pole + Earth) x 2 |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4 mm² |
| Cable Type Compatibility | Flexible or rigid |
| Material | Thermoplastic (Halogen-free) |
| Color | Magnesium Grey |
| Surface Finish | Matt Lacquered |
| Protection Degree (IP Rating) | IP40 |
| Impact Strength (IK Rating) | IK04 |
| Mounting Method | Snap mounting (Module frame) |
| Assembly Type | Basic element with central cover plate |
| Device Width | 45 mm |
| Device Height | 67.5 mm |
| Device Depth | 35.2 mm |
| Built-in Depth | 26.7 mm |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Loop-Through Function | Yes |
| Enhanced Contact Protection | No |
| Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Function Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Miniature Fuse | No |
| USB Ports | None (0 USB-A, 0 USB-C) |
| Antimicrobial Treatment | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Manufacturer | Legrand |
| Brand | Arteor™ (International) |
| Compliance Standards | RoHS Directive, International Safety Standards |
| Voltage Type | Alternating Current (AC) |
| Power Delivery | No |
| Concurrently Switching Neutral Conductor | No |
| Protective Contact Type | Other (Earth/Ground) |
| Active Flat Contacts | 4 |
| Number of Phases | 1 |
| Insulated Mounting | No |
