Shop Legrand Arteor French Socket 2P Shuttered 10/16A 2 Modules Champagne | 571086 In Iraq Best Prices
Premium French standard socket with 2P shuttered design for child safety, 10/16A rating, featuring advanced contact protection and elegant Champagne titanium finish.

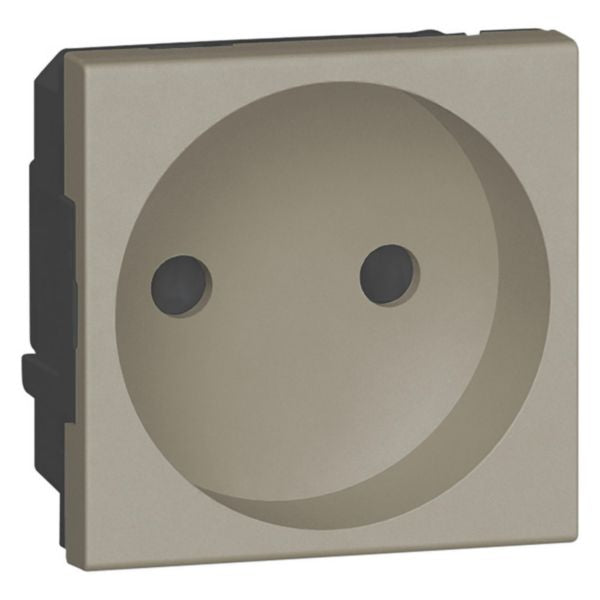

The Arteor™ French Standard Socket is a premium wiring device designed for modern residential and commercial installations. This 2-module socket outlet features advanced child safety protection with shuttered contacts, preventing accidental contact with live parts. The socket is rated for 10/16 A at 250V AC, making it suitable for standard household appliances and equipment. With its elegant Champagne titanium finish, this socket combines aesthetic appeal with robust functionality, featuring enhanced contact protection and a durable thermoplastic construction that is halogen-free for environmental safety.
This socket outlet is manufactured according to French standard specifications (CEE 7/1 unearthed) and is fully compatible with Arteor international mounting systems. The device features screw terminal connections that accept flexible or rigid cables from 4-4 mm² cross-section, ensuring secure and reliable electrical connections. The socket is designed for module frame mounting with snap engagement fastening, allowing for easy installation and replacement. With an operating temperature range of -5 to 50°C and storage capability from -10 to 70°C, this socket maintains performance across varying environmental conditions.
The Arteor™ socket is engineered with loop-through functionality, allowing multiple devices to be connected in series for flexible circuit design. Its IP40 protection rating and IK04 impact strength rating ensure durability in typical indoor environments. The matte lacquered finish provides both aesthetic sophistication and practical protection against dust and minor impacts. This product is RoHS compliant and comes with comprehensive technical documentation, making it an ideal choice for professionals seeking reliable, code-compliant electrical solutions.
Key Features
- Child safety shuttered contacts preventing accidental electrical contact
- French standard CEE 7/1 unearthed socket configuration
- Enhanced contact protection for increased durability and safety
- Elegant Champagne titanium matte lacquered finish
- Loop-through functionality for series circuit connections
- Halogen-free thermoplastic construction for environmental safety
- IP40 protection rating suitable for indoor installations
- IK04 impact strength rating for robust performance
- Screw terminal connections accepting 4-4 mm² cable sections
- Module frame mounting with snap engagement fastening
Technical Specifications
| Specification |
Value |
| Product Model | Arteor™ Socket - French Standard |
| Reference Number | 571086 |
| EAN Code | 3414971852228 |
| Socket Standard | CEE 7/1 Unearthed (French Standard) |
| Number of Modules | 2 modules |
| Rated Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Number of Active Contacts | 1 round contact |
| Contact Protection | Shuttered with enhanced protection |
| Connection Type | Screw terminal |
| Cable Section Range | 4-4 mm² |
| Cable Type | Flexible or rigid |
| Mounting Method | Module frame with snap engagement |
| Material | Thermoplastic |
| Material Quality | Halogen-free thermoplastic |
| Color | Champagne titanium |
| Surface Finish | Matt lacquered |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 37 mm |
| Built-in Depth | 28 mm |
| Operating Temperature Range | -5 to +50 °C |
| Storage Temperature Range | -10 to +70 °C |
| Loop-Through Function | Yes |
| Antimicrobial Treatment | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| RoHS Compliance | Yes |
