Shop Legrand Arteor British Standard 13A Switched Socket Outlet White | 572130 In Iraq Best Prices
Premium British Standard 13A switched socket outlet with child safety shuttering, ASTA certified, 3-module design, IP20 protection, and halogen-free construction for modern residential and commercial applications.

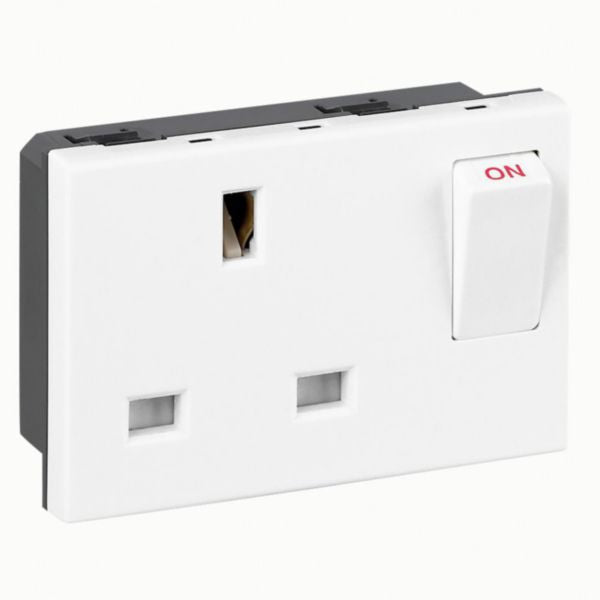

The Legrand Arteor™ Socket is a premium British Standard BS 1363 compliant 13A switched power outlet designed for modern residential and commercial applications. This sophisticated white socket features advanced child safety shuttering technology and meets ASTA licensing requirements for enhanced protection. The socket is engineered with a 2P+E (two poles plus earth) configuration, providing secure grounding for all connected devices. With its sleek 3-module design, this outlet seamlessly integrates into contemporary interior spaces while maintaining the highest safety and performance standards.
This switched socket outlet delivers reliable power distribution with a nominal current capacity of 13 amperes at 250 volts, supporting both 50-60 Hz frequencies for universal compatibility. The device features enhanced contact protection and a loop-through function, allowing for convenient daisy-chaining of multiple outlets. The thermoplastic construction is halogen-free, making it environmentally responsible and suitable for sensitive applications. The white finish with glossy surface treatment provides an elegant aesthetic that complements any décor scheme.
The Arteor™ socket is built to rigorous international standards with an IP20 degree of protection and IK04 impact resistance rating. It operates reliably across a wide temperature range from -5°C to 50°C, ensuring consistent performance in various environmental conditions. The screwed terminal connection type accommodates flexible or rigid cable sections from 4-4 mm², providing installation flexibility. This comprehensive solution represents Legrand's commitment to delivering superior electrical infrastructure components that prioritize safety, functionality, and design excellence.
Key Features
- British Standard BS 1363 Part 2 compliant with ASTA licence certification
- Advanced child safety shuttering technology for enhanced protection
- 2P+E switched configuration with 13A capacity at 250V
- Halogen-free thermoplastic construction with glossy white finish
- Enhanced contact protection with loop-through function for daisy-chaining
- IP20 degree of protection with IK04 impact resistance rating
- Wide operating temperature range -5°C to 50°C for reliable performance
- Supports both 50-60 Hz frequencies for universal compatibility
- 3-module design for seamless integration into contemporary spaces
- Screwed terminal connection accommodating 4-4 mm² cable sections
Technical Specifications
| Specification |
Value |
| Product Name | Arteor™ Socket - BS 1363 - 13 A - 2P+E switched - 3 modules - White |
| Reference Number | 572130 |
| EAN Code | 3245065721300 |
| Standard | British Standard BS 1363 Part 2 |
| Certification | ASTA licence certified |
| Socket Configuration | 2P+E (2 poles + earth) switched |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Modules | 3 modules |
| Number of Socket Outlets | 1 |
| Socket Type | Flat contacts with enhanced protection |
| Material | Thermoplastic (halogen-free) |
| Colour | White (RAL 9003) |
| Surface Finish | Glossy |
| Device Width | 67.5 mm |
| Device Height | 45 mm |
| Device Depth | 34 mm |
| Built-in Depth | 46.2 mm |
| Degree of Protection | IP20 |
| Impact Resistance | IK04 |
| Operating Temperature | -5°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² (flexible or rigid) |
| Voltage Type | AC (Alternating Current) |
| Child Safety | Shuttered for child safety |
| Switch Function | On/Off with white operator |
| Loop Through Function | Yes |
| Mounting Method | Module frame |
| Fastening Type | Mounting with screw |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Power Delivery | No |
| Warranty | Covered by Legrand manufacturer warranty |
Order Legrand Arteor British Standard 13A Switched Socket Outlet White | 572130 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
