Shop Legrand Arteor British Standard Socket 13A 2P+E White | 572111 In Iraq Best Prices
Premium British Standard socket outlet with 13A capacity, enhanced child safety shutters, ASTA certification, and modern white finish for residential and commercial applications.

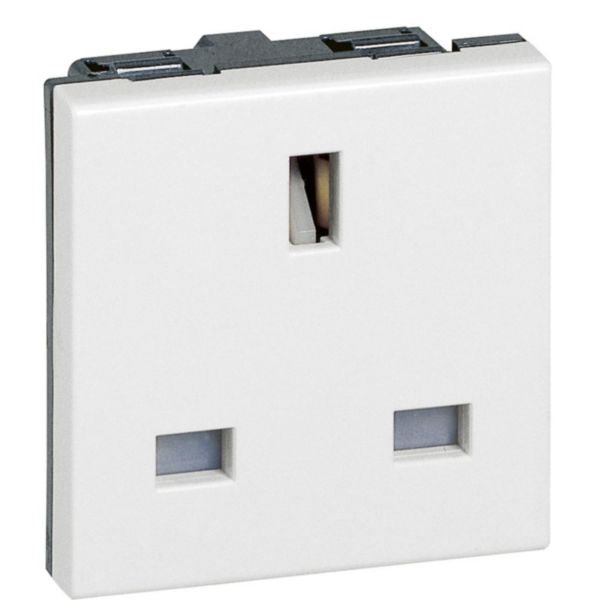

The Arteor™ Socket BS 1363 13A 2P+E in white is a premium British Standard electrical socket outlet designed for residential and commercial applications. This shuttered socket outlet complies with BS 1363 Part 2 standards and features enhanced child safety protection through its shuttered design. The socket is manufactured by Legrand, a leading global provider of electrical and digital building infrastructure solutions, and carries ASTA certification for quality assurance.
This 2-module socket outlet is constructed from high-quality thermoplastic material and features a glossy white finish (RAL 9003) that complements modern interior designs. The socket provides a nominal current rating of 13 amperes at 250 volts with 50-60 Hz frequency compatibility. It features flat protective contacts and is equipped with enhanced contact protection for maximum safety and durability. The device measures 45mm width and height with a 30mm depth, making it suitable for standard installation in module frames.
The Arteor socket outlet is designed with loop-through functionality, allowing for flexible installation configurations. It features screwed terminal connections compatible with cable sections of 4-4 mm² and supports both flexible and rigid cable connections. With an IP40 degree of protection and IK04 impact strength rating, this socket is suitable for general indoor applications. The operating temperature range of -5 to 50°C ensures reliable performance in various environmental conditions. This product is halogen-free, RoHS compliant, and meets REACH regulatory requirements, making it an environmentally responsible choice for modern electrical installations.
Key Features
- BS 1363 Part 2 compliant British Standard socket with ASTA certification
- Shuttered design for enhanced child safety protection against accidental contact
- 13 Ampere capacity at 250 volts with 50-60 Hz frequency compatibility
- Halogen-free thermoplastic construction with glossy white finish (RAL 9003)
- Enhanced contact protection with screwed terminal connections for 4-4 mm² cables
Technical Specifications
| Specification |
Value |
| Product Name | Arteor Socket BS 1363 13A 2P+E 2 Modules White |
| Reference Number | 572111 |
| EAN Code | 3245065721119 |
| Standard | British Standard BS 1363 Part 2 |
| Nominal Current | 13 Amperes |
| Nominal Voltage | 250 Volts |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 socket outlet |
| Protective Contact Type | Flat 2P+E |
| Material | Thermoplastic, Halogen-free |
| Color | White (RAL 9003) |
| Surface Finishing | Glossy |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 30 mm |
| Built-in Depth | 21.5 mm |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² |
| Cable Nature | Flexible or rigid |
| Degree of Protection | IP40 |
| Impact Strength | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Mounting Method | Module frame snap mounting |
| Child Safety | Shuttered design with enhanced contact protection |
| Loop Through Function | Yes |
| Certification | ASTA certified, RoHS compliant, REACH compliant |
| Voltage Type | AC (Alternating Current) |
| Assembly Arrangement | Basic element with full cover plate |
Order Legrand Arteor British Standard Socket 13A 2P+E White | 572111 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
