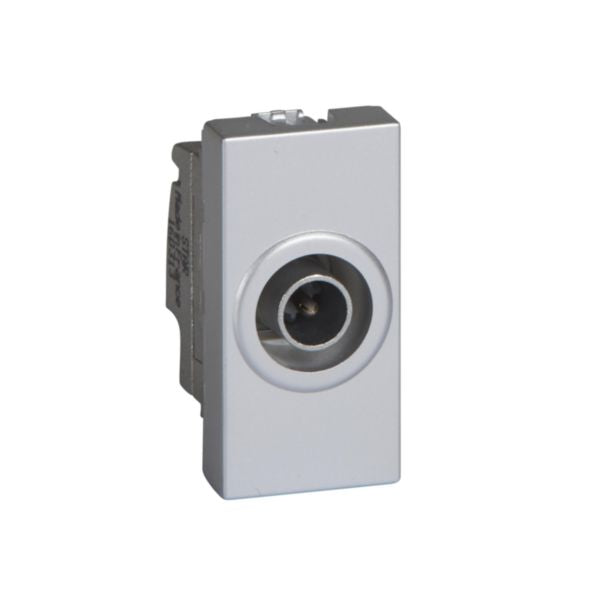

Shop Legrand Arteor Single TV Star Socket Male 9.5mm 1 Module Aluminium | 571051 In Iraq Best Prices
Professional Arteor TV star socket with 9.5mm male connector, Class A shielding, UHD compatible, LTE ready, 1dB low attenuation, aluminium finish, compliant with EN 50083 standards
The Arteor Single TV Star Socket Male 9.5mm is a professional-grade television outlet designed for modern broadcast and satellite installations. This 1-module device features a shielded star socket configuration that ensures optimal signal quality for DVBT, Cablecast, and satellite reception. The socket is fully UHD TV quality compatible and LTE ready with 4G protection, making it suitable for contemporary broadcasting standards. The male connector (9.5 mm) operates across the TV frequency range of 5-68/120-862 MHz, while the R female connector covers 87.5-108 MHz, and the SAT F-type connector handles 950-2400 MHz frequencies.
Manufactured by Legrand under the Arteor brand, this television socket incorporates Class A shielding technology to minimize electromagnetic interference and ensure superior signal reception. The device meets both EN 50083-4 and EN 50083-2 European directives, guaranteeing compliance with international broadcasting standards. With a low attenuation rate of 1dB at TV frequencies, this socket maintains signal integrity over extended cable runs. The aluminium finish provides excellent durability and aesthetic appeal, while the thermoplastic construction ensures long-term reliability in various environmental conditions.
The socket features a modular design that integrates seamlessly with Arteor's comprehensive wiring system. It includes rocker plates and requires support frames and mounting plates for installation. The recommended coaxial cable is 17 VATCA for optimal performance. This single-outlet configuration uses star cabling topology, where each socket connects directly to the antenna, splitter, or multiswitch, allowing for visual verification of connections. The device operates reliably across temperatures from 5-45°C and offers an IP20 protection rating with IK04 impact resistance.
Key Features
- Class A Shielded Star Socket - Minimizes electromagnetic interference and ensures superior signal reception for optimal TV viewing experience
- UHD TV Quality Compatible - Supports modern ultra-high-definition television broadcasting standards for future-proof installation
- LTE Ready with 4G Protection - Provides protection against 4G LTE interference to maintain signal integrity in modern wireless environments
- Low Attenuation Design - Features only 1dB attenuation at TV frequencies, maintaining signal strength over extended cable runs
- Multi-Frequency Support - Handles TV (5-68/120-862 MHz), R (87.5-108 MHz), and SAT (950-2400 MHz) frequencies for comprehensive broadcast coverage
- EN 50083 Compliant - Meets both EN 50083-4 and EN 50083-2 European broadcasting directives for international standards compliance
- Star Cabling Topology - Each socket connects directly to antenna, splitter, or multiswitch with visual connection verification
- Durable Aluminium Finish - Provides excellent durability, corrosion resistance, and professional aesthetic appeal
Technical Specifications
| Specification |
Value |
| Product Type | Single TV Star Socket |
| Connector Type | Male 9.5mm (TV), Female 9.5mm (R), F-type (SAT) |
| Number of Modules | 1 module |
| Frequency Range - TV | 5-68/120-862 MHz |
| Frequency Range - R | 87.5-108 MHz |
| Frequency Range - SAT | 950-2400 MHz |
| Attenuation at 860 MHz | 1.5 dB |
| Attenuation at 2150 MHz | 2 dB |
| Number of Outlets | 3 |
| Mounting Method | Module frame with rocker plates |
| Colour | Aluminium |
| Material | Thermoplastic |
| Surface Finishing | Matt lacquered |
| Halogen Free | Yes |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33 mm |
| Minimum Built-in Box Depth | 40 mm |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| Remote Power Supply Compatibility | Yes |
| Cable Modem Compatibility | No |
| Recommended Coaxial Cable | 17 VATCA |
| Cabling Topology | Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch) |
| Standards Compliance | EN 50083-4, EN 50083-2 |
| Shielding Class | Class A |
| UHD TV Compatibility | Yes |
| LTE Ready | Yes |
| Reference Number | 571051 |
| EAN Code | 3414970925664 |
