Shop Legrand Arteor Single TV Star Socket F Type 1 Module Champagne | 570050 In Iraq Best Prices
Premium Legrand Arteor single TV star socket with F-type connector, 1 dB low attenuation, UHD compatible, LTE ready with 4G protection, champagne finish, meets EN 50083 standards.

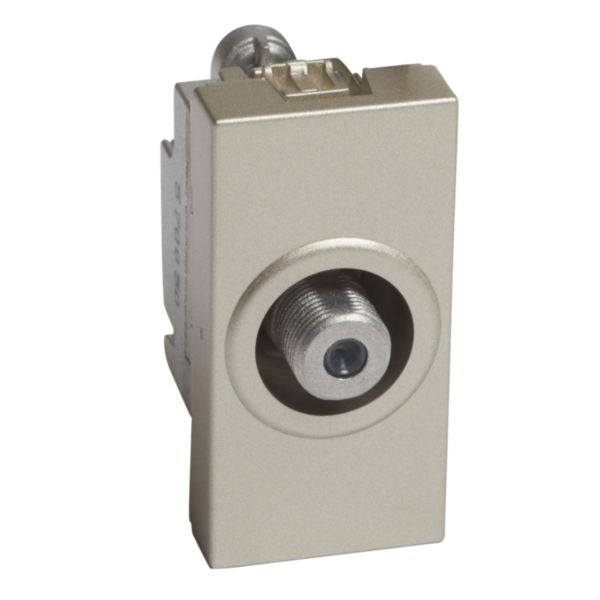

The Legrand Arteor Single TV Star Socket F Type is a premium television outlet designed for modern home and commercial installations. This 1-module device features a champagne finish and is specifically engineered for DVB-T, cable, and satellite television reception with UHD TV quality compatibility. The socket utilizes a shielded star cabling architecture where each socket connects directly to an antenna, splitter, or multiswitch via a single dedicated coaxial cable, ensuring optimal signal quality and minimal interference.
This television socket is equipped with an F-type connector rated for 950-2400 MHz satellite reception and features low attenuation performance with only 1 dB loss at 860 MHz and 1.5 dB loss at 2150 MHz. It meets the stringent European standards EN 50083-4 and EN 50083-2, ensuring compliance with international broadcasting regulations. The socket is LTE ready with 4G protection, making it suitable for modern telecommunications environments. The halogen-free construction ensures environmental safety and compliance with RoHS directives.
The device features a compact design with dimensions of 45mm width and height by 33mm depth, making it ideal for integration into standard electrical installations. It operates reliably across a temperature range of 5-45°C and includes an IP20 protection rating with IK04 impact strength rating. The Arteor mechanism is supplied with rocker plates and requires support frames and plates for installation, offering flexibility in design and aesthetic choices.
Key Features
- F-type connector for satellite reception 950-2400 MHz
- UHD TV quality compatible for modern broadcasting standards
- Low attenuation design with 1 dB loss at 860 MHz
- LTE ready with 4G protection for interference prevention
- Star cabling architecture with visual connection check capability
- Halogen-free construction for environmental compliance
- Meets EN 50083-4 and EN 50083-2 European standards
- Single dedicated coaxial cable per socket for optimal signal quality
- IP20 protection rating with IK04 impact strength
- Champagne finish with elegant aesthetic design
Technical Specifications
| Specification |
Value |
| Product Name | Arteor Single TV Star Socket F Type 1 Module Champagne |
| SKU/Reference | 570050 |
| EAN Code | 3414970924346 |
| Manufacturer | Legrand |
| Socket Type | TV Star Socket F Type |
| Number of Modules | 1 module |
| Number of Outlets | 1 outlet |
| Connector Type | F-type connector (9.5 mm) |
| Frequency Range - TV | 5-68 MHz and 120-862 MHz |
| Frequency Range - Satellite | 950-2400 MHz |
| Frequency Range - Radio | 87.5-108 MHz |
| Tap Loss at 860 MHz | 1 dB |
| Tap Loss at 2150 MHz | 1.5 dB |
| Mounting Method | Module frame |
| Assembly Arrangement | Basic element with central cover plate |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33 mm |
| Minimum Built-in Installation Box Depth | 40 mm |
| Operating Temperature Range | 5-45 °C |
| Storage Temperature Range | -25-70 °C |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Suitable for Cable Modem | No |
| Suitable for Remote Power Supply | Yes |
| DAB+ Compatible | No |
| Finish Color | Champagne |
| European Standards Compliance | EN 50083-4 and EN 50083-2 |
| LTE Ready | Yes |
| 4G Protection | Yes |
| UHD TV Compatible | Yes |
| Signal Quality Architecture | Star cabling with visual connection check |
| Recommended Coaxial Cable | 17 VATCA |
| Installation Type | Flush-mounted with support frames and rocker plates |
