Shop Legrand Arteor Single Pole Socket BS 1363 13A Switched Magnesium | 572643 In Iraq Best Prices
Premium British Standard 13A switched socket outlet with child safety shutters, magnesium finish, and ASTA certification. Features enhanced contact protection, loop-through functionality, and halogen-free construction for modern residential and commercial applications.

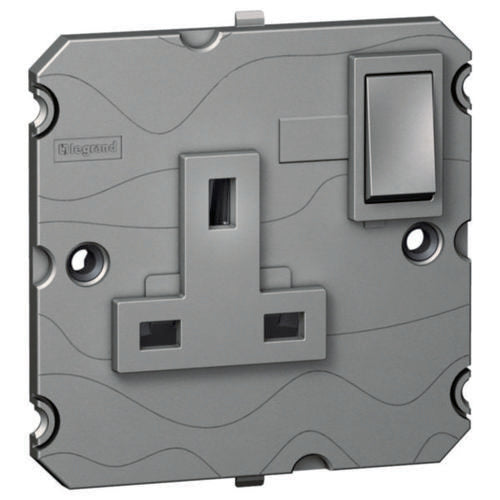

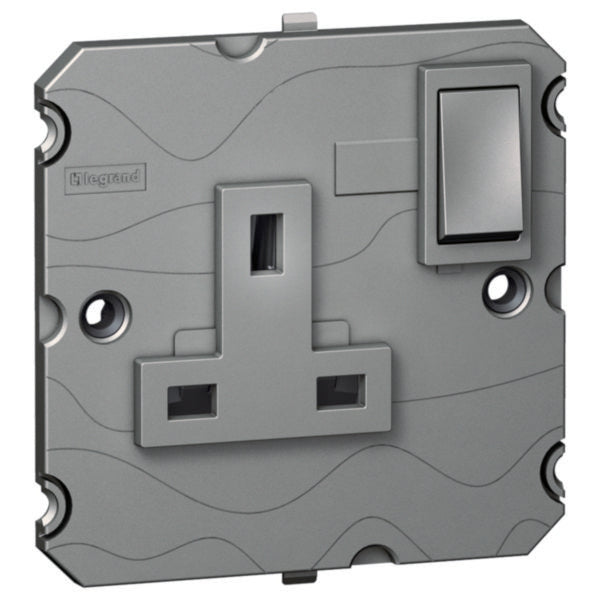

The Arteor™ Single Pole Socket is a premium British Standard electrical outlet designed for modern residential and commercial applications. This 13A, 250V~ switched socket outlet conforms to BS 1363 Part 2 specifications and features enhanced child safety with shuttered design. The socket is manufactured with high-quality thermoplastic material in elegant magnesium color, providing both durability and aesthetic appeal for contemporary interior designs.
This switched socket outlet is engineered with advanced contact protection and screwed terminal connections, accommodating cable sections from 4-4mm². The device features a robust construction with IP20 protection rating and IK04 impact strength rating, making it suitable for various mounting applications. With loop-through functionality, the Arteor socket allows for convenient daisy-chain installation in multi-outlet configurations, simplifying electrical installations in homes and offices.
The product holds ASTA license certification and complies with international safety standards. It features a 2-module design with full cover plate assembly, requiring no additional support frame. Operating temperature range of -5 to 50°C ensures reliable performance across diverse climate conditions. The halogen-free construction and environmentally conscious design make this socket outlet an excellent choice for sustainable building projects.
Key Features
- British Standard BS 1363 Part 2 compliant with ASTA license certification
- Child safety shuttered design with enhanced contact protection
- 13A, 250V~ single pole socket with switched outlet functionality
- Loop-through wiring capability for convenient daisy-chain installation
- Halogen-free thermoplastic construction with magnesium finish
- IP20 protection rating and IK04 impact strength for durability
- Screwed terminal connections accommodating 4-4mm² cable sections
- Operating temperature range -5 to 50°C for reliable performance
- 2-module design with full cover plate assembly
- No additional support frame required for installation
Technical Specifications
| Specification |
Value |
| Product Model | Arteor™ Single Pole Socket - British Standard |
| Standard Compliance | BS 1363 Part 2 |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V~ |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Socket Type | Single pole with 2P+E switched outlet |
| Number of Active Contacts (Flat) | 2 |
| Protective Contact Type | Flat |
| Voltage Type | AC |
| Concurrently Switching Neutral | No |
| Socket Outlets Switchable | 1 |
| Number of Phases | 1 |
| Number of Modules | 2 |
| Assembly Arrangement | Basic element with full cover plate |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4 mm² |
| Cable Nature | Flexible or rigid |
| Material | Thermoplastic |
| Material Quality | Halogen free |
| Color | Magnesium grey |
| Surface Finishing | Matt lacquered |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Device Width | 83.55 mm |
| Device Height | 78.5 mm |
| Device Depth | 19.9 mm |
| Built-in Depth | 30.95 mm |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5 to 50 °C |
| Storage Temperature Range | -10 to 70 °C |
| Child Safety Feature | Shuttered design |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| On/Off Switch | Yes |
| With Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Certification | ASTA licence |
| Reference Number | 572643 |
| EAN Code | 3245065726435 |
