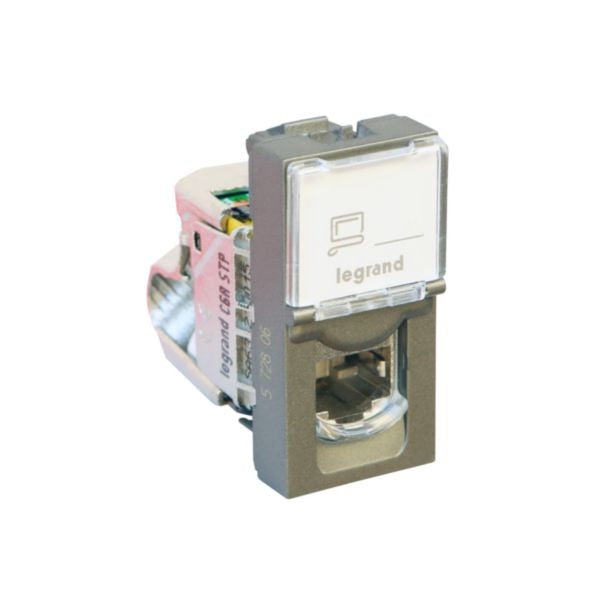

Shop Legrand Arteor RJ45 Socket Category 6A STP 1 Module Magnesium | 572806 In Iraq Best Prices
Professional Category 6A STP RJ45 socket with advanced metal shielding, quick toolless connection, and international standard compliance for high-speed network installations.
The Legrand Arteor RJ45 Socket Category 6A STP is a professional-grade network outlet designed for high-speed data transmission in modern building infrastructure. This shielded twisted pair (STP) connector features advanced metal shielding technology that provides superior electromagnetic interference (EMI) protection, making it ideal for demanding networking applications. The socket is compliant with international standards including ISO/IEC 11801, EN 50173, and ANSI/TIA 568, ensuring reliable performance and compatibility across global installations.
This 1-module Arteor socket is engineered with quick toolless connection capabilities, allowing for faster installation without requiring specialized tools. The connector accepts single-core cables from AWG 22 to AWG 26, as well as AWG 26 multicore cables, providing flexibility in cable management. The magnesium finish delivers a modern aesthetic while maintaining durability and professional appearance suitable for contemporary office and commercial environments.
The RJ45 socket features T568A and B marking with color codes for simplified installation and maintenance. It supports Category 6A performance with an 8-position 8-contact (8P8C) configuration, delivering speeds up to 10 Gigabit Ethernet. The device includes a dust cover for protection when not in use and label space for organization. With its IP20 protection rating and IK03 impact resistance, this socket is built to withstand typical commercial installation conditions while maintaining long-term reliability.
Key Features
- Category 6A STP shielded twisted pair technology with superior EMI protection
- Quick toolless connection system for faster professional installation
- Compliant with ISO/IEC 11801, EN 50173, and ANSI/TIA 568 international standards
- Supports AWG 22-26 single-core and AWG 26 multicore cable compatibility
- T568A and T568B color-coded marking for simplified setup and maintenance
- Integrated dust cover and label space for organization and protection
- IP20 protection rating with IK03 impact resistance for commercial durability
- 10 Gigabit Ethernet performance capability with 8P8C connector configuration
- Magnesium finish for modern aesthetic and professional appearance
- Flush-mounted installation compatible with Arteor support frames and plates
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category | Category 6A (IEC) |
| Connector Type | RJ45 8P8C (8-position 8-contact) |
| Shielding | STP (Shielded Twisted Pair) with metal shielding |
| Connection Method | Insulation Displacement Connector (IDC) with toolless connection |
| Cable Compatibility | Single-core AWG 22-26, Multicore AWG 26 |
| Color Coding | T568A and T568B marking with color codes |
| Number of Modules | 1 module |
| Color | Magnesium |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 39.5 mm |
| Built-in Depth | 31 mm |
| Maximum Cable Diameter | 9 mm |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Type | Engage (snap) |
| Assembly Arrangement | Basic element with central cover plate |
| Outlet Direction | Straight |
| Dust Cover | Yes |
| Label Space | Yes |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801, EN 50173, ANSI/TIA 568 |
| Legrand Cabling System | LCS³ Cat. 6A |
| SKU | 572806 |
| EAN | 3245065728064 |
