Shop Legrand Arteor RJ45 Cat 6 UTP Socket 1 Module Soft Alu Orange | 572873 In Iraq Best Prices
Professional RJ45 Cat 6 UTP network socket with 1 GigaBit/s data rate, orange dust cover, toolless installation, and PoE support for residential and commercial applications.

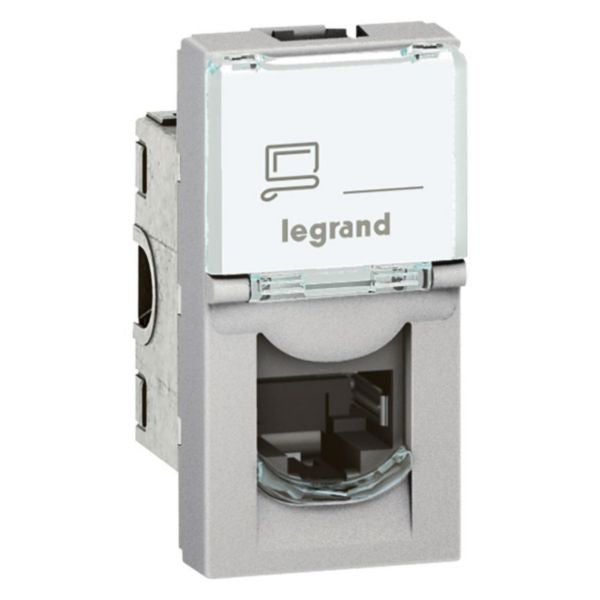

The Legrand Arteor RJ45 socket category 6 UTP is a professional-grade network connectivity solution designed for modern residential and commercial installations. This 1-module flush-mounted outlet delivers data transmission speeds up to 1 GigaBit/s, making it ideal for high-speed internet applications, streaming, online gaming, and professional networking requirements. The socket features a soft aluminum finish with an integrated orange protective dust cover that safeguards the connector from debris and environmental contaminants.
Equipped with advanced toolless connector technology and integrated crimping, this RJ45 outlet ensures quick and reliable installation without specialized tools. The device supports high-capacity Power over Ethernet (PoE) applications, enabling simultaneous transmission of both data and electric power through twisted pair Ethernet cabling. Compatible with RJ11, RJ12, and RJ45 plugs, this versatile solution accommodates various connectivity needs in residential, commercial, and hospitality environments.
The Arteor RJ45 socket conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring compliance with global networking specifications. With its slot system for perfect multigang configuration, the outlet can be installed in standard flush-mounting boxes without requiring additional wall modifications. The device operates reliably across a wide temperature range (-40°C to +70°C) and features IP20 protection rating with IK04 impact resistance.
Key Features
- 1 GigaBit/s data transmission rate for fast and reliable network connectivity
- Category 6 UTP certified for high-speed data applications and streaming
- Integrated orange protective dust cover safeguarding the connector
- Toolless connector with integrated crimping for quick installation
- Power over Ethernet (PoE) support for simultaneous data and power transmission
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity
- Soft aluminum finish with professional appearance for modern installations
- Flush-mounted 1-module design for standard wall installation
- Slot system for perfect multigang configuration without wall modifications
- ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C compliant
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket Category 6 UTP |
| Reference Number | 572873 |
| EAN Code | 3414971918108 |
| Brand | Legrand Arteor |
| Data Rate | Up to 1 GigaBit/s |
| Category | Category 6 (Cat 6) |
| Connector Type | RJ45 8(8) |
| Number of Modules | 1 module |
| Finish Color | Soft Aluminum with Orange Shutter |
| Connection Type | Insulation Displacement Connector (IDC) |
| Installation Method | Flush-mounted |
| Mounting Type | Engage (snap) fastening |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Dust Cover | Yes - Orange protective cover |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Terminal Marking Indication | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Compatible with Third-party Covers | Yes |
| Outlet Direction | Straight |
| Mechanical Coding | No |
| Colour Coding | Yes |
| With Terminal Resistor | No |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Suitable Applications | Commercial and residential installations, PoE applications |
| Installation Features | Toolless connector with quick integrated crimping |
| Power over Ethernet Support | Yes - High capacity PoE applications supported |
Order Legrand Arteor RJ45 Cat 6 UTP Socket 1 Module Soft Alu Orange | 572873 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
