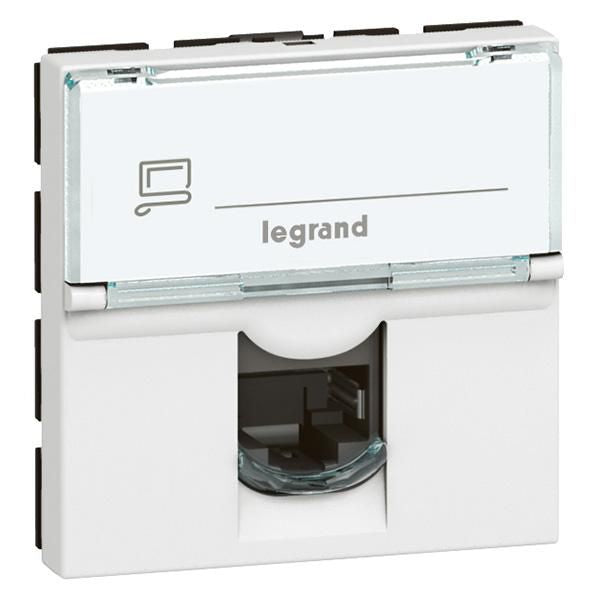

Shop Legrand Arteor RJ45 Socket Category 6 STP 2 Modules Square White | 572317 In Iraq Best Prices
Professional RJ45 Category 6 STP socket with 1 GigaBit/s data transmission, PoE support, toolless installation, and transparent dust cover protection for residential and commercial networking applications.
The Arteor RJ45 Socket Category 6 STP is a professional-grade network connectivity solution designed for high-speed data transmission in residential and commercial installations. This 2-module square white socket supports data rates up to 1 GigaBit/s, enabling rapid file downloads and seamless streaming experiences. The socket features shielded twisted pair (STP) technology with insulation displacement connectors for reliable and secure connections. Equipped with a transparent protective dust cover, this device ensures long-term durability and maintains connection integrity in various installation environments.
The socket is engineered with advanced PoE (Power over Ethernet) support capabilities, allowing simultaneous transmission of electrical power and data signals across a single twisted pair cable. This innovative feature eliminates the need for separate power lines, simplifying installation while reducing infrastructure costs. The toolless connector design with integrated crimping technology enables quick and effortless installation without specialized equipment. Compatible with standard RJ11, RJ12, and RJ45 plugs, this socket provides exceptional versatility for diverse networking applications.
Designed for flush-mounted, duct, and floor box installations, the Arteor RJ45 socket conforms to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C. The device features color coding and label space for easy identification and organization. With an operating temperature range of -40 to 70°C and exceptional mechanical robustness (IK03 impact strength), this socket delivers reliable performance in demanding environments. The slot system enables perfect multigang configurations, allowing seamless integration into modern electrical installations without requiring additional wall modifications.
Key Features
- RJ45 Category 6 STP with data rates up to 1 GigaBit/s for high-speed connectivity
- Power over Ethernet (PoE) support for simultaneous power and data transmission
- Toolless connector with integrated crimping for quick and easy installation
- Transparent protective dust cover for enhanced durability and connection integrity
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile networking applications
- Shielded twisted pair (STP) technology with color coding and label space
- Flush-mounted, duct, and floor box installation options for flexible deployment
- Conforms to ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Operating temperature range -40 to 70°C with IK03 impact strength rating
- Slot system enables perfect multigang configurations without wall modifications
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category | Category 6 (Cat 6) |
| Connector Type | RJ45 8(8) with Insulation Displacement Connector |
| Shielding | Shielded Twisted Pair (STP) |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Color | White (RAL 9003) |
| Device Dimensions | 45mm (W) x 45mm (H) x 39.5mm (D) |
| Built-in Depth | 31mm |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Maximum Input Cable Diameter | 9mm |
| Installation Type | Flush-mounted, Duct, Floor box installation |
| Mounting Method | Engage (snap) fastening |
| Connection Type | Toolless with integrated crimping |
| Dust Cover | Yes - Transparent protective cover included |
| PoE Support | Yes - High capacity Power over Ethernet |
| Compatibility | Compatible with RJ11, RJ12, and RJ45 plugs |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Halogen Free | Yes |
| Color Coding | Yes - with label space |
| Mechanical Coding | No |
| Terminal Marking | Yes - Terminal marking indication included |
| Suitable for Connectors | 1 connector per socket |
| Assembly Arrangement | Basic element with central cover plate |
| Reference Number | 572317 |
| EAN Code | 3245065723175 |
