Shop Legrand Arteor RJ45 Socket Category 5e UTP 2 Modules LCS Soft Alu | 572898 In Iraq Best Prices
Professional RJ45 Category 5e UTP network socket with 2 modules, featuring toolless connection, PoE support, and soft aluminum design for residential and commercial installations.

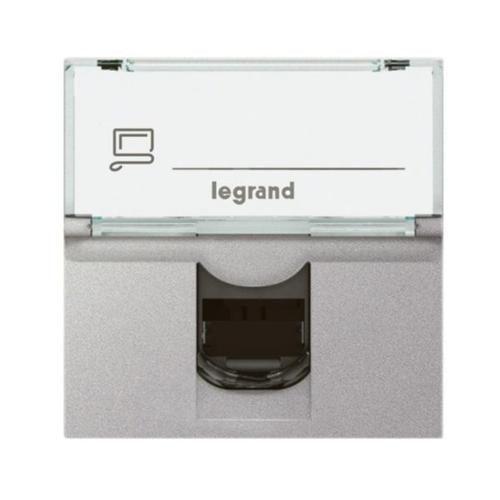

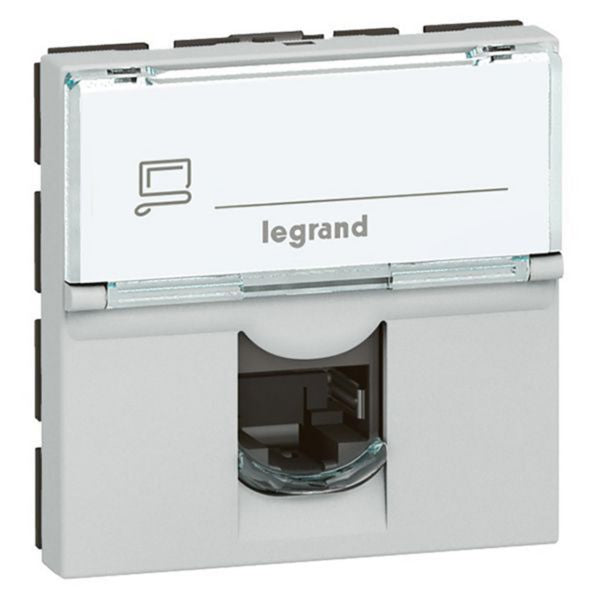

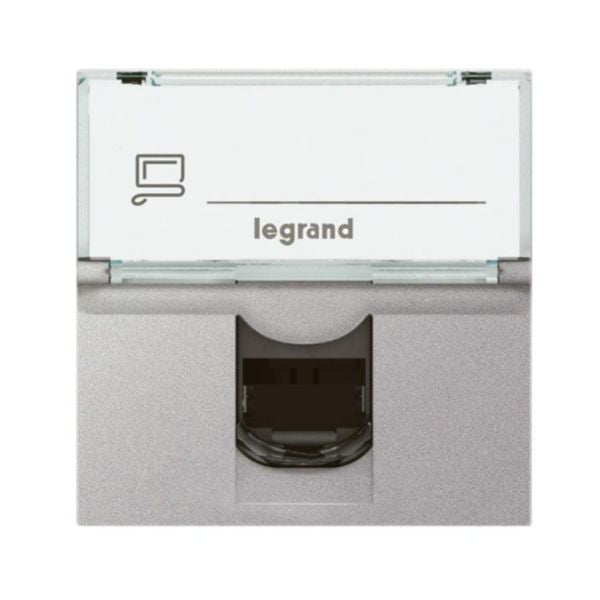

The Arteor RJ45 Socket Category 5e UTP 2 Modules LCS Square Soft Alu is a professional-grade network connectivity solution designed for modern residential and commercial installations. This dual-module outlet delivers high-speed data transmission capabilities with support for up to 1 GigaBit/s data rates, making it ideal for demanding applications including streaming, online gaming, and large file downloads. The socket features a sophisticated soft aluminum finish that complements contemporary interior designs while maintaining exceptional durability and performance standards.
This RJ45 connector is engineered with toolless quick-connection technology, featuring integrated crimping that eliminates the need for specialized installation tools. The transparent protective dust cover ensures connector integrity during installation and storage, while the innovative slot system enables perfect multigang configurations. The outlet is fully compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing exceptional versatility for various networking requirements. Its support for high-capacity Power over Ethernet (PoE) applications allows simultaneous transmission of electrical power and data across twisted pair cabling, revolutionizing device connectivity possibilities.
Conforming to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this product represents the pinnacle of network infrastructure reliability. The outlet can be installed in standard flush-mounting boxes, duct systems, or floor boxes without requiring additional wall modifications or complex cabling work. With an IK03 impact resistance rating and operating temperature range from -40°C to 70°C, this socket delivers consistent performance across diverse environmental conditions.
Key Features
- High-speed data transmission up to 1 GigaBit/s for downloads, streaming, and gaming
- Toolless quick-connection technology with integrated crimping for easy installation
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data transmission
- Transparent protective dust cover to safeguard connector integrity
- Universal compatibility with RJ11, RJ12, and RJ45 plugs for maximum versatility
- Slot system enabling perfect multigang configurations without additional wall modifications
- Soft aluminum finish complementing contemporary interior design aesthetics
- Full compliance with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category Rating | Category 5e (Cat 5e) |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Connector Type | RJ45 8(8) |
| Connection Technology | Insulation Displacement Connector (IDC) with toolless quick-connection |
| Shielding | UTP (Unshielded Twisted Pair) |
| Installation Method | Flush-mounted, Duct, Floor box installation compatible |
| Fastening Type | Engage (snap) system |
| Color | Soft Aluminum |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Impact Resistance Rating | IK03 |
| Degree of Protection | IP20 |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Halogen Free | Yes |
| Dust Cover | Transparent protective cover included |
| Outlet Direction | Straight |
| Label Space | Yes |
| Colour Coding | Yes |
| Terminal Marking | Yes |
| Power over Ethernet (PoE) Support | Yes - High capacity PoE applications |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Suitable Applications | Commercial and residential installations, IP phones, analog phones, data transmission |
| Reference Number | 572898 |
| EAN Code | 3414971848559 |
Order Legrand Arteor RJ45 Socket Category 5e UTP 2 Modules LCS Soft Alu | 572898 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
