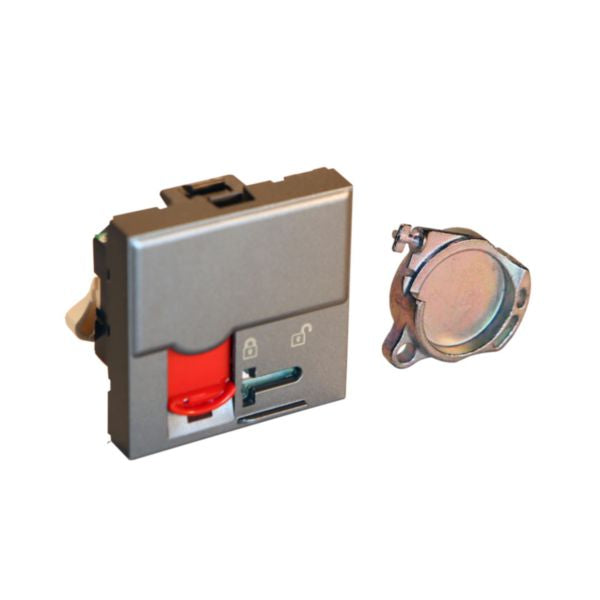

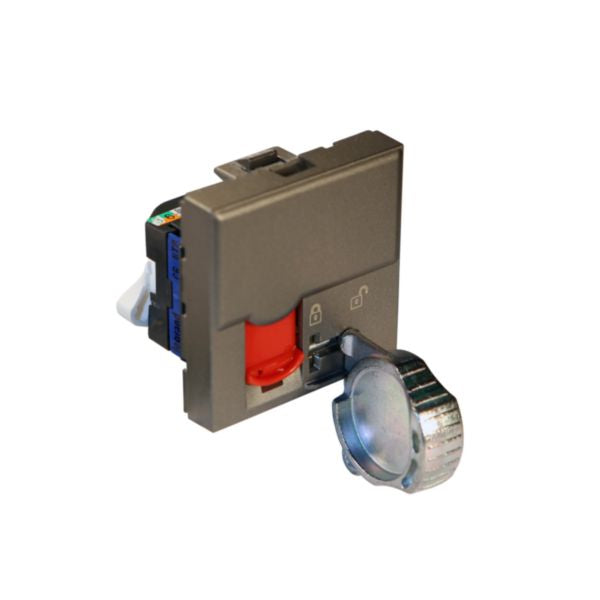

Shop Legrand Arteor RJ45 Socket Category 6 UTP 2 Modules Magnesium Red Shutter | 572853 In Iraq Best Prices
Professional RJ45 Cat 6 UTP socket with 1 GigaBit/s data transmission, toolless connection, key lock security system, and protective red dust cover for secure network connectivity in commercial and residential installations.
The Arteor RJ45 socket controlled access category 6 UTP 2 modules in magnesium with red shutter is a professional-grade network connectivity solution designed for modern commercial and residential installations. This dual-module socket supports high-capacity data transmission with data rates up to 1 GigaBit/s, enabling users to download 1 GigaBytes files in just 8 seconds. The socket features a sophisticated key lock system that secures the connector, preventing accidental damage or unauthorized access while maintaining the integrity of network connections.
Equipped with toolless insulation displacement connectors, this RJ45 socket offers fast and reliable connection without requiring specialized crimping tools. The integrated quick-connection system ensures professional installation in any setting. The socket features a protective red dust cover that shields the connector from environmental contaminants and physical damage. With its magnesium construction and red shutter design, it provides both aesthetic appeal and functional durability for demanding network environments.
This product is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C specifications. The socket is suitable for flush-mounted installation, duct installation, and floor box/subfloor mounting, offering exceptional flexibility in deployment scenarios. Its compatibility with RJ11, RJ12, and RJ45 plugs makes it a versatile solution for various communication needs including IP phones, analog phones, and high-performance data applications requiring low latency for streaming and online gaming.
Key Features
- High-speed data transmission up to 1 GigaBit/s for rapid file downloads and streaming
- Toolless insulation displacement connectors with fast integrated crimping technology
- Key lock security system prevents accidental disconnection and unauthorized access
- Protective red dust cover shields connector from environmental contamination
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- Supports high-capacity Power over Ethernet (PoE) applications for integrated power delivery
- Dual-module design (2 modules) for flexible installation configurations
- Suitable for flush-mounted, duct, and floor box/subfloor installations
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category | Category 6 (Cat 6) |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Color | Magnesium with red shutter |
| Connector Type | RJ45 8(8) |
| Connection Method | Insulation Displacement Connector (IDC) - Toolless |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Mounting Method | Flush-mounted, Duct, Floor box/subfloor |
| Fastening Type | Engage (snap) |
| With Dust Cover | Yes - Red protective dust cover |
| With Key Lock System | Yes |
| Halogen Free | Yes |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Reference Number | 572853 |
| EAN Code | 3245065728538 |
