Shop Legrand Arteor RJ45 Feedthrough Socket Category 5e UTP Magnesium | 572830 In Iraq Best Prices
Professional Category 5e RJ45 feedthrough socket with rear pluggable design, supporting 1 Gigabit data transmission and Power over Ethernet applications. Compliant with ISO/IEC 11801 and ANSI/TIA 568 standards.

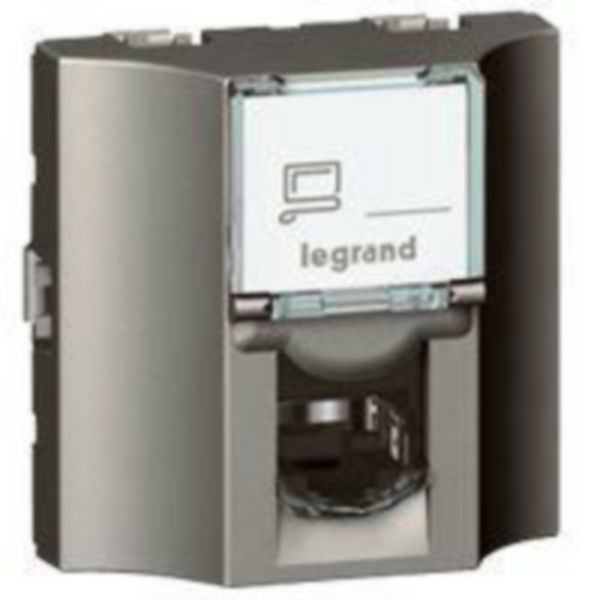

The Arteor RJ45 feedthrough socket is a professional-grade network connectivity solution designed for modern building infrastructure. This Category 5e UTP (Unshielded Twisted Pair) connector supports data transmission rates up to 1 Gigabit per second, enabling rapid file transfers and seamless network performance. The rear pluggable design eliminates the need for complex wiring, allowing quick and reliable connections during installation. The socket features a transparent protective dust cover that safeguards the connector from contamination and damage.
This 2-module device is constructed with magnesium finish and is compliant with ISO/IEC 11801 and ANSI/TIA 568 international standards. It supports high-capacity Power over Ethernet (PoE) applications, enabling the transmission of electrical power alongside data through the same twisted pair cabling. The flush-mounted installation design makes it ideal for residential and commercial building applications. With its insulation displacement connector technology and color coding indicators, installation is straightforward and requires minimal technical expertise.
The product is engineered for versatility, compatible with cords equipped with RJ11, RJ12, or RJ45 plugs. Its 45mm x 45mm dimensions and 25.2mm built-in depth make it suitable for various mounting configurations including flush-mounted boxes, duct installations, and floor box applications. Operating across a wide temperature range of -40°C to 70°C, this socket delivers reliable performance in diverse environmental conditions.
Key Features
- Category 5e UTP connectivity supporting data rates up to 1 Gigabit per second
- Rear pluggable design eliminating complex wiring requirements for quick installation
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data transmission
- Transparent protective dust cover safeguarding connector integrity
- Compatible with RJ11, RJ12, and RJ45 plugs for flexible connectivity options
- Insulation displacement connector technology with color coding indicators
- Flush-mounted, duct, and floor box installation compatibility
- ISO/IEC 11801 and ANSI/TIA 568 international standards compliance
- Wide operating temperature range from -40°C to 70°C
- IP20 degree of protection with IK03 impact strength rating
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Feedthrough Socket |
| Category | Category 5e (Cat 5e) UTP |
| Data Rate | Up to 1 Gigabit per second |
| Connector Type | RJ45 8(8) |
| Connection Method | Insulation Displacement Connector (IDC) |
| Number of Modules | 2 modules |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Built-in Depth | 25.2 mm |
| Installation Type | Flush-mounted, duct, floor box |
| Fastening Type | Engage (snap) |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Shielding | Unshielded (UTP) |
| Dust Cover | Yes, transparent protective cover |
| Color Coding | Yes |
| Terminal Marking | Yes |
| Label Space | Yes |
| Maximum Input Cable Diameter | 9 mm |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801, ANSI/TIA 568 |
| Power over Ethernet Support | Yes, high-capacity PoE applications |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| SKU | 572830 |
| EAN Code | 3245065728309 |
| Finish | Magnesium |
Order Legrand Arteor RJ45 Feedthrough Socket Category 5e UTP Magnesium | 572830 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
