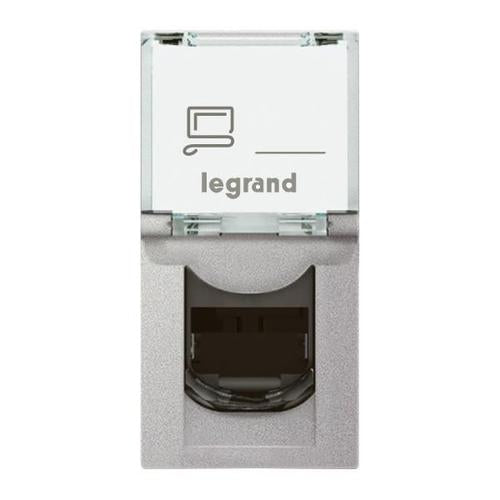

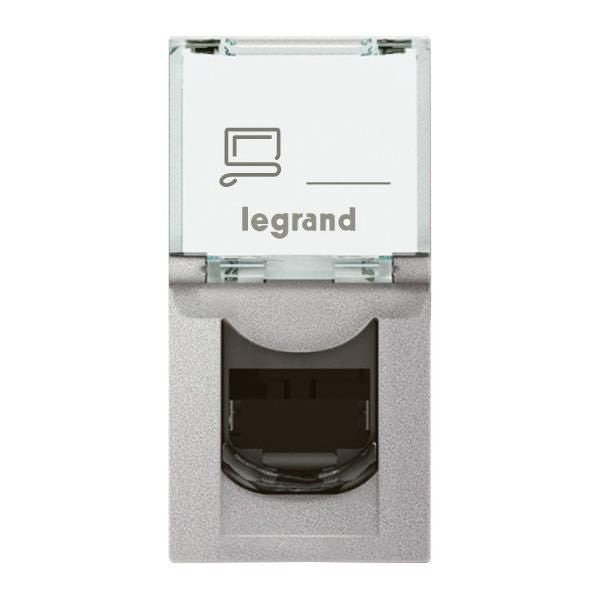

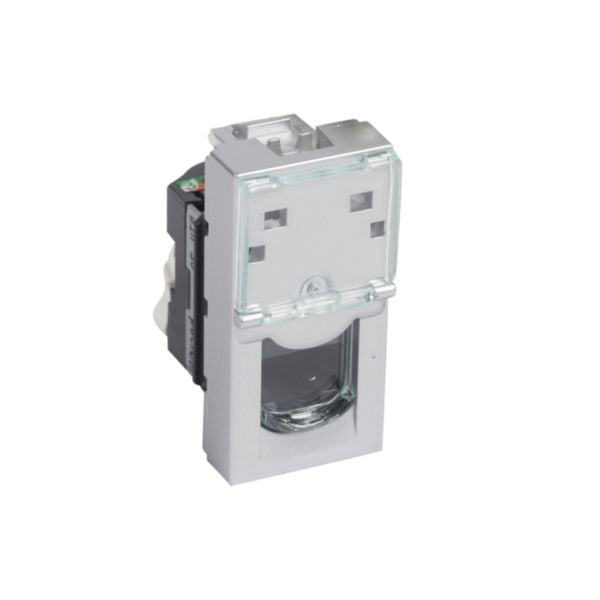

Shop Legrand Arteor RJ45 Category 5e UTP Socket 1 Module Aluminium | 571058 In Iraq Best Prices
Professional RJ45 Category 5e UTP socket with LCS² connector technology, supporting both T568A and T568B wiring standards. Features integrated crimping, dust cover, and flexible installation options for residential and commercial networks.
The Arteor RJ45 Category 5e UTP socket is a professional-grade network connectivity solution designed for modern residential and commercial installations. This 1-module socket features the innovative LCS² connector system with fast connection capabilities thanks to integrated crimping technology. The socket accommodates AWG 22 single-core cables up to AWG 26 and AWG multicore cables, making it versatile for various cabling requirements. With dual colour-coded contacts and wiring schemes supporting both T568 A and T568 B standards, this socket ensures proper network installation and compliance with international standards ISO/IEC 11801 Ed. 2.0, amendment 2, EN 50173-1, and TIA/EIA 568 C.
Designed for flush-mounted, duct, and floor box installations, the Arteor RJ45 socket offers exceptional flexibility in deployment scenarios. The aluminium finish provides durability and a professional appearance suitable for any interior design. The socket includes a dust cover for protection when not in use and features label space for easy identification. With integrated strain relief and colour coding indicators, installation and maintenance are simplified for electricians and network technicians.
This Category 5e UTP socket is built to withstand demanding environments with an operating temperature range of -40°C to +70°C and storage temperature range of -40°C to +70°C. The IK03 impact strength rating ensures reliability in active installations. As a halogen-free product, it meets environmental and safety standards, making it an excellent choice for sustainable building projects. The snap-engage fastening mechanism ensures quick and secure installation without additional tools.
Key Features
- LCS² connector with integrated fast crimping technology for quick and reliable connections
- Supports AWG 22 single-core and AWG 26 multicore cables with insulation displacement connector
- Dual colour-coded contacts with T568A and T568B wiring scheme support
- Compliant with ISO/IEC 11801 Ed. 2.0, EN 50173-1, and TIA/EIA 568C international standards
- Flexible installation options: flush-mounted, duct, and floor box compatible
- Aluminium finish with professional appearance and enhanced durability
- Includes dust cover and label space for easy identification and protection
- Halogen-free construction meeting environmental and safety requirements
- Operating temperature range -40°C to +70°C for demanding environments
- Snap-engage fastening mechanism for tool-free quick installation
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Category 5e UTP Socket |
| Module Configuration | 1 module with central cover plate |
| Connector Type | RJ45 8(8) Insulation Displacement Connector |
| Cable Compatibility | AWG 22 single-core up to AWG 26 and multicore cables |
| Wiring Standards | T568A and T568B colour-coded schemes |
| International Compliance | ISO/IEC 11801 Ed. 2.0 Amendment 2, EN 50173-1, TIA/EIA 568C |
| Colour | Aluminium |
| Device Dimensions (W×H×D) | 22.5 × 45 × 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Installation Methods | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Type | Snap-engage (Engage snap) |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Material Composition | Halogen-free |
| Additional Features | Dust cover, Label space, Terminal marking indication, Colour coding |
| Shielding | Unshielded buses, No separate earthing connection |
| Reference Number | 571058 |
| EAN Code | 3414970925879 |
Order Legrand Arteor RJ45 Category 5e UTP Socket 1 Module Aluminium | 571058 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
