Shop Legrand Arteor RJ45 Cat 6 UTP Socket 1 Module Champagne Green Shutter | 572880 In Iraq Best Prices
Professional RJ45 Category 6 UTP socket with 1 module, champagne finish, and green protective shutter. Supports 1 GigaBit/s data transmission with toolless installation and high-capacity PoE applications. Compliant with ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C standards.

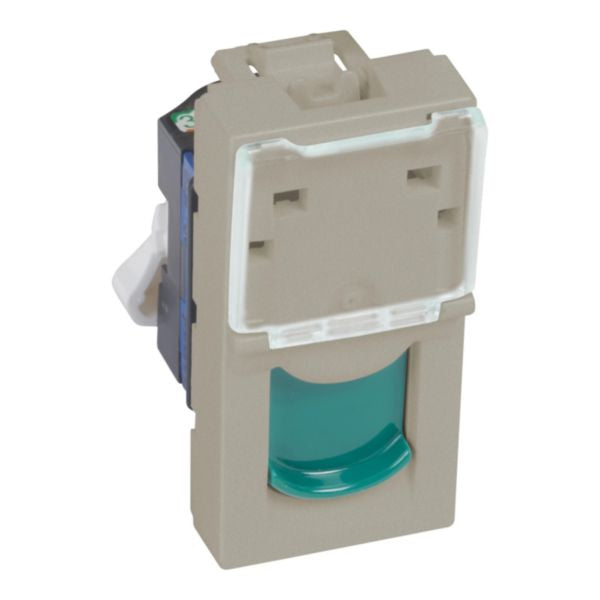

The Arteor RJ45 Category 6 UTP socket is a professional-grade networking component designed for modern residential and commercial installations. This 1-module champagne-colored outlet features a green protective dust cover and is engineered to support high-speed data transmission at rates up to 1 GigaBit/s, allowing users to download 1 GigaByte files in just 8 seconds. The socket is fully compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring reliable performance for voice, video, and data applications.
Equipped with toolless connectors featuring integrated crimping technology, this RJ45 socket offers quick and easy installation without requiring specialized tools. The unit is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing exceptional versatility for various networking scenarios. Its slot system enables perfect multigang configurations, allowing support frames to be seamlessly joined for simplified installation in standard flush mounting boxes, eliminating the need for additional wall modifications or complex cabling work.
The socket supports high-capacity Power over Ethernet (PoE) applications, enabling the transmission of electrical power alongside data through twisted pair Ethernet cabling. With an operating temperature range of -40 to 70°C and halogen-free construction, this product is suitable for commercial and residential installations, particularly for IP and analog phones, as well as bandwidth-intensive applications like streaming, downloads, and online gaming requiring low latency performance.
Key Features
- RJ45 Category 6 UTP supports data rates up to 1 GigaBit/s with 8-second file transfer capability
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data transmission
- Green protective dust cover to shield connector from environmental contamination
- Toolless connectors with integrated crimping technology for quick and easy installation
- Compatible with RJ11, RJ12, and RJ45 plugs for exceptional versatility
- Slot system enables perfect multigang configurations without additional wall modifications
- Compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C
- Halogen-free construction for environmental and safety compliance
- Operating temperature range -40 to 70°C for reliable performance in diverse environments
- Suitable for commercial and residential installations including IP phones and streaming applications
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Category 6 UTP |
| Connector Type | RJ45 8(8) |
| Category Rating | Category 6 |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 1 module |
| Color | Champagne with green shutter |
| Connection Type | Insulation Displacement Connector (IDC) |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Type | Engage (snap) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40 to 70°C |
| Storage Temperature Range | -40 to 70°C |
| Dust Cover | Yes - Green protective shutter |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Mounting Method | Flush-mounted |
| Outlet Direction | Straight |
| Terminal Resistor | No |
| Mechanical Coding | No |
| Colour Coding | Yes |
| Label Space | Yes |
| Compatible with Third-party Covers | Yes |
| Separate Strain Relief | No |
| Reference Number | 572880 |
| EAN Code | 3414971918191 |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet Support | Yes - High-capacity PoE applications supported |
Order Legrand Arteor RJ45 Cat 6 UTP Socket 1 Module Champagne Green Shutter | 572880 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
