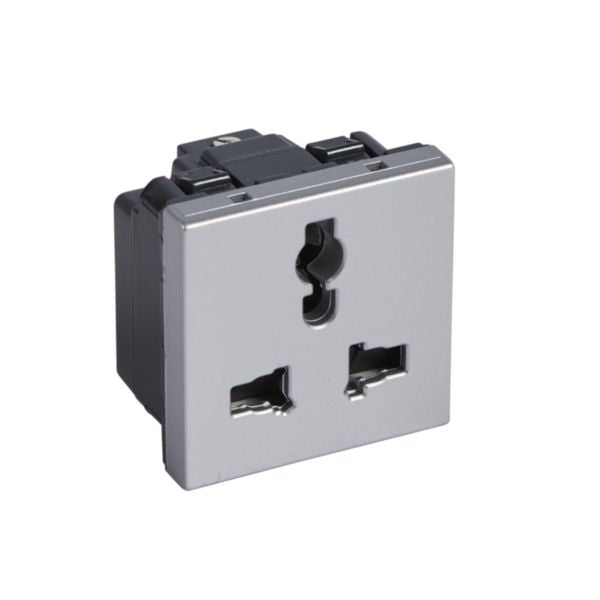

Shop Legrand Arteor Multistandard 2P+E Unswitched Socket Outlet 2 Modules Aluminium | 571042 In Iraq Best Prices
Premium multistandard 2P+E unswitched socket outlet with child safety shutters, aluminium finish, and international electrical standards compliance for residential and commercial applications.
The Arteor™ Multistandard 2P+E unswitched socket outlet is a premium electrical wiring device designed for international applications. This 2-module socket outlet features child safety shutters and is finished in elegant aluminium colour (RAL 7040). The socket is supplied with rocker plates and requires support frames and plates for installation, making it a versatile solution for modern residential and commercial installations. With enhanced contact protection and loop-through functionality, this socket outlet ensures reliable power distribution and safety compliance across multiple electrical standards.
This multistandard socket outlet is engineered to accommodate various international plug types with its 2P+E configuration. The device features screwed terminal connections for secure wiring, supporting flexible or rigid cables with a section range of 2.5-2.5 mm². Operating at 250V and 13A nominal current with 50-60 Hz frequency, it delivers consistent performance in diverse electrical environments. The thermoplastic construction is halogen-free and lacquered with a matt finish, ensuring durability and environmental compliance. Its IP40 degree of protection and IK04 impact strength rating make it suitable for standard indoor installations.
The Arteor multistandard socket outlet combines functionality with aesthetic appeal, featuring a sleek aluminium finish that complements contemporary interior designs. With dimensions of 45mm x 45mm x 35.9mm and a built-in depth of 26.9mm, it integrates seamlessly into standard electrical installation frameworks. The device operates reliably across a temperature range of -5°C to 50°C during operation and -10°C to 70°C during storage, ensuring consistent performance in various climatic conditions. As part of the Legrand Arteor range, this socket outlet represents the pinnacle of international electrical standards compliance and design excellence.
Key Features
- Multistandard 2P+E unswitched socket outlet with enhanced contact protection
- Child safety shutters for secure and protected electrical installation
- Aluminium finish (RAL 7040) with matt lacquered thermoplastic construction
- Loop-through functionality for flexible electrical circuit configuration
- Halogen-free and environmentally compliant materials
- Screwed terminal connections supporting 2.5-2.5 mm² cable sections
- IP40 degree of protection and IK04 impact strength rating
- International electrical standards compliance across multiple regions
- Operates at 250V, 13A nominal current with 50-60 Hz frequency
- Compact 2-module design integrating seamlessly into standard frameworks
Technical Specifications
| Specification |
Value |
| Product Type | Multistandard 2P+E Unswitched Socket Outlet |
| Number of Modules | 2 modules |
| Nominal Voltage | 250V AC |
| Nominal Current | 13A |
| Frequency Range | 50-60 Hz |
| Number of Active Contacts | 2 round + 2 flat contacts |
| Protective Contact | Yes (Other type) |
| Socket Outlets | 1 socket outlet |
| Connection Type | Screwed terminal |
| Cable Section Range | 2.5-2.5 mm² |
| Material | Thermoplastic (Halogen-free) |
| Colour | Aluminium (RAL 7040) |
| Surface Finishing | Matt lacquered |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 35.9 mm |
| Built-in Depth | 26.9 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Child Safety Protection | Yes - Shuttered for child safety |
| Enhanced Contact Protection | Yes |
| Loop-Through Functionality | Yes |
| Mounting Method | Module frame |
| Type of Fastening | Snap mounting (engagement) |
| Assembly Arrangement | Basic element with central cover plate |
| Concurrently Switching Neutral Conductor | No |
| Number of Phases | 1 phase |
| Reference Number | 571042 |
| EAN Code | 3414970925398 |
