Shop Legrand Arteor Master Switch Lighting Control 2 Modules Soft Alu | 573788 In Iraq Best Prices
Professional 2-module master switch for centralized lighting control with soft aluminum finish, 20A/250V rating, and all ON/all OFF functionality for hotel and residential applications.

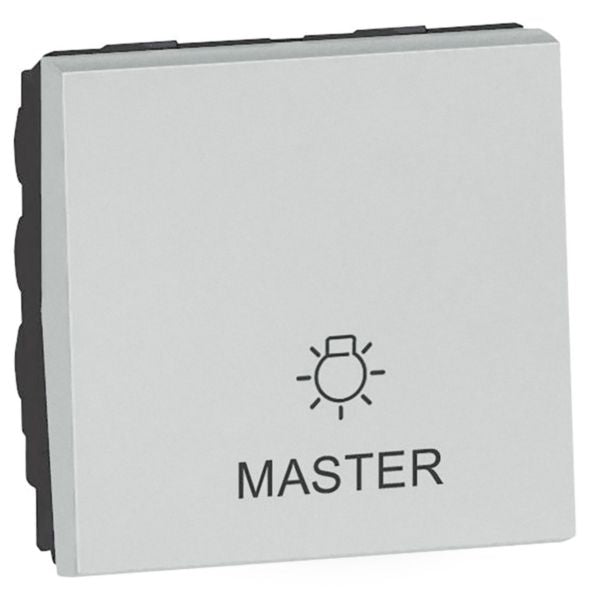

The Arteor Master Switch for Lighting Control is a professional-grade two-way double pole switching device designed for comprehensive lighting management in residential and hotel environments. This 2-module unit features a sophisticated soft aluminum finish that complements modern interior design while providing reliable electrical performance. The master switch enables all ON/all OFF general control functionality, making it ideal for centralized lighting management in large spaces or multi-room applications. With a rated capacity of 20 AX at 250V~, this device delivers dependable switching performance for fluorescent lamps and conventional lighting circuits.
This Arteor wiring device represents the square version of Legrand's premium hotel equipment line, engineered to meet the highest standards of durability and safety. The modular design allows for flexible installation within standard electrical boxes, with snap-engage fastening for quick and secure mounting. The thermoplastic housing is halogen-free, ensuring environmental compliance and enhanced safety in case of electrical incidents. The device features an IK04 degree of impact strength, providing robust protection against physical damage in busy commercial and residential settings.
The master switch operates with a rocker/button mechanism that provides intuitive control for users. Compatible with standard electrical installations featuring 4mm² cable sections, this device integrates seamlessly into existing electrical systems. The soft aluminum color option offers aesthetic versatility, matching contemporary design preferences while maintaining professional appearance. Operating temperature range of -5 to 50°C ensures reliable performance across diverse climate conditions, making it suitable for various geographical installations.
Key Features
- Two-way double pole master switch with all ON/all OFF general control capability
- 2-module modular design compatible with standard electrical installation boxes
- 20 AX rated current at 250V~ for reliable fluorescent lamp and lighting circuit switching
- Soft aluminum finish with modern aesthetic design for contemporary interiors
- Halogen-free thermoplastic housing with IK04 impact strength protection
- Rocker/button operation mechanism for intuitive user control
- Snap-engage fastening system for quick and secure installation
- Operating temperature range -5 to 50°C for diverse climate performance
- Compatible with 4-4mm² cable sections for standard electrical systems
- IP40 degree of protection suitable for residential and commercial environments
Technical Specifications
| Specification |
Value |
| Product Type | Master Switch for Lighting Control |
| Wiring System | Two-way switch |
| Number of Modules | 2 modules |
| Rated Voltage | 250V AC |
| Rated Current | 20A |
| Switching Current for Fluorescent Lamps | 20 AX |
| Frequency | 50-60 Hz |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42.2 mm |
| Built-in Depth | 28.5 mm |
| Minimum Installation Box Depth | 30 mm |
| Cable Section | 4-4 mm² |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Color | Soft Aluminium |
| Surface Finishing | Matt |
| Method of Operation | Rocker/button |
| Type of Fastening | Engage (snap) |
| Mounting Method | Module frame |
| Impact Strength (IK) | IK04 |
| Degree of Protection (IP) | IP40 |
| Operating Temperature Range | -5 to 50°C |
| Storage Temperature Range | -10 to 70°C |
| Connection Type | Screwed terminal |
| Number of Rockers | 1 |
| Mounting Plate Included | No |
| Lighting Function | No |
| Push Button Switch | No |
| Antimicrobial Treatment | No |
| Reference Number | 573788 |
| EAN Code | 3414971850361 |
| Product Line | Arteor Hotel Equipment Square Version |
| Suitable For | Hotel and Residential Applications |
| Monitoring Contact | No |
