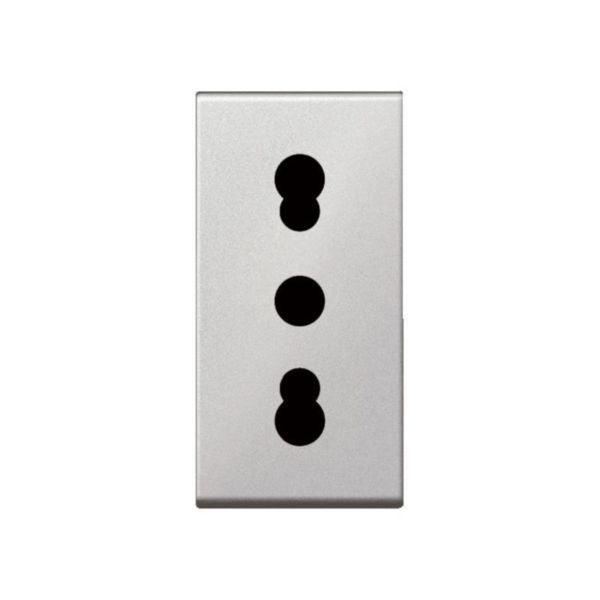

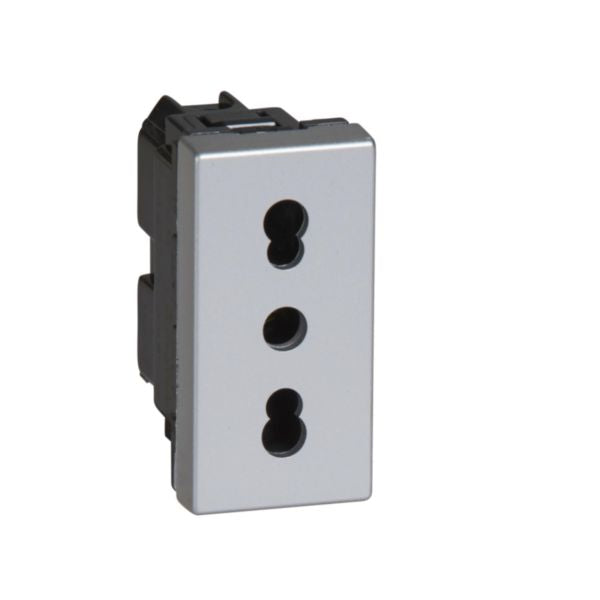

Shop Legrand Arteor Italian Type 2P+E Shuttered Socket Outlet 16A Aluminium | 571036 In Iraq Best Prices
Premium Italian-style 2P+E shuttered socket outlet with child safety protection, 16A capacity, aluminum finish, and reliable screwed terminal connections for modern electrical installations.
The Arteor Italian type 2P+E shuttered socket outlet is a premium electrical accessory designed for modern residential and commercial installations. This 1-module socket outlet provides reliable power distribution with enhanced child safety features through its shuttered design, protecting against accidental contact. Rated at 10-16 A with 230V nominal voltage, it features a robust aluminum finish that complements contemporary interior designs while maintaining exceptional durability and performance standards.
This socket outlet is specifically engineered for Italian electrical standards (P11) and incorporates advanced contact protection technology. The device features screwed terminal connections compatible with flexible or rigid cables (4-4 mm²), ensuring secure and reliable installation. With its compact dimensions (22.5mm width × 45mm height × 36.3mm depth) and snap-mounting capability, it integrates seamlessly into standard module frames and installation systems.
The Arteor collection represents Legrand's commitment to quality electrical solutions, offering halogen-free plastic construction with lacquered, matte aluminum finish. Operating safely across -5°C to 40°C temperature ranges, this socket outlet meets IP20 protection degree and IK04 impact strength ratings, making it suitable for various indoor environments. Its loop-through functionality allows for efficient circuit management, while the enhanced contact protection ensures long-term safety and reliability for both residential and light commercial applications.
Key Features
- Italian type 2P+E shuttered design with enhanced child safety protection
- 16A nominal current capacity at 230V with 50-60Hz frequency compatibility
- Halogen-free thermoplastic construction with lacquered matte aluminum finish
- Compact 1-module design with snap-mounting capability for standard frames
- Advanced contact protection with loop-through functionality for efficient circuit management
Technical Specifications
| Specification |
Value |
| Product Type | Italian Type P11 2P+E Shuttered Socket Outlet |
| Nominal Current | 16 A |
| Nominal Voltage | 230 V AC |
| Frequency | 50-60 Hz |
| Number of Modules | 1 module |
| Protective Contact | Round type |
| Number of Active Contacts | 2 (round) |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² (flexible or rigid) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 36.3 mm |
| Built-in Depth | 27.8 mm |
| Material | Thermoplastic (Halogen-free) |
| Colour | Aluminium (RAL 7040) |
| Surface Finishing | Lacquered matte |
| IP Protection Degree | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5°C to +40°C |
| Storage Temperature | -10°C to +70°C |
| Mounting Method | Snap mounting (engagement) on module frame |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| Child Safety Shutters | Yes |
| SKU/Reference | 571036 |
| EAN Code | 3414970925213 |
Order Legrand Arteor Italian Type 2P+E Shuttered Socket Outlet 16A Aluminium | 571036 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
