Description

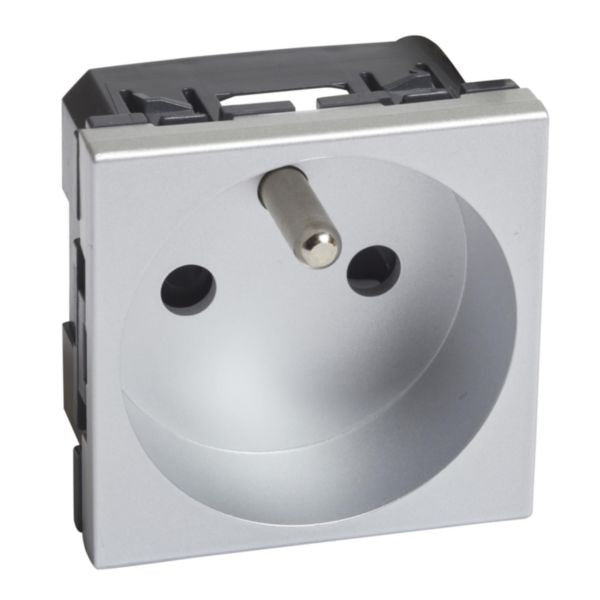

Shop Legrand Arteor French Standard 2P+E Shuttered Socket Outlet 16A Aluminium | 571021 In Iraq Best Prices

Premium Arteor 16A French standard shuttered socket outlet with child safety protection, aluminium finish, 2 modules, enhanced contact protection, and IP40 rating for modern residential and commercial installations.

The Arteor French standard 2P+E shuttered socket outlet is a premium electrical wiring device designed for modern residential and commercial installations. This 16A socket outlet features advanced child safety shuttering mechanism that prevents accidental contact with live electrical contacts. The socket is constructed with high-quality thermoplastic material in a sophisticated aluminium finish, providing both durability and aesthetic appeal for contemporary interior designs. This 2-module socket outlet is specifically engineered to meet French electrical standards and is suitable for installation in receptacles for floor sockets. The device incorporates enhanced contact protection and operates at 250V with a frequency range of 50-60 Hz. The shuttered design ensures that the contacts are only exposed when a correctly grounded plug is inserted, making it ideal for installations in homes with children and ensuring maximum safety compliance. The Arteor socket outlet features screwed terminal connections compatible with flexible or rigid cables ranging from 4-4 mm². It maintains an IP40 degree of protection and IK04 impact strength rating, making it suitable for various environmental conditions. The device operates reliably across a temperature range of -5 to 50°C and includes a loop-through function for convenient installation in multi-socket configurations.

Key Features

Child Safety Shuttered Mechanism - Advanced protective shuttering prevents accidental contact with live electrical contacts
French Standard Compliance - Specifically designed and certified for French electrical standards (2P+E configuration)
Enhanced Contact Protection - Superior design ensures safe and reliable electrical connections
Aluminium Premium Finish - Sophisticated metallic appearance in RAL 7040 colour for modern aesthetic appeal
Loop-Through Function - Convenient installation capability for multi-socket configurations and flexible wiring arrangements

Technical Specifications

Specification	Value
Product Type	French Standard 2P+E Shuttered Socket Outlet
Nominal Current	16 A
Nominal Voltage	250 V
Frequency Range	50-60 Hz
Number of Modules	2 modules
Number of Socket Outlets	1
Protective Contact Type	Round
Connection Type	Screwed terminal
Cable Section Compatible	4-4 mm²
Material	Thermoplastic
Colour	Aluminium (RAL 7040)
Device Dimensions	45mm (W) x 45mm (H) x 37mm (D)
Built-in Depth	28 mm
Degree of Protection	IP40
Impact Strength Rating	IK04
Operating Temperature Range	-5 to 50°C
Storage Temperature Range	-10 to 70°C
Mounting Method	Module frame with snap mounting
Enhanced Contact Protection	Yes
Halogen Free	Yes
Loop Through Function	Yes
Voltage Type	AC
Reference Number	571021
EAN Code	3414970925060

Order Legrand Arteor French Standard 2P+E Shuttered Socket Outlet 16A Aluminium | 571021 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
