Shop Legrand Arteor French Socket 2P Shuttered 10/16A White 2 Modules | 572020 In Iraq Best Prices
Premium Arteor French socket outlet with 2P shuttered protection, 10/16A rating, child safety features, and white thermoplastic construction for reliable residential and commercial electrical distribution.

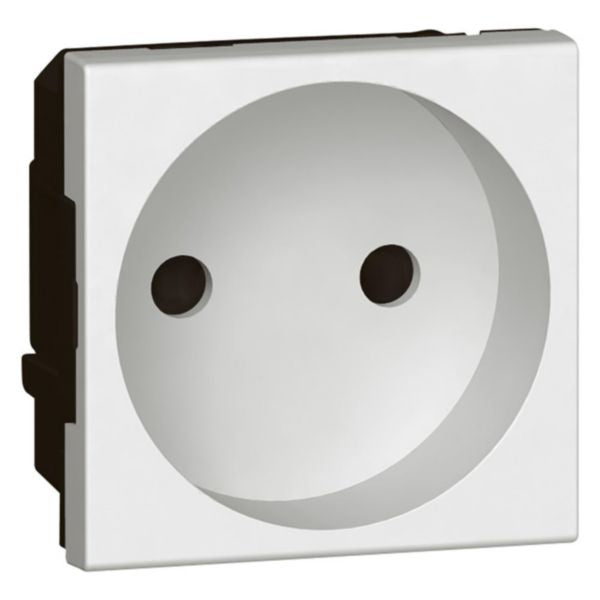

The Arteor™ French Socket is a premium wiring device designed for international residential and commercial applications. This 2-module socket outlet features French standard CEE 7/1 configuration with 2P shuttered protection, rated at 10/16 A and 250V AC. The socket is manufactured with high-quality thermoplastic material in glossy white finish (RAL 9003), ensuring durability and aesthetic appeal in any interior setting. With enhanced contact protection and child safety shutters, this socket provides reliable performance and peace of mind for families and businesses alike.
This Arteor™ mechanism comes supplied with rocker plates and is designed to be equipped with support frames and plates for seamless integration into electrical installations. The device features screwed terminal connection type, supporting flexible or rigid cables with cross-sections from 4-4 mm². Operating at frequencies between 50-60 Hz, it maintains consistent performance across different electrical systems. The socket is suitable for IP40 degree of protection and IK04 impact strength rating, making it ideal for standard indoor environments. Its compact dimensions of 45mm width, 45mm height, and 37mm depth with 28mm built-in depth allow for easy installation in various mounting configurations.
The Arteor™ French Socket is halogen-free and compliant with RoHS directives, reflecting Legrand's commitment to environmental sustainability and safety standards. With a nominal current of 16A and operating temperature range of -5°C to 50°C, this socket delivers reliable electrical distribution for everyday use. The loop-through function enables convenient daisy-chaining of multiple outlets, while the snap mounting method ensures quick and secure installation. This product is backed by comprehensive technical documentation and certificates of compliance, making it a trusted choice for professional electricians and homeowners seeking quality electrical solutions.
Key Features
- French standard CEE 7/1 socket configuration for international compatibility
- 2P shuttered design with enhanced child safety protection
- High-quality thermoplastic material with glossy white finish (RAL 9003)
- Rated 10/16A at 250V AC with 50-60Hz frequency support
- Screwed terminal connection supporting 4-4mm² flexible or rigid cables
- IP40 protection degree and IK04 impact strength rating
- Loop-through function for convenient multiple outlet installation
- Snap mounting method for quick and secure installation
- Halogen-free and RoHS compliant for environmental safety
- Compact 45x45x37mm dimensions with 28mm built-in depth
Technical Specifications
| Specification |
Value |
| Product Model | Arteor™ French Socket 2P Shuttered |
| Socket Standard | CEE 7/1 unearthed (French standard) |
| Rated Current | 10/16 A |
| Rated Voltage | 250 V AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 outlet |
| Number of Active Contacts | 2 round contacts |
| Material | Thermoplastic (Halogen-free) |
| Color | White (RAL 9003) |
| Surface Finishing | Glossy |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² (flexible or rigid) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 37 mm |
| Built-in Depth | 28 mm |
| Protection Degree | IP40 |
| Impact Strength | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Mounting Method | Module frame (Snap mounting) |
| Enhanced Contact Protection | Yes (Shuttered) |
| Loop Through Function | Yes |
| Child Safety Protection | Yes (2P shuttered) |
| Compliance | RoHS compliant |
| Reference Number | 572020 |
| EAN Code | 3245065720204 |
Order Legrand Arteor French Socket 2P Shuttered 10/16A White 2 Modules | 572020 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
