Description

Shop Legrand Arteor French Socket 2P Shuttered 10/16A 2 Modules Magnesium | 572520 In Iraq Best Prices

Premium Arteor French 2P shuttered socket outlet with 10/16A rating, 2 modules, magnesium finish, child safety protection, and enhanced contact protection for modern residential and commercial installations.

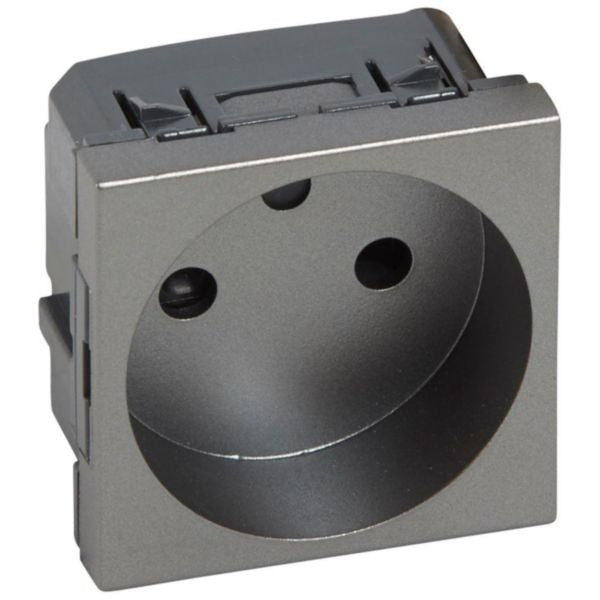

The Arteor™ French Socket is a premium electrical outlet designed to meet international standards for residential and commercial applications. This 2-module socket outlet features a 2P shuttered design rated for 10/16 amperes, providing enhanced child safety through its protective shutter mechanism. The magnesium finish delivers a sophisticated aesthetic while maintaining durability and reliability in any interior setting. This socket is part of the Arteor international range and comes equipped with rocker plates for seamless integration with support frames and mounting systems. The device features screwed terminal connections accommodating flexible or rigid cables from 4-4 mm² cross-section, ensuring secure and reliable electrical connections. With an IP40 degree of protection and IK04 impact strength rating, this outlet is suitable for standard indoor installations and everyday use. The Arteor French Socket combines functionality with modern design, offering enhanced contact protection and a loop-through function for convenient installation. Operating safely within temperature ranges of -5°C to 50°C, this outlet maintains consistent performance across varying environmental conditions. The thermoplastic material is halogen-free, making it an environmentally responsible choice for modern electrical installations.

Key Features

2P Shuttered Design with Child Safety Protection
10/16 Ampere Rated Capacity with Screwed Terminal Connections
2-Module Configuration with Magnesium Finish
Enhanced Contact Protection and Loop-Through Function
IP40 Protection Rating and IK04 Impact Strength
Halogen-Free Thermoplastic Material for Environmental Safety
Wide Operating Temperature Range -5°C to 50°C
Compatible with Flexible and Rigid Cables 4-4 mm² Cross-Section

Technical Specifications

Specification	Value
Product Name	Arteor™ Socket - French - 2P Shuttered - 10/16 A - 2 Modules - Magnesium
Reference Number	572520
EAN Code	3245065725209
Socket Type	French Standard 2P Shuttered
Rated Current	16 A
Rated Voltage	250 V
Frequency	50-60 Hz
Number of Modules	2
Number of Socket Outlets	1
Material	Thermoplastic (Halogen-Free)
Color	Magnesium Grey
Surface Finish	Matt Lacquered
Device Width	45 mm
Device Height	45 mm
Device Depth	37 mm
Built-in Depth	28 mm
Connection Type	Screwed Terminal
Cable Section	4-4 mm²
Cable Type	Flexible or Rigid
Protection Class	IP40
Impact Resistance	IK04
Operating Temperature	-5°C to 50°C
Storage Temperature	-10°C to 70°C
Voltage Type	AC
Enhanced Contact Protection	Yes
Loop-Through Function	Yes
Child Safety Shutters	Yes
Mounting Method	Module Frame (Snap Mounting)
Assembly Type	Basic Element with Central Cover Plate
Power Delivery	No

Order Legrand Arteor French Socket 2P Shuttered 10/16A 2 Modules Magnesium | 572520 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
