Shop Legrand Arteor Double Pole Socket Outlet BS 1363 13A Switched Soft Alu | 572448 In Iraq Best Prices
Premium British Standard double pole socket outlet with 13A capacity, child safety shuttering, and elegant Soft Alu finish. ASTA licensed, halogen-free, and fully compliant with BS 1363 Part 2.

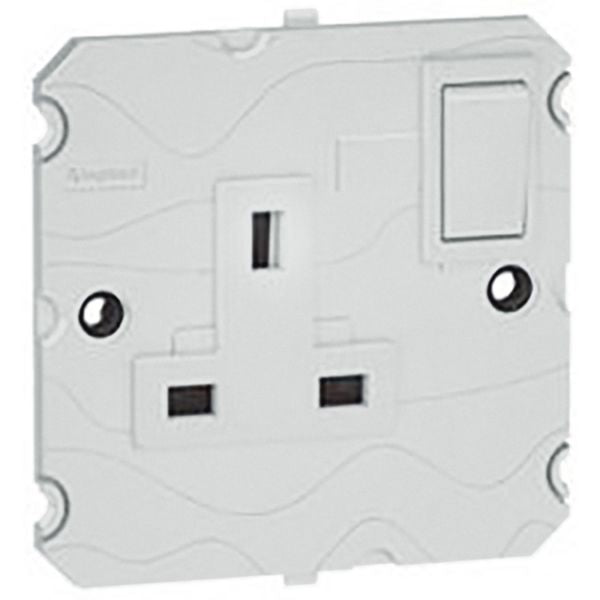

The Arteor Double Pole Socket Outlet is a premium British Standard compliant electrical socket designed for residential and commercial applications. This 13A 250V~ socket outlet features advanced child safety shuttering and is fully compliant with BS 1363 Part 2 standards. The socket incorporates a double pole switching mechanism that concurrently switches the neutral conductor, ensuring enhanced electrical safety. With its sleek Soft Alu finish, this 1-gang socket outlet provides a modern aesthetic while maintaining exceptional durability and reliability.
This socket outlet is manufactured using high-quality thermoplastic materials and is halogen-free, making it environmentally friendly and suitable for sensitive applications. The device features flat protective contacts and is equipped with enhanced contact protection for added safety. The mounting method is flush-mounted with screw fastening, making installation straightforward and secure. Operating at 50-60 Hz frequency, it maintains consistent performance across different electrical systems.
The Arteor socket outlet is part of the renowned Arteor collection, which combines elegant design with superior functionality. It features a loop-through function with on/off switching capability, allowing for convenient control of connected devices. The aluminum switch operator provides a premium tactile experience, while the glossy surface finishing ensures easy maintenance and long-lasting appearance. This product is ASTA licensed and backed by comprehensive documentation including RoHS compliance certificates.
Key Features
- Double pole switching with concurrent neutral conductor switching for enhanced safety
- Child safety shuttering system compliant with BS 1363 Part 2
- ASTA licensed and certified for British Standard applications
- Halogen-free thermoplastic construction for environmental sustainability
- Enhanced contact protection with flat protective contacts
- Loop-through function with convenient on/off switching
- Premium Soft Alu finish with glossy surface for modern aesthetics
- Flush-mounted installation with secure screw fastening
- Operates at 50-60 Hz across different electrical systems
- Built-in depth of 30.95mm for standard installation cavities
Technical Specifications
| Specification |
Value |
| Product Type | Double Pole Socket Outlet |
| Standard Compliance | BS 1363:2 British Standard |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules (module system) |
| Number of Socket Outlets | 1 socket outlet |
| Switchable Socket Outlets | 1 socket outlet switchable |
| Protective Contact Type | Flat |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Color | Soft Alu (Aluminium) |
| Surface Finishing | Glossy |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Device Width | 83.55 mm |
| Device Height | 78.5 mm |
| Device Depth | 19.9 mm |
| Built-in Depth | 30.95 mm |
| IP Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5 to +50 °C |
| Storage Temperature | -10 to +70 °C |
| Enhanced Contact Protection | Yes |
| Child Safety Shuttering | Yes |
| Concurrent Neutral Switching | Yes |
| Loop Through Function | Yes |
| On/Off Switch | Yes |
| Switch Operator Color | Aluminium |
| ASTA License | Yes |
| Reference Number | 572448 |
| EAN Code | 3414971846951 |
Order Legrand Arteor Double Pole Socket Outlet BS 1363 13A Switched Soft Alu | 572448 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
