Description

Shop Legrand Arteor Double Pole Socket Outlet BS 1363 13A Switched Champagne | 572449 In Iraq Best Prices

Premium British Standard double pole socket outlet with 13A capacity, child safety shutters, and elegant Champagne finish. Features advanced electrical protection and reliable screwed terminal connections for modern installations.

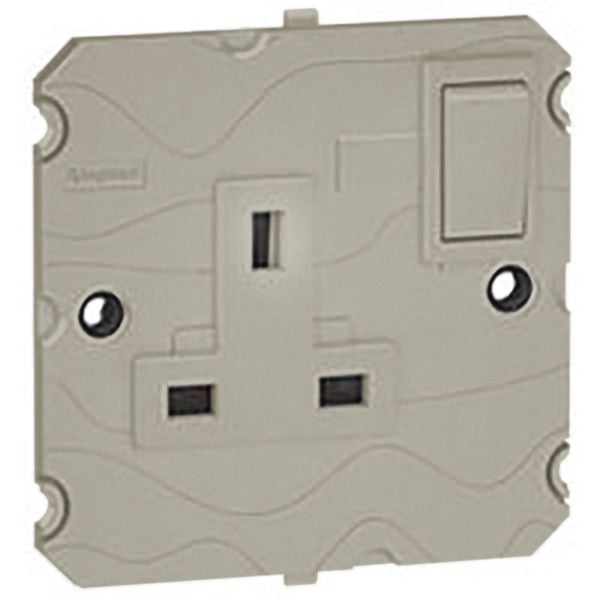

The Arteor Double Pole Socket Outlet is a premium British Standard compliant electrical socket designed for modern residential and commercial applications. This 13A, 250V~ socket features advanced safety mechanisms including shuttered design for child protection and full compliance with BS 1363 Part 2 standards. The socket incorporates a concurrently switching neutral conductor, ensuring enhanced electrical safety and protection. With its elegant Champagne-colored finish and titanium rocker plate, this 1-gang socket outlet seamlessly integrates into contemporary interior designs while maintaining robust functionality and durability. This socket outlet is equipped with flat protective contacts and features an on/off switch mechanism for convenient control of connected devices. The device measures 83.55mm in width and 78.5mm in height with a built-in depth of 30.95mm, making it compatible with standard flush-mounted installations. The Arteor range is supplied with rocker plates and requires special mounting arrangements without needing a separate support frame. Operating safely within temperature ranges of -5°C to 50°C, this socket maintains optimal performance in various environmental conditions. The product features enhanced contact protection (IP20 rated) and IK04 impact resistance, ensuring long-lasting performance and safety. With screwed terminal connections accommodating cable sections from 4-4mm², installation is straightforward and reliable. The halogen-free thermoplastic construction with lacquered matt finish provides excellent durability and environmental compliance. This socket outlet is ASTA licensed and ideal for applications requiring both aesthetics and functionality in modern electrical installations.

Key Features

BS 1363 Part 2 compliant double pole socket outlet with 13A, 250V~ rating
Shuttered design with enhanced child safety protection mechanisms
Concurrently switching neutral conductor for superior electrical safety
Elegant Champagne finish with titanium rocker plate for modern aesthetics
ASTA licensed with halogen-free thermoplastic construction and lacquered finish
IP20 rated with IK04 impact resistance for durability
Screwed terminal connections accommodating 4-4mm² cable sections
On/off switch mechanism for convenient device control
Operating temperature range -5°C to 50°C for reliable performance
Flush-mounted installation with no separate support frame required

Technical Specifications

Specification	Value
Product Model	Arteor Double Pole Socket Outlet BS 1363:2
Reference Number	572449
EAN Code	3414971846982
Standard	British Standard (BS 1363 Part 2)
Nominal Current	13 A
Nominal Voltage	250 V~
Frequency	50-60 Hz
Number of Socket Outlets	1 (1-gang)
Socket Type	Double pole with flat protective contacts and shuttered design
Protective Contact Type	Flat
Number of Active Flat Contacts	2
Switchable Socket Outlets	1
Concurrently Switching Neutral	Yes
On/Off Switch	Yes
Switch Operator Color	Titanium
Child Safety	Shuttered for child safety
Enhanced Contact Protection	Yes
Connection Type	Screwed terminal
Cable Section Range	4-4 mm²
Cable Type	Flexible or rigid
Device Width	83.55 mm
Device Height	78.5 mm
Device Depth	19.9 mm
Built-in Depth	30.95 mm
Mounting Method	Flush-mounted
Type of Fastening	Mounting with screw
Assembly Arrangement	Basic element with full cover plate
Material	Thermoplastic
Material Quality	Halogen free thermoplastic
Surface Protection	Lacquered
Surface Finishing	Matt
Color	Champagne (Titanium)
Metallic Color	No
Degree of Protection (IP)	IP20
Degree of Impact Strength (IK)	IK04
Operating Temperature Range	-5°C to 50°C
Storage Temperature Range	-10°C to 70°C
Voltage Type	AC
Power Delivery	No
Certification	ASTA licensed
Compliance	RoHS compliant
Loop Through Function	Yes
USB Ports	None
Smart Home Compatible	No (Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant)
Hinged Lid	No
Lockable	No
Eject Mechanism	No
Overvoltage Protection	No
Fault Current Protection	No
Miniature Fuse	No
Antimicrobial Treatment	No
Warranty	Standard manufacturer warranty

Order Legrand Arteor Double Pole Socket Outlet BS 1363 13A Switched Champagne | 572449 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
