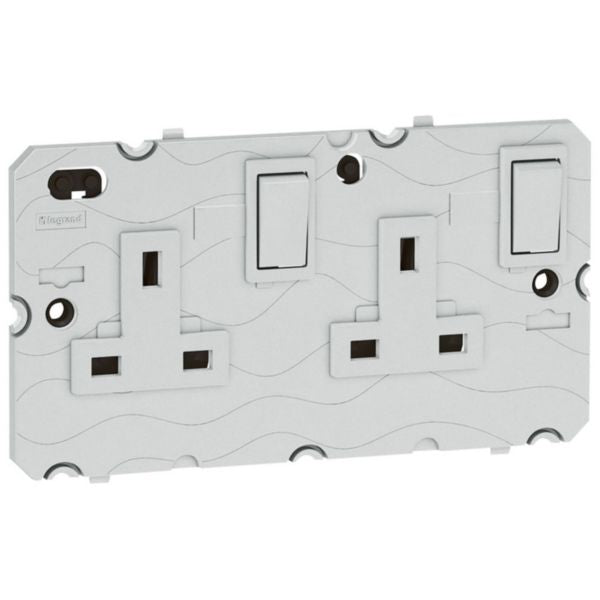

Shop Legrand Arteor Double Pole Socket BS 1363 13A Switched Twin Soft Alu | 570070 In Iraq Best Prices
Premium British Standard double pole socket outlet with child safety shutters, 13A capacity, soft aluminum finish, and enhanced contact protection for modern homes and offices.
The Arteor Double Pole Socket is a premium British Standard compliant electrical outlet designed for modern residential and commercial applications. This 13A, 250V~ socket outlet features enhanced safety with shuttered design for child protection and conforms to BS 1363 Part 2 standards. The socket is equipped with a 2-gang configuration with soft aluminum finish, providing both aesthetic appeal and durability. It comes with rocker plates and is designed to be used with special 2P+E switched plates, making it an ideal choice for contemporary interior designs.
This double pole socket outlet offers concurrent switching of the neutral conductor, ensuring optimal electrical safety and performance. With screwed terminal connections and loop-through functionality, it allows for easy installation and daisy-chaining of multiple outlets. The device features enhanced contact protection and operates across 50-60 Hz frequency range, making it suitable for global applications. The flush-mounted design with screw fastening ensures secure installation in standard electrical boxes.
Manufactured with thermoplastic material and halogen-free construction, this socket outlet meets modern environmental and safety standards. The ASTA licensed design and compliance with British Standards ensure reliability and performance. With dimensions of 143.5mm width and 83.5mm height, it fits seamlessly into standard electrical installations while maintaining the elegant soft aluminum aesthetic.
Key Features
- BS 1363 Part 2 compliant with ASTA license certification
- Shuttered design for enhanced child safety protection
- Concurrent neutral conductor switching for optimal electrical safety
- Soft aluminum finish with elegant 2-gang configuration
- Loop-through functionality for easy daisy-chaining of multiple outlets
- Halogen-free thermoplastic construction meeting environmental standards
- Enhanced contact protection and IK04 impact strength rating
- Screwed terminal connections supporting 4-4mm² cable sections
Technical Specifications
| Specification |
Value |
| Product Name | Arteor Double Pole Socket BS 1363:2 |
| Reference Number | 570070 |
| EAN Code | 3414971851436 |
| Standard Compliance | BS 1363 Part 2, British Standard |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V~ |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 2 |
| Socket Type | 2P+E Switched Twin |
| Configuration | 2-gang |
| Protective Contact Type | Flat |
| Child Safety Feature | Shuttered |
| Neutral Conductor Switching | Concurrent |
| Connection Type | Screwed Terminal |
| Cable Section Range | 4-4 mm² |
| Device Width | 143.5 mm |
| Device Height | 83.5 mm |
| Device Depth | 19.9 mm |
| Built-in Depth | 30.95 mm |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with screw |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Colour | Soft Aluminium |
| Surface Finishing | Glossy |
| IP Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5 to 50 °C |
| Storage Temperature Range | -10 to 70 °C |
| Voltage Type | AC |
| Loop Through Function | Yes |
| On/Off Switch | Yes |
| Enhanced Contact Protection | Yes |
| ASTA Licence | Yes |
| Number of Modules | 4 |
