Description

Shop Legrand Arteor Contactless Switch 200W LED White | 574334 In Iraq Best Prices

Advanced contactless switch with laser optical sensor technology for 200W LED lighting control. Features compact 20mm depth, flexible wiring options, and reliable Triac performance.

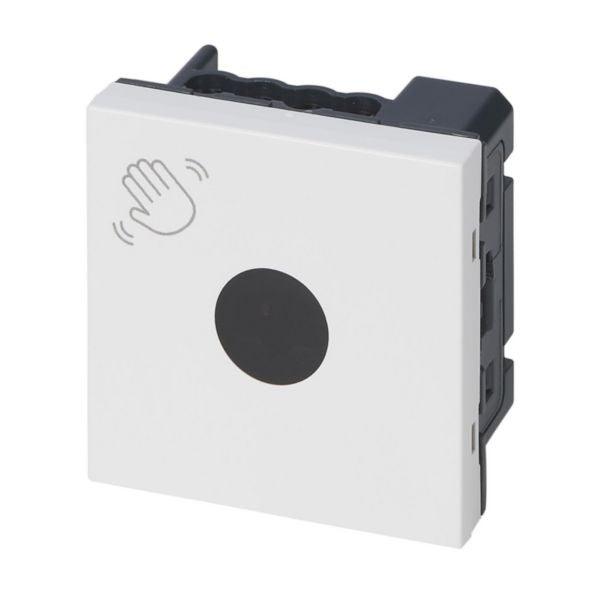

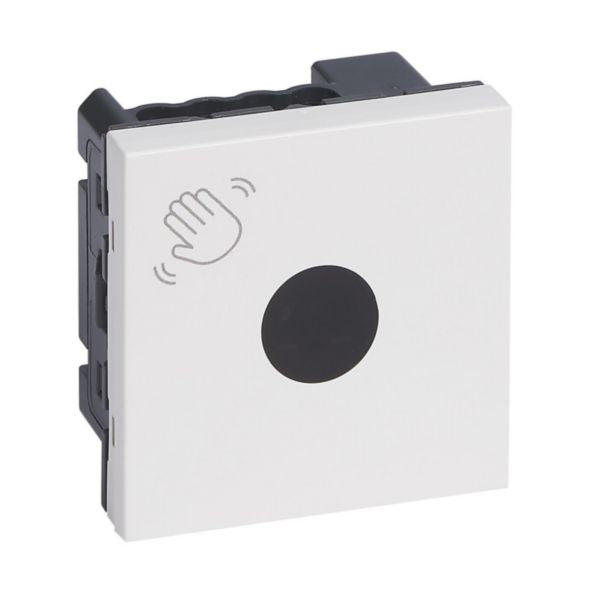

The Arteor Contactless Switch 200W LED for light in White is a state-of-the-art lighting control solution featuring advanced laser optical sensor technology. This innovative contactless switch delivers exceptional responsiveness and reliability for modern home and building automation. With its compact 20mm mechanism depth, it seamlessly integrates into both flush-mounted boxes and surface-mounted frames, making installation straightforward regardless of your existing electrical infrastructure. Designed with user convenience in mind, this switch operates in both maintained and pulsed modes, allowing for flexible control of relays and connected micromodules. The deactivatable locator light mode (enabled by default) provides convenient visual feedback when needed. Supporting universal and LED retrofit loads up to 200W, this Triac-based switch handles a wide range of lighting applications from traditional incandescent to modern LED systems. Its thermoplastic construction with glossy white finish ensures durability and aesthetic appeal. The switch requires no mandatory neutral wire, offering greater installation flexibility in various electrical configurations. With a rated current of 1A at 250V (50-60Hz), it delivers reliable performance with minimal standby consumption of just 0.3mA. The IK04 impact resistance and IP40 protection rating ensure robust performance in typical residential and commercial environments. Terminal capacity of 1.5-2.5mm² accommodates standard electrical cables, while the halogen-free construction meets modern environmental standards.

Key Features

Very reactive laser optical sensor technology for instant response
Compact 20mm mechanism depth for easy installation in flush-mounted and surface-mounted applications
Flexible wiring with and without neutral wire configuration
Deactivatable locator light mode for convenient visual feedback
Supports maintained and pulsed modes for relay and micromodule control
Universal and LED retrofit load compatibility up to 200W
Halogen-free construction meeting modern environmental standards
Low standby consumption of 0.3mA for energy efficiency
IK04 impact resistance and IP40 protection rating
Screwed terminal connection with 1.5-2.5mm² cable capacity

Technical Specifications

Specification	Value
Product Name	Arteor Contactless Switch 200W LED
SKU/Reference	574334
EAN Code	3414972314183
Brand	Legrand
Model Type	Triac
Color	White (RAL 9003)
Nominal Voltage	250V
Frequency	50-60 Hz
Rated Current	1A
Switch Capacity	5-200W
Load Type	Universal and LED Retrofit
Width	45mm
Height	45mm
Depth	26mm
Built-in Depth	17.5mm
Mechanism Depth	20mm
Minimum Built-in Box Depth	35mm
Material	Thermoplastic
Surface Finish	Glossy
Connection Type	Screwed Terminal
Number of Terminals	4
Terminal Capacity	1.5-2.5mm²
Cable Section	1.5-2.5mm²
Impact Resistance (IK)	IK04
Protection Degree (IP)	IP40
Operating Temperature Range	-5 to 40°C
Storage Temperature Range	-25 to 70°C
Standby Consumption	0.3mA
Mandatory Neutral	No
Halogen Free	Yes
Mounting Method	Screw Mounting
Assembly Arrangement	Basic Element with Central Cover Plate
Operating Method	Network
Sensor Technology	Laser Optical Sensor
Wiring Modes	Maintained and Pulsed
Light Memory	No
Locator Light Mode	Deactivatable (Enabled by Default)
Substation Input	Yes
Applicable with Button	Yes
Smart Home Compatibility	No (Apple HomeKit, Google Assistant, Amazon Alexa)
Stress Test Conformity	1000V
