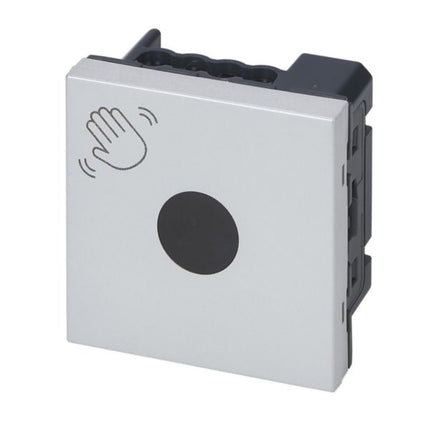

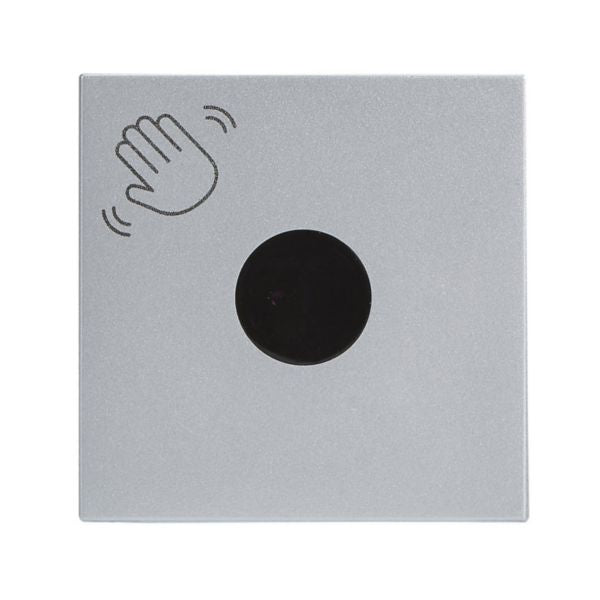

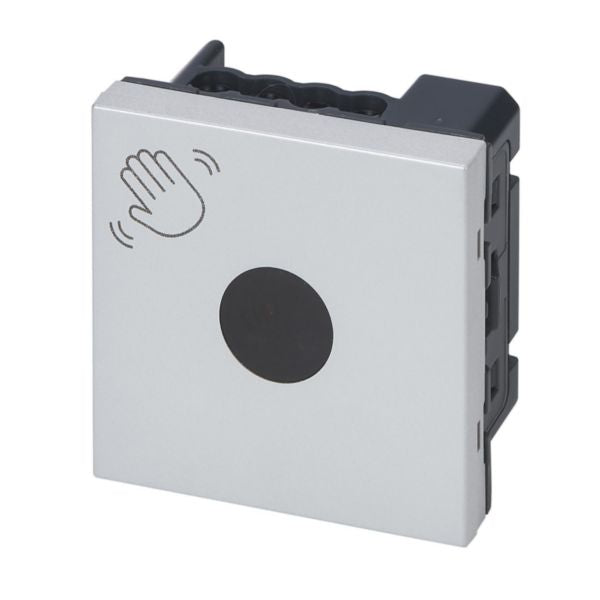

Shop Legrand Arteor Contactless Switch 200W LED Soft Alu | 574335 In Iraq Best Prices
Advanced contactless switch with laser optical sensor technology, 200W LED capacity, low 20mm depth, maintained/pulsed modes, works with or without neutral, IK04 impact resistant, IP40 protected.
The Arteor Contactless Switch 200W LED for Light in Soft Aluminium finish represents a revolutionary advancement in lighting control technology. This innovative switch features cutting-edge laser optical sensor technology that delivers exceptional responsiveness and reliability. Designed for seamless integration into modern home and building automation systems, it provides both maintained and pulsed mode operation for controlling relays or connected micromodules. The product boasts a remarkably low mechanism depth of just 20mm, making installation effortless in both flush-mounted boxes and surface-mounted frames without requiring neutral wiring in certain configurations.
This contactless switch is engineered to handle universal loads and LED retrofit applications with a rated capacity of 5-200W at 250V, 50-60Hz operation. The switch features an easily deactivatable locator light mode that enhances visibility when needed. With its thermoplastic construction and aluminium finish, it offers both durability and aesthetic appeal. The device incorporates advanced Triac technology for smooth, flicker-free dimming and control. Installation is straightforward with screwed terminals accepting 1.5-2.5mm² cable sections, and the switch operates efficiently with minimal standby consumption of just 0.3mA.
Perfect for residential and commercial applications, this Legrand product meets all modern installation constraints and complies with international safety standards. The IK04 impact resistance rating and IP40 protection degree ensure reliable performance in various environments. Whether used in one-way or two-way configurations, the Arteor contactless switch delivers superior integration with existing wiring device aesthetics while maintaining compatibility with standard installation practices.
Key Features
- Laser optical sensor technology for very reactive and responsive operation
- Dual-mode functionality: maintained and pulsed modes for relay or micromodule control
- Exceptionally low mechanism depth of 20mm for easy flush-mount or surface installation
- Works with or without neutral wiring for maximum installation flexibility
- Deactivatable locator light mode with intelligent visibility control
- Universal load and LED retrofit compatible with 5-200W capacity
- Thermoplastic construction with elegant aluminium finish
- Advanced Triac technology for smooth dimming without flicker
- IK04 impact resistance and IP40 protection degree
- Minimal standby consumption at 0.3mA for energy efficiency
Technical Specifications
| Specification |
Value |
| Product Reference | 574335 |
| EAN Code | 3414972314244 |
| Brand | Legrand |
| Product Line | Arteor |
| Type | Contactless Switch with Laser Optical Sensor |
| Assembly Type | Basic element with central cover plate |
| Model | Triac |
| Load Type | Universal and LED Retrofit |
| Nominal Voltage | 250V |
| Frequency | 50-60 Hz |
| Rated Current | 1A |
| Switch Capacity | 5-200W |
| HVAC Capacity | 5-200W |
| Width | 45mm |
| Height | 45mm |
| Depth | 26mm |
| Built-in Depth | 17.5mm |
| Mechanism Depth | 20mm |
| Minimum Installation Box Depth | 35mm |
| Impact Strength Rating | IK04 |
| Protection Degree | IP40 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -25°C to +70°C |
| Standby Consumption | 0.3mA |
| Neutral Requirement | Not mandatory |
| Material | Thermoplastic |
| Colour | Soft Aluminium |
| Surface Finishing | Matt |
| Connection Type | Screwed terminal |
| Number of Terminals | 4 |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Section | 1.5-2.5mm² |
| Fastening Type | Mounting with screw |
| Mounting Method | Flush-mount or surface-mount compatible |
| Operating Method | Network |
| Locator Light Mode | Deactivatable |
| Light Value Memory | No |
| Applicable with Button | Yes |
| Halogen Free | Yes |
| Contains Batteries | No |
| Programmable | No |
| Apple HomeKit Compatible | No |
| Google Assistant Compatible | No |
| Amazon Alexa Compatible | No |
| Stress Test Conformity | 1000V certified |
| Antimicrobial Treatment | No |
Order Legrand Arteor Contactless Switch 200W LED Soft Alu | 574335 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
