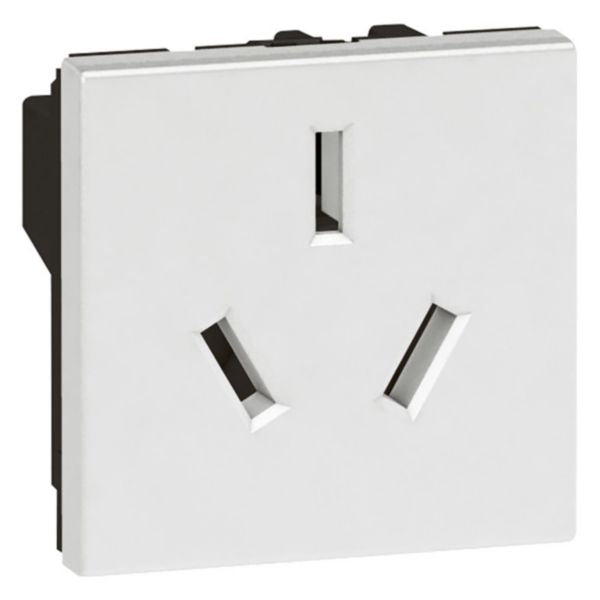

Shop Legrand Arteor Chinese Socket Outlet 10A 2P+E Shuttered White | 572113 In Iraq Best Prices
Premium Arteor Chinese socket outlet with 10A capacity, 2P+E shuttered design for child safety, white finish, 2 modules, halogen-free thermoplastic construction, and secure screwed terminal connections for reliable electrical installations.
The Arteor™ Chinese Socket Outlet is a premium electrical wiring device designed for international applications, specifically engineered for Chinese-standard electrical systems. This 10A, 2P+E shuttered socket outlet features advanced child safety protection with integrated shutters that prevent accidental contact with live parts. The device is manufactured from high-quality thermoplastic material with halogen-free construction, ensuring environmental compliance and safety standards. With a nominal voltage rating of 250V and frequency compatibility of 50-60 Hz, this socket is suitable for both residential and commercial installations.
This 2-module Arteor socket outlet comes equipped with a white rocker plate and is designed for snap mounting within standard module frames. The enhanced contact protection and shuttered design make it an ideal choice for family homes and child-friendly environments. The device features screwed terminal connections that accommodate flexible or rigid cables with cross-sections ranging from 4-4 mm², ensuring secure and reliable electrical connections. Its compact dimensions (45mm width x 45mm height x 29.7mm depth) allow for seamless integration into existing electrical installations.
The Arteor™ range represents Legrand's commitment to quality and innovation in electrical wiring solutions. This socket outlet complies with international safety standards and offers excellent durability with an impact strength rating of IK04 and IP40 protection degree. Operating temperature range of -5°C to 50°C ensures reliable performance in various environmental conditions. The product is RoHS compliant and includes comprehensive technical documentation for installers and end-users.
Key Features
- Chinese-standard 2P+E shuttered socket outlet with 10A nominal current rating
- Advanced child safety protection with integrated shutters preventing accidental contact
- Halogen-free thermoplastic material ensuring environmental compliance and safety
- Enhanced contact protection and IP40 degree protection rating for reliable performance
- Compact 2-module design with white rocker plate for seamless integration into module frames
- Screwed terminal connections accommodating 4-4 mm² flexible or rigid cables
- Operating temperature range -5°C to 50°C for versatile environmental conditions
- IK04 impact strength rating providing excellent durability and resistance
- 250V nominal voltage with 50-60 Hz frequency compatibility for international use
- RoHS compliant with comprehensive technical documentation and environmental profiles
Technical Specifications
| Specification |
Value |
| Product Type | Chinese Socket Outlet - 2P+E Shuttered |
| Nominal Current | 10 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Color | White (RAL 9003) |
| Material | Halogen-free Thermoplastic |
| Device Dimensions | Width 45mm x Height 45mm x Depth 29.7mm |
| Built-in Depth | 21.1 mm |
| Number of Socket Outlets | 1 |
| Protective Contact Type | Flat |
| Connection Type | Screwed Terminal |
| Cable Section Range | 4-4 mm² (flexible or rigid) |
| Child Safety Protection | Yes - Enhanced shuttered design |
| IP Protection Degree | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Mounting Method | Snap mounting in module frame |
| Surface Finishing | Glossy |
| Voltage Type | AC (Alternating Current) |
| Loop Through Function | Yes |
| RoHS Compliance | Yes |
| Product Reference | REF. 572113 |
| EAN Code | 3245065721133 |
Order Legrand Arteor Chinese Socket Outlet 10A 2P+E Shuttered White | 572113 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
