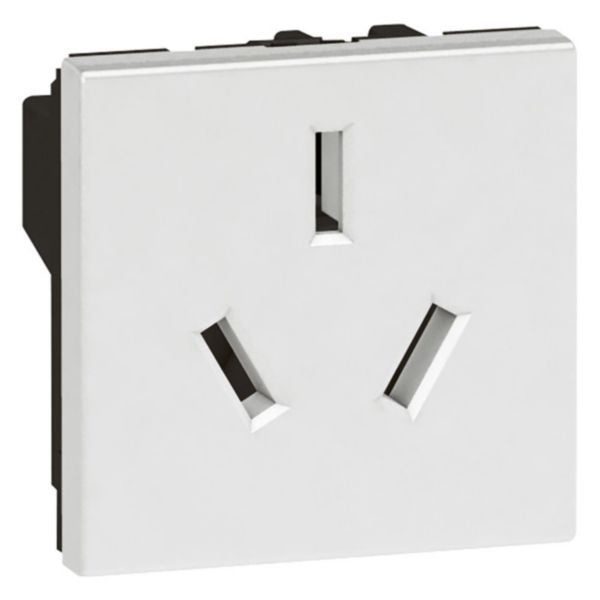

Shop Legrand Arteor Chinese Socket 16A 2P+E Shuttered White 2 Modules | 572121 In Iraq Best Prices
Premium Chinese socket outlet with 16A capacity, 2P+E shuttered design for child safety, white finish, 2 modules, IP40 protection, and advanced Legrand engineering for modern electrical installations.
The Arteor™ Chinese socket outlet is a premium quality electrical wiring device designed for modern residential and commercial installations. This 16A, 2P+E shuttered socket outlet features advanced child safety protection with its innovative shutter mechanism that prevents accidental contact with live electrical contacts. The socket is manufactured by Legrand, a leading global electrical equipment manufacturer, and meets international safety standards including IP40 degree of protection and IK04 impact resistance.
This socket outlet is part of the Arteor international range, which is recognized for its contemporary design and reliable performance. The unit features a white finish with a glossy surface, providing an elegant appearance that complements modern interior designs. It operates at 250V with a frequency range of 50-60 Hz, making it suitable for use in various geographic regions. The socket is equipped with screwed terminal connections that accommodate flexible or rigid cables with a cross-section of 0.5-0.5mm², ensuring secure and reliable electrical connections.
The Arteor Chinese socket outlet is housed in a thermoplastic, halogen-free material, demonstrating Legrand's commitment to environmental sustainability and safety. With its 2-module configuration and snap-mounting system, installation is straightforward and efficient. The device features enhanced contact protection and a loop-through function, allowing for convenient daisy-chaining in electrical installations. This socket outlet is ideal for users seeking a combination of safety, reliability, and aesthetic appeal in their electrical infrastructure.
Key Features
- Chinese 2P+E shuttered design with enhanced child safety protection mechanism
- 16A rated capacity at 250V with 50-60 Hz frequency compatibility
- Thermoplastic halogen-free material for environmental safety and sustainability
- IP40 degree of protection with IK04 impact resistance rating
- Screwed terminal connections supporting flexible or rigid cables 0.5-0.5mm²
- 2-module configuration with snap-mounting installation system
- Loop-through function enabling convenient daisy-chaining capabilities
- Contemporary white glossy finish complementing modern interior designs
- Operating temperature range -5°C to 50°C with storage range -10°C to 70°C
- Legrand premium quality engineering and international standards compliance
Technical Specifications
| Specification |
Value |
| Product Type | Chinese Socket Outlet |
| Rated Current | 16 A |
| Rated Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Configuration | 2P+E Shuttered |
| Number of Modules | 2 |
| Number of Socket Outlets | 1 |
| Color | White |
| RAL Number (Similar) | 9003 |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Built-in Depth | 36 mm |
| Connection Type | Screwed Terminal |
| Cable Section Range | 0.5-0.5 mm² |
| Operating Temperature | -5°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Voltage Type | AC |
| Mounting Method | Module Frame Snap Mounting |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| Protective Contact | Flat |
| Number of Active Contacts (Flat) | 2 |
| Concurrently Switching Neutral | No |
| Eject Mechanism | No |
| Reference Number | 572121 |
| EAN Code | 3245065721218 |
