Shop Legrand Arteor BS Wired Dimmer 300W 1-Gang with Neutral White | 574641 In Iraq Best Prices
Smart connected dimmer with Zigbee 3.0 technology, compatible with Apple HomeKit, Google Assistant, and Amazon Alexa. Features 150W maximum load capacity, LED indicator with locator function, and voice control capabilities through Home + Control app.

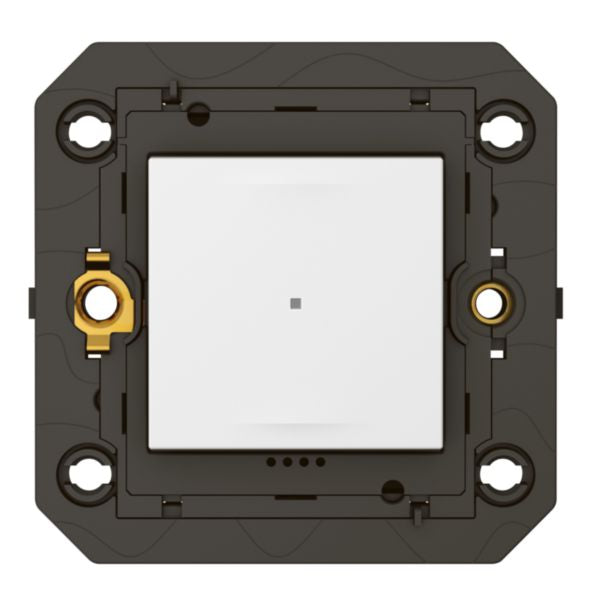

The Arteor™ BS wired dimmer 300W 1 gang with neutral in white is a sophisticated lighting control solution designed for modern homes and buildings. This connected smart switch features Zigbee 3.0 protocol technology operating at 2.4GHz, enabling seamless integration with popular voice assistants including Apple Siri, Google Assistant, and Amazon Alexa. The dimmer supports a maximum load power of 150W under 230V~, making it compatible with all types of dimmable loads including LED bulbs and retrofit lighting systems. Installation is straightforward, requiring only a standard 25mm depth flush mounting box without the need for additional bleeder installation.
This intelligent dimmer comes equipped with an LED indicator featuring a locator function that can be activated through the Home + Control app, providing visual feedback and convenient light location in dark environments. The device includes an auxiliary entry that accommodates one or more mechanical push buttons without lamps and connects wirelessly to compatible light switches. The Arteor BS dimmer utilizes advanced radio technology for reliable and secure communication, ensuring consistent performance across your smart home network. With its planar geometry design and high-quality glossy white finish, it offers perfect aesthetic integration with existing wiring devices while maintaining an easy-to-clean surface.
The product is fully programmable through smartphone applications available on both Apple App Store and Google Play Store, allowing users to customize lighting scenes, schedules, and automation routines. It features light value memory functionality and is applicable with various control methods including buttons, movement sensors, time switches, and transmission buttons. The dimmer operates at nominal voltage of 230V with a frequency range of 50-60Hz, drawing only 3.7mA in standby mode for energy efficiency. Its robust construction includes halogen-free materials and IK04 impact strength rating, ensuring durability in residential and small commercial applications.
Key Features
- Zigbee 3.0 wireless connectivity at 2.4GHz for reliable smart home integration
- Compatible with Apple HomeKit, Google Assistant, and Amazon Alexa voice commands
- LED indicator with activatable locator function via Home + Control app
- Supports all dimmable bulb types including LED retrofit lighting systems
- Auxiliary input for mechanical push buttons and wireless light switches
- Light value memory function for scene recall and automation
- Easy installation in standard 25mm depth flush mounting boxes without bleeder
- Planar geometry design with glossy white finish for aesthetic integration
- Programmable through smartphone apps on iOS and Android platforms
- Energy-efficient standby consumption of only 3.7mA
Technical Specifications
| Specification |
Value |
| Product Type | Wired Smart Dimmer Switch |
| Brand | Legrand Arteor™ |
| Reference Number | 574641 |
| EAN Code | 3414972219280 |
| Model | Tronic |
| Nominal Voltage | 230V AC |
| Frequency Range | 50-60 Hz |
| Maximum Load Power | 150W under 230V~ |
| Rated Current | 0.7A |
| Switch Capacity | 0-150W |
| Number of Channels | 1 |
| Standby Consumption | 3.7mA |
| Color | White |
| RAL Number | 9003 |
| Material | Thermoplastic |
| Surface Finishing | Glossy |
| Width | 81.5mm |
| Height | 81.5mm |
| Depth | 31mm |
| Built-in Depth | 20.5mm |
| Minimum Mounting Box Depth | 25mm |
| Mounting Method | Flush-mounted with screw fastening |
| Impact Strength Rating | IK04 |
| Protection Degree | IP20 |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | 0-45°C |
| Connection Type | Screwed terminal |
| Number of Terminals | 4 |
| Terminal Capacity | 1.5-4mm² |
| Cable Section | 1.5-4mm² |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Wireless Technology | Zigbee 3.0 at 2.4GHz |
| Compatible Voice Assistants | Apple Siri, Google Assistant, Amazon Alexa |
| Smart Home Compatibility | Apple HomeKit, Google Assistant, Amazon Alexa |
| Application Name | Home + Control |
| Application Platforms | iOS App Store, Google Play Store |
| Programmable | Yes |
| Interoperable Connection Protocol | Yes |
| Connectable by Internet Box | Yes |
| Light Value Memory | Yes |
| LED Indicator Function | Locator with app activation |
| Auxiliary Entry | Yes, for mechanical push buttons and wireless switches |
| Compatible Load Types | Universal and LED Retrofit |
| Substation Input | Yes |
| Applicable with Buttons | Yes |
| Applicable with Movement Sensors | Yes |
| Applicable with Time Switches | Yes |
| Applicable with Transmission Buttons | Yes |
| Product Use Function | Lighting management |
| Assembly Arrangement | Basic element with central cover plate |
| Contains Batteries | No |
