Shop Legrand Arteor BS Wired Dimmer 300W 1-Gang Without Neutral Soft Aluminium | 574639 In Iraq Best Prices
Smart connected dimmer with 300W capacity, Zigbee 3.0 technology, voice control compatibility, and elegant soft aluminium finish. Easy installation without neutral wire requirement.

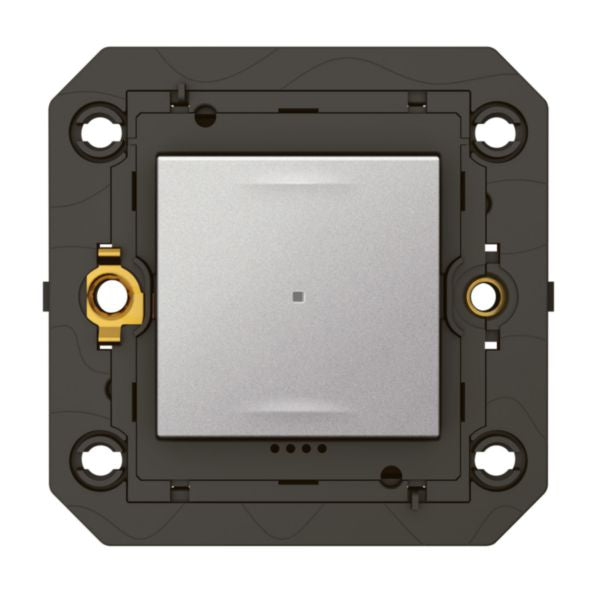

The Arteor BS Wired Dimmer 300W 1 Gang Without Neutral in Soft Aluminium is a sophisticated lighting control solution designed for modern homes and buildings. This connected switch features advanced Zigbee 3.0 wireless technology operating at 2.4GHz, providing reliable and secure communication with your smart home ecosystem. The dimmer supports a maximum load power of 200W under 230V with all types of dimmable loads, including LED bulbs with bleeder resistors, making it highly versatile for contemporary lighting installations.
This innovative dimmer is compatible with all major voice assistants including Google Assistant, Amazon Alexa, and Apple Siri, allowing you to control your lights through voice commands via the Home + Control App. The device features an LED indicator with locator function that can be activated through the app for convenient identification in low-light conditions. Installation is remarkably simple, requiring only a standard depth flush mounting box of 25mm, and importantly, it does not require a separate bleeder installation, saving time and reducing complexity.
The Arteor BS dimmer combines aesthetic elegance with functional excellence, featuring a planar geometry design that is easy to clean and maintain. Its thermoplastic construction with lacquered matt finish in soft aluminium color ensures durability and perfect integration with existing wiring devices. With support for IFTTT protocols and programmable features via smartphone apps, this dimmer offers comprehensive lighting management capabilities for residential and commercial applications.
Key Features
- Maximum load power of 200W under 230V with all dimmable loads including LED with bleeder
- Zigbee 3.0 wireless technology at 2.4GHz for reliable and secure smart home connectivity
- Compatible with Google Assistant, Amazon Alexa, and Apple Siri for voice control
- LED indicator with activatable locator function via Home + Control App
- No neutral wire required with standard 25mm flush mounting box installation
- Auxiliary entry for mechanical push buttons and wireless light switches
- Light value memory function for convenient dimming preferences
- Easy to clean planar geometry design with lacquered matt finish
- Programmable via smartphone apps with IFTTT protocol support
- Thermoplastic construction with halogen-free materials for safety
Technical Specifications
| Specification |
Value |
| Product Type | Wired Dimmer with Wireless Control |
| Model | Arteor BS Tronic |
| Reference Number | 574639 |
| EAN Code | 3414972219341 |
| Nominal Voltage | 230V AC |
| Frequency | 50-60 Hz |
| Maximum Load Power | 200W under 230V with dimmable loads including LED with bleeder |
| Switch Capacity Range | 5-300W |
| Rated Current | 1.3A |
| Number of Channels | 1 |
| Wireless Technology | Zigbee 3.0 at 2.4GHz |
| Installation Method | Flush-mounted |
| Mounting Box Depth | 25mm minimum |
| Built-in Depth | 22.5mm |
| Width | 81.8mm |
| Height | 81.5mm |
| Depth | 33mm |
| Material | Thermoplastic |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Color | Soft Aluminium |
| Degree of Protection | IP20 |
| Impact Strength | IK04 |
| Operating Temperature | 5-45°C |
| Storage Temperature | 0-45°C |
| Standby Consumption | 0.3mA |
| Neutral Wire Requirement | No |
| Connection Type | Screwed terminal |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-4mm² |
| Cable Section | 1.5-4mm² |
| Load Type Compatibility | Universal and LED Retrofit |
| Substation Input | Yes |
| Light Value Memory | Yes |
| Compatible Voice Assistants | Google Assistant, Amazon Alexa, Apple Siri |
| HomeKit Compatibility | Yes |
| Application Name | Home + Control |
| Available App Stores | App Store, Google Play Store |
| Halogen Free | Yes |
| Contains Batteries | No |
| Connected Object | Yes |
| Programmable | Yes |
| Fastening Type | Mounting with screw |
| Applicable with Button | No |
| Applicable with Movement Sensor | Yes |
| Applicable with Time Switch | Yes |
| Applicable with Transmission Button | Yes |
| Assembly Arrangement | Basic element with central cover plate |
