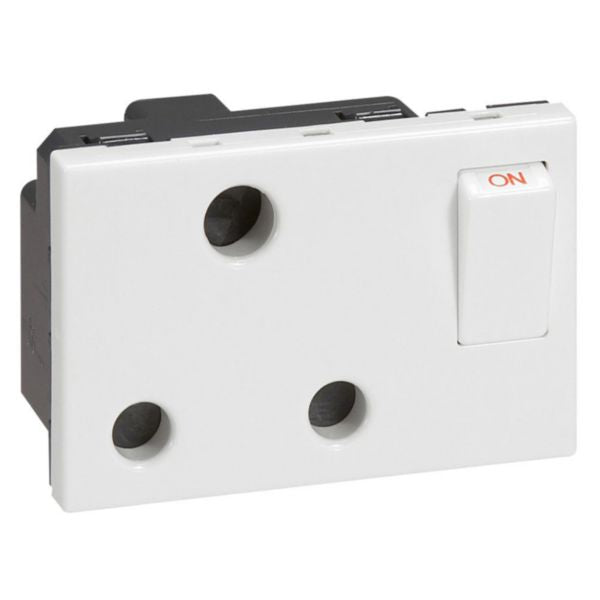

Shop Legrand Arteor BS 546 15A 2P+E Switched Socket White 3 Modules | 572132 In Iraq Best Prices
Premium Arteor socket outlet with BS 546 standard, 16A capacity, enhanced child safety shutters, and white finish for modern residential and commercial installations.
The Arteor™ Socket BS 546 15A 2P+E Switched is a premium wiring device designed for residential and commercial applications requiring reliable power distribution. This international socket outlet features a robust construction with enhanced contact protection and child safety shutters, making it ideal for modern homes and office environments. The 3-module design allows for flexible installation within standard frame systems, while the white finish complements contemporary interior designs. With a nominal current rating of 16A and 250V nominal voltage, this socket provides dependable performance for everyday electrical needs.
Manufactured by Legrand, a global leader in electrical infrastructure, this socket outlet incorporates advanced safety features including round protective contacts and shuttered design to prevent accidental contact. The device is constructed from halogen-free thermoplastic material, ensuring environmental compliance and durability. Suitable for IP40 degree of protection and IK04 impact strength, it withstands typical residential and light commercial use. The snap mounting system enables quick and secure installation without additional fastening requirements, while the loop-through function allows for convenient daisy-chaining of multiple outlets.
This socket outlet is compliant with British Standard specifications and includes enhanced contact protection for maximum safety. The screwed terminal connection type accommodates flexible or rigid cables with cross-sections from 4-4 mm², ensuring compatibility with standard wiring installations. Operating across a wide temperature range from -5°C to 50°C, this device maintains reliable performance in various environmental conditions, making it suitable for diverse geographical locations and climate zones.
Key Features
- British Standard BS 546 compliant socket outlet with 15A/16A capacity
- Enhanced contact protection and shuttered design for child safety
- 3-module configuration for flexible installation in standard frames
- Halogen-free thermoplastic construction for environmental compliance
- Loop-through function enabling daisy-chain connection of multiple outlets
- Snap mounting system for quick and secure installation
- IP40 degree of protection and IK04 impact strength rating
- Wide operating temperature range from -5°C to 50°C
- Screwed terminal connection supporting 4-4 mm² cable sections
- White finish complementing contemporary interior designs
Technical Specifications
| Specification |
Value |
| Product Name | Arteor™ Socket BS 546 15A 2P+E Switched |
| Reference Number | 572132 |
| EAN Code | 3245065721324 |
| Standard | British Standard (BS 546) |
| Socket Type | South African type, 2P+E switched |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Modules | 3 modules |
| Number of Socket Outlets | 1 |
| Protective Contact | Round |
| Material | Halogen-free thermoplastic |
| Color | White (RAL 9003) |
| Device Width | 41.5 mm |
| Device Height | 45 mm |
| Device Depth | 41.5 mm |
| Built-in Depth | 28.5 mm |
| Degree of Protection | IP40 |
| Impact Strength | IK04 |
| Operating Temperature Range | -5 to 50 °C |
| Storage Temperature Range | -10 to 70 °C |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² |
| Mounting Method | Module frame with snap mounting |
| Child Safety | Shuttered for child safety |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| On/Off Switch | Yes |
| Switch Operator Color | White |
| Voltage Type | AC |
| Manufacturer | Legrand |
| Product Range | Arteor (International) |
