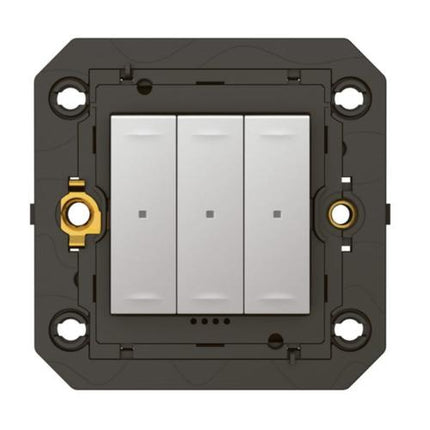

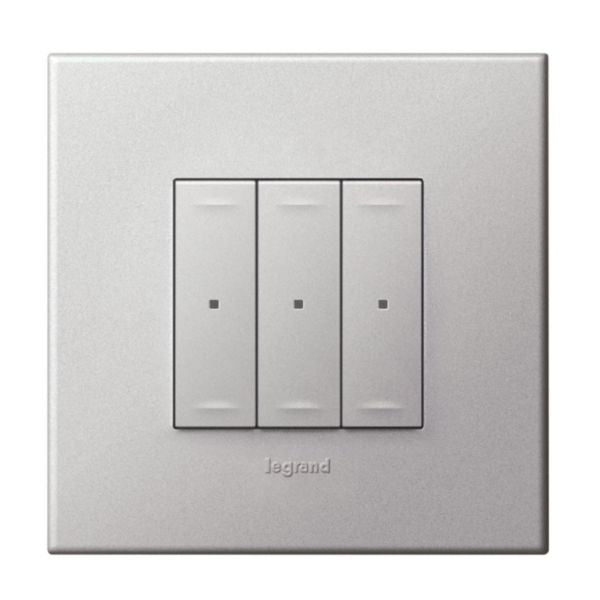

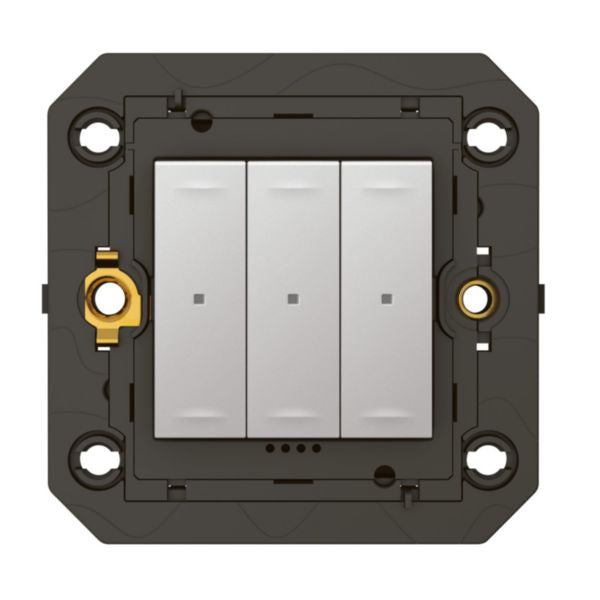

Shop Legrand Arteor BS 3-Gang Light Switch Without Neutral Soft Aluminium | 574627 In Iraq Best Prices
Smart 3-gang light switch with Zigbee 3.0 connectivity, voice control, and no neutral wire requirement. Compatible with LED and dimmable bulbs, 600W capacity, easy flush-mount installation.
The Arteor™ BS wired light switch 3 gang without neutral in Soft Aluminium is a sophisticated smart home lighting control solution designed for modern residential and commercial applications. This connected switch features advanced Zigbee 3.0 technology operating on 2.4GHz frequency, providing reliable and secure wireless communication. The device is compatible with traditional and dimmable bulbs, including LED lighting, with a maximum load power capacity of 600W under 230VAC. The switch is equipped with an intelligent LED indicator with locator function that can be activated through the dedicated mobile application, enhancing user convenience and safety.
Installation of this Arteor BS switch is straightforward and requires only a standard depth flush mounting box of 25mm, making it ideal for retrofitting existing installations. The switch operates without requiring a neutral wire connection, though it comes supplied with a bleeder for optimal performance. The device features multi-zone ergonomics with an intuitive ON/OFF mode that works seamlessly with all types of traditional and dimmable loads. The sleek Soft Aluminium finish with matt lacquered surface protection provides perfect aesthetic integration with existing wiring devices and interior design schemes.
This intelligent switch offers comprehensive smart home integration with support for major voice assistants including Google Assistant, Amazon Alexa, and Apple Siri through the Home + Control application. The Zigbee 3.0 protocol ensures interoperability with compatible Internet boxes and smart home ecosystems. With programmable scheduling capabilities, IFTTT support compatibility, and smartphone app control via both App Store and Google Play Store, users enjoy complete lighting management from anywhere. The device maintains low standby consumption at 0.1mA and operates efficiently across a temperature range of 5-45°C, ensuring reliable performance in various environmental conditions.
Key Features
- Zigbee 3.0 wireless technology with 2.4GHz frequency for reliable secure connectivity
- Compatible with traditional, dimmable, and LED bulbs with 600W maximum load capacity
- No neutral wire required - operates without neutral connection using integrated bleeder
- Smart voice control integration with Google Assistant, Amazon Alexa, and Apple Siri
- LED indicator with programmable locator function controllable via mobile app
- Easy flush-mount installation in standard 25mm depth mounting boxes
- Programmable scheduling and automation through Home + Control smartphone application
- Low standby power consumption at 0.1mA for energy efficiency
- Soft Aluminium finish with matt lacquered surface for aesthetic home integration
- IFTTT compatibility for advanced automation and smart home ecosystem integration
Technical Specifications
| Specification |
Value |
| Product Type | 3-Gang Light Switch with Relay |
| Brand | Legrand Arteor |
| Model | Relay |
| Reference Number | 574627 |
| EAN Code | 3414972219822 |
| Nominal Voltage | 230V AC |
| Frequency Range | 50-60 Hz |
| Rated Current | 0.9 A |
| Maximum Load Power | 600W at 230VAC (all loads including LEDs) |
| Switch Capacity | 15-200W |
| Number of Channels | 3 channels |
| Wireless Technology | Zigbee 3.0 Protocol at 2.4GHz |
| Neutral Wire Required | No - operates without neutral |
| Mounting Method | Flush-mounted in standard boxes |
| Minimum Box Depth | 25mm |
| Dimensions Width | 81.5mm |
| Dimensions Height | 81.5mm |
| Dimensions Depth | 33mm |
| Built-in Depth | 22.5mm |
| Material | Thermoplastic |
| Color | Soft Aluminium |
| Surface Finishing | Matt Lacquered |
| Impact Strength Rating | IK04 |
| Degree of Protection | IP20 |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | 0-45°C |
| Standby Power Consumption | 0.1mA |
| Connection Type | Screwed Terminal |
| Number of Terminals | 4 terminals |
| Terminal Capacity | 1.5-4mm² |
| Cable Section | 1.5-4mm² |
| Type of Load | Universal and LED Retrofit |
| Compatible with Apple HomeKit | Yes |
| Compatible with Google Assistant | Yes |
| Compatible with Amazon Alexa | Yes |
| Voice Command Support | Yes |
| Programmable | Yes |
| IFTTT Support | Compatible |
| Application Name | Home + Control |
| Application Stores | App Store, Google Play Store |
| Halogen Free | Yes |
| LED Indicator | Yes with locator function |
| Auxiliary Entry | Yes for mechanical push buttons |
| Intercom Compatible | Yes - applicable with movement sensor and time switch |
Order Legrand Arteor BS 3-Gang Light Switch Without Neutral Soft Aluminium | 574627 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
