Description

Shop Legrand Arteor Australian Socket Outlet 10A 2P+E Shuttered Magnesium | 572614 In Iraq Best Prices

Premium Australian 10A socket outlet with child-safe shuttering, magnesium finish, and advanced safety features for modern electrical installations

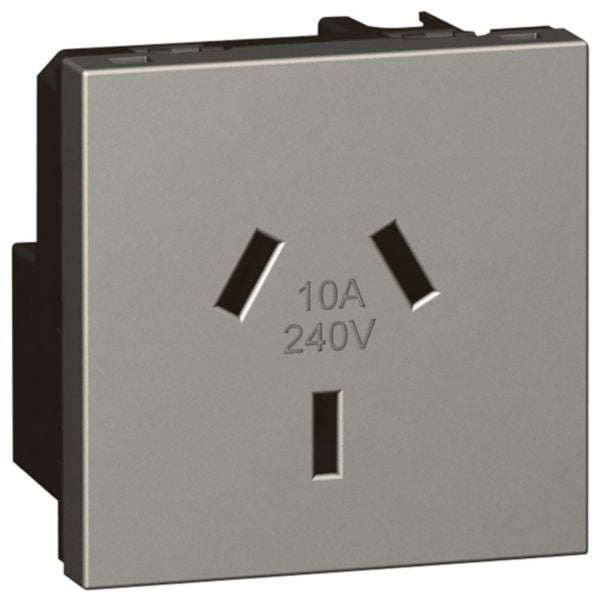

The Arteor™ Australian Socket Outlet is a premium electrical outlet designed for modern residential and commercial installations. This 10A, 2P+E auto-switched shuttered socket meets the Australian standard AS/NZS 3112 (Type I) specifications. The socket features enhanced child safety protection with automatic shuttering mechanism that prevents accidental contact with live contacts. The magnesium finish provides a contemporary aesthetic while maintaining durability and professional appearance in any interior setting. This two-module socket outlet is manufactured from high-quality thermoplastic material and is halogen-free, making it environmentally responsible and safe for use in sensitive environments. The device features screwed terminal connections suitable for both flexible and rigid cables with cross-sections ranging from 4-4 mm². The socket includes a loop-through function with integrated on/off switch for convenient power control. With an IP40 degree of protection and IK04 impact resistance rating, this outlet is suitable for standard indoor applications. The Arteor socket outlet operates at 240V with 50-60 Hz frequency compatibility, making it ideal for Australian electrical standards. The flush-mounted installation method with snap mounting engagement ensures quick and secure installation. Operating temperatures range from -5°C to 50°C, while storage temperatures support -10°C to 70°C. This product is RoHS compliant and comes with comprehensive technical documentation and Fair Trading certification for complete peace of mind.

Key Features

Australian Standard AS/NZS 3112 Type I Compliance
Child Safety Shuttering with Auto-Switched Protection
Halogen-Free Thermoplastic Material Construction
Loop-Through Function with Integrated On/Off Switch
Magnesium Finish for Contemporary Aesthetic Appeal

Technical Specifications

Specification	Value
Product Reference	572614
EAN Code	3245065726145
Standard	Australian AS/NZS 3112 (Type I)
Nominal Current	10 A
Nominal Voltage	240 V
Frequency	50-60 Hz
Number of Modules	2
Socket Type	2P+E Auto-Switched Shuttered
Number of Active Contacts (Flat)	2
Protective Contact	Flat
Connection Type	Screwed Terminal
Cable Section Range	4-4 mm²
Material	Thermoplastic
Colour	Aluminium/Magnesium
Surface Finishing	Matt Lacquered
Halogen Free	Yes
Device Width	45 mm
Device Height	45 mm
Device Depth	32 mm
Built-in Depth	23.4 mm
IP Degree of Protection	IP40
Impact Strength Rating	IK04
Operating Temperature Range	-5°C to 50°C
Storage Temperature Range	-10°C to 70°C
Voltage Type	AC
Mounting Method	Flush-Mounted
Type of Fastening	Snap Mounting (Engagement)
With Enhanced Contact Protection	Yes
With Loop Through Function	Yes
With On/Off Switch	Yes
Concurrently Switching Neutral Conductor	No
RoHS Compliance	Yes

Order Legrand Arteor Australian Socket Outlet 10A 2P+E Shuttered Magnesium | 572614 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
