Shop Legrand Arteor Australian Socket 10A 2P+E Auto-Switched White | 572114 In Iraq Best Prices
Premium Australian 10A socket outlet with auto-switched shuttered safety technology, white finish, 2-module configuration, and full compliance with AS/NZS 3112 standards.

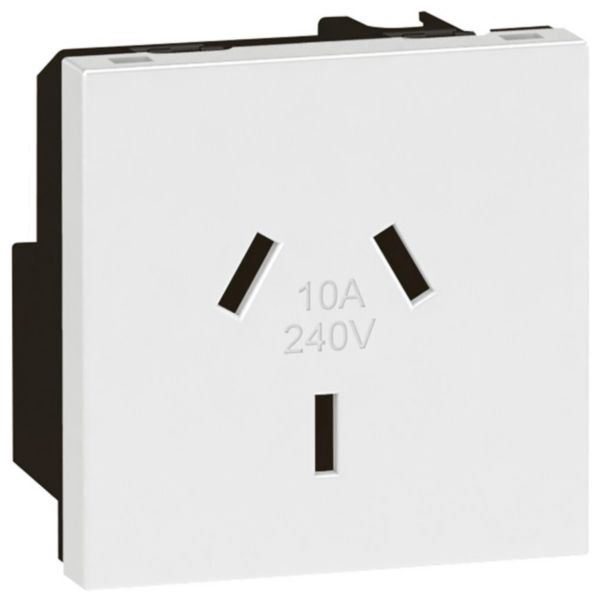

The Legrand Arteor Australian socket outlet (Model 572114) is a premium 10A electrical outlet designed to meet Australian standard AS/NZS 3112 (Type I) specifications. This high-quality wiring device features advanced safety mechanisms including auto-switched shuttered contacts that provide enhanced child safety protection. The socket is constructed with thermoplastic material that is halogen-free, ensuring environmental compliance and durability. With its sleek white finish and 2-module configuration, this outlet seamlessly integrates into modern residential and commercial installations while maintaining aesthetic appeal.
This Australian-standard socket outlet delivers reliable performance with a nominal voltage of 240V and operates efficiently at 50-60 Hz frequency. The device features screwed terminal connections accommodating flexible or rigid cables with a section range of 4-4 mm², making installation straightforward for certified electricians. The enhanced contact protection and loop-through function enable flexible circuit configurations and daisy-chaining capabilities. With an IP40 degree of protection and IK04 impact strength rating, this socket is suitable for standard indoor environments and light-duty applications.
The Arteor socket outlet combines functionality with safety, featuring auto-switched shuttered technology that automatically closes when not in use, protecting children from accidental contact with live contacts. The white color (RAL 9003) complements any interior design scheme, while the 2-module design allows for flexible installation options with compatible support frames and plates. This product is manufactured to the highest standards and includes comprehensive documentation, CAD specifications, and compliance certifications for professional installation.
Key Features
- Auto-switched shuttered contacts for enhanced child safety protection
- Australian standard AS/NZS 3112 Type I compliance
- Halogen-free thermoplastic construction for environmental safety
- Loop-through function enabling flexible circuit configurations
- IP40 protection rating suitable for standard indoor environments
- Screwed terminal connections accommodating 4-4 mm² cable sections
- 10A nominal current at 240V with 50-60 Hz frequency operation
- 2-module design with white finish (RAL 9003)
- IK04 impact strength rating for durability
- Compatible with Legrand support frames and mounting systems
Technical Specifications
| Specification |
Value |
| Product Model | Australian standard AS/NZS 3112 (Type I) |
| Nominal Current | 10 A |
| Nominal Voltage | 240 V |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Socket Type | 2P+E auto-switched shuttered |
| Protective Contact | Flat |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4 mm² |
| Material | Halogen-free thermoplastic |
| Color | White (RAL 9003) |
| Device Dimensions | 45 x 45 x 32 mm |
| Built-in Depth | 23.4 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5 to +50 °C |
| Storage Temperature | -10 to +70 °C |
| Mounting Method | Module frame with snap mounting |
| Surface Finishing | Glossy |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| On/Off Switch | Yes |
| Switch Operator Color | White |
| Reference Number | 572114 |
| EAN Code | 3245065721140 |
Order Legrand Arteor Australian Socket 10A 2P+E Auto-Switched White | 572114 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
