Shop Legrand Arteor Australian Socket 10/15A 2P+E Shuttered 2 Modules Soft Alu | 572107 In Iraq Best Prices
Premium Australian socket outlet with 10/15A capacity, child-safe shuttered design, soft aluminum finish, and full compliance with AS/NZS 3112 standards for secure residential and commercial installations.

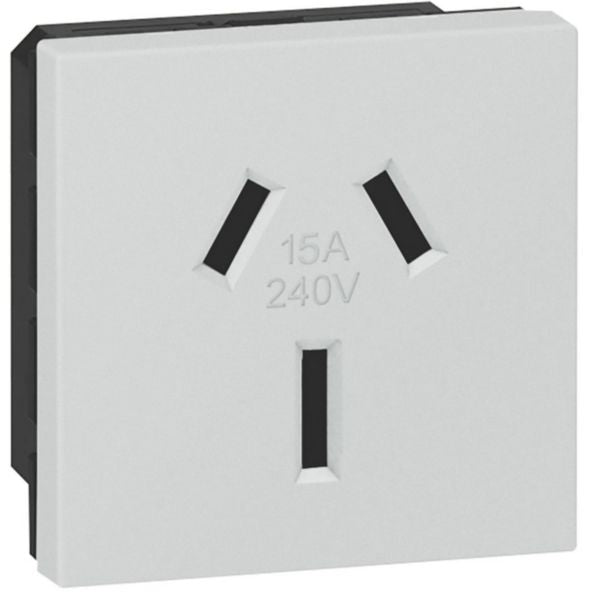

The Arteor™ Australian Socket (REF. 572107) is a premium electrical outlet designed to meet Australian standards AS/NZS 3112 (Type I). This 2-module socket outlet features a 10/15 A rated capacity with enhanced child safety through shuttered 2P+E design. The soft aluminum finish provides a modern aesthetic while maintaining durability and professional appearance in any residential or commercial installation. Manufactured by Legrand, a global leader in electrical and digital building infrastructures, this socket combines functionality with safety standards compliance.
Key features include screwed terminal connections for secure wire attachment, snap mounting capability for easy installation, and IP40 degree of protection suitable for standard indoor environments. The device operates at 240V AC with 50-60 Hz frequency compatibility, making it ideal for Australian electrical systems. With IK04 impact resistance rating, this outlet withstands everyday wear and tear in busy residential or commercial spaces. The halogen-free plastic construction ensures environmental compliance and safety.
The Arteor international socket outlet system is supplied with rocker plates and must be equipped with support frames and plates for complete installation. This modular design allows for flexible configuration in various electrical applications. Whether you're upgrading existing installations or planning new electrical infrastructure, this Australian socket outlet delivers reliability, safety, and compliance with local electrical codes.
Key Features
- Australian standard AS/NZS 3112 Type I compliance with 2P+E shuttered design for enhanced child safety
- 10/15 A rated capacity with 240V AC operation at 50-60 Hz frequency
- 2-module configuration with soft aluminum finish for modern aesthetic appeal
- Screwed terminal connections for secure and reliable wire attachment
- Snap mounting system for quick and easy installation on module frames
- IP40 degree of protection suitable for standard indoor environments
- IK04 impact resistance rating for durability in high-traffic areas
- Halogen-free thermoplastic construction for environmental and safety compliance
- Loop-through function capability for flexible electrical configurations
- Device dimensions: 45mm width x 45mm height x 41mm depth with 31.5mm built-in depth
Technical Specifications
| Specification |
Value |
| Product Reference | 572107 |
| EAN Code | 3414971845343 |
| Standard Compliance | Australian AS/NZS 3112 (Type I) |
| Socket Type | 2P+E Shuttered Australian Socket |
| Rated Current | 10/15 A |
| Rated Voltage | 240 V AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 |
| Protective Contact Type | Flat |
| Connection Type | Screwed terminal |
| Cable Section Range | 4-4 mm² |
| Mounting Method | Module frame with snap mounting |
| Material | Halogen-free thermoplastic |
| Colour | Soft Aluminium |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 31.5 mm |
| Operating Temperature Range | -5 to +50 °C |
| Storage Temperature Range | -10 to +70 °C |
| Child Safety Feature | Yes - Shuttered design with enhanced contact protection |
| Voltage Type | AC (Alternating Current) |
| Loop Through Function | Yes |
| Surface Finishing | Glossy |
| Manufacturer | Legrand |
| Product Line | Arteor International |
Order Legrand Arteor Australian Socket 10/15A 2P+E Shuttered 2 Modules Soft Alu | 572107 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
