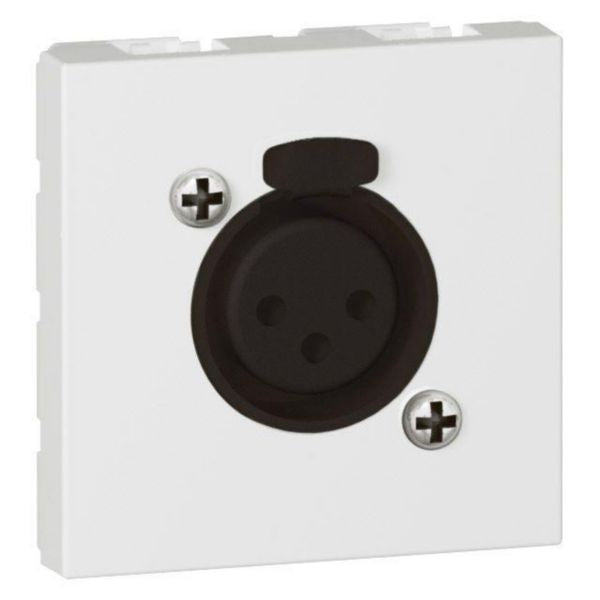

Shop Legrand Arteor 3-Pole XLR Socket Female 2 Modules White | 572283 In Iraq Best Prices
Professional 3-pole XLR female socket with 2-module Arteor design, featuring fast screw connection, halogen-free construction, and IP40 protection for audio/video applications.
The Arteor 3-pole XLR socket is a professional-grade audio/video connector designed for seamless integration into modern wiring systems. This female socket provides reliable stereo link connections for peripheral devices including microphones, amplifiers, mixing consoles, and other professional audio equipment. With its fast screw connection mechanism and robust thermoplastic construction, this socket ensures secure and durable audio signal transmission in both residential and commercial installations.
Featuring a 2-module configuration in elegant white finish, this XLR socket is compatible with shielded audio pair cables ranging from 0.14mm² to 0.50mm², with a maximum recommended cable length of 50 meters without amplification. The flush-mounted design integrates seamlessly with Arteor modular wiring systems, offering IP40 protection rating and IK04 impact resistance. Its halogen-free construction meets modern environmental and safety standards, making it ideal for professional audio installations, home theater systems, and commercial AV setups.
The socket operates reliably across a wide temperature range from -5°C to 50°C, with storage capability from -10°C to 70°C, ensuring consistent performance in various environmental conditions. Built with precision-engineered components and compliant with RoHS and REACH regulations, this Legrand product represents the perfect balance of professional quality, safety, and aesthetic design for modern audio-visual installations.
Key Features
- 3-pole XLR female socket for professional audio/video connections
- Fast screw connection mechanism for secure cable attachment
- Compatible with shielded audio cables 0.14mm² to 0.50mm²
- Maximum cable length up to 50 meters without amplifier
- Halogen-free thermoplastic construction for safety and environmental compliance
- 2-module Arteor modular wiring system integration
- IP40 protection rating for dust and splash resistance
- IK04 impact resistance for durability
- Operating temperature range -5°C to 50°C
- White glossy finish with elegant design
Technical Specifications
| Specification |
Value |
| Product Type | 3-pole XLR Socket - Female |
| Material | Thermoplastic (Halogen-free) |
| Color | White (RAL 9003) |
| Number of Modules | 2 modules |
| Contact Type | Female |
| Mounting Method | Flush-mounted |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Built-in Depth | 34 mm |
| Minimum Depth of Installation Box | 40 mm |
| Cable Compatibility | Shielded audio pair 0.14mm² to 0.50mm² |
| Maximum Cable Length | 50 meters (without amplifier) |
| Connection Type | Fast screw connection |
| Protection Rating | IP40 |
| Impact Resistance | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Surface Finishing | Glossy |
| Fastening Type | Engage (snap) |
| Suitable for Connectors | 1 connector |
| With Dust Cover | No |
| With Hinged Lid | No |
| Outlet Direction | Straight |
| Assembly Arrangement | Basic element with central cover plate |
| Support Ring | No |
| Antimicrobial Treatment | No |
| Regulatory Compliance | RoHS Directive, REACH Declaration |
| Brand | Legrand |
| Reference Number | 572283 |
| EAN Code | 3245065722833 |
Order Legrand Arteor 3-Pole XLR Socket Female 2 Modules White | 572283 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
