Shop Legrand Arteor 2-Way Switch with Indicator 250V 10AX Round Magnesium | 573116 In Iraq Best Prices
Premium 2-way switch with LED indicator, 10AX 250V capacity, modular magnesium design, IP40 protection, ideal for residential and commercial lighting control applications

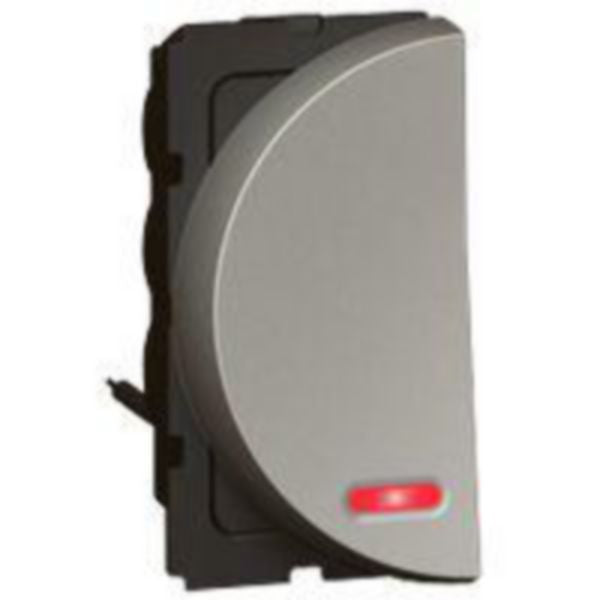

The Arteor™ 2-way switch with indicator is a premium wiring device designed for modern residential and commercial installations. This round version switch features a 10 AX 250 V~ rated capacity, making it suitable for standard lighting and low-power applications. The switch incorporates an optional LED indicator function that illuminates when the switch is in the ON position, providing convenient visual feedback. With its elegant magnesium construction and gray color finish, this single-module device seamlessly integrates into contemporary interior designs.
This modular switching mechanism is engineered for reliability and ease of installation. The rocker-button operation provides intuitive control, while the snap-on engagement system ensures secure mounting within standard installation boxes. The device features a built-in depth of 28.5 mm and is compatible with minimum 30 mm deep installation boxes. The halogen-free thermoplastic material construction ensures environmental compliance and safety standards compliance.
The Arteor™ switch operates across a wide temperature range from -5°C to 50°C, with storage capabilities up to 70°C, ensuring consistent performance in various climatic conditions. With IP40 degree of protection and IK04 impact strength rating, this switch withstands daily wear and tear. The device accommodates cable sections from 4-4 mm² with screwed terminal connections, providing secure and reliable electrical connections for both 50-60 Hz AC applications.
Key Features
- 2-way switching functionality with 10 AX 250 V~ rated capacity
- Optional LED indicator illuminates in ON position for visual feedback
- Single modular device compatible with standard installation frames
- Halogen-free thermoplastic material for environmental and safety compliance
- Wide operating temperature range -5°C to 50°C with reliable performance
- IP40 degree of protection and IK04 impact strength rating
- Rocker-button operation for intuitive and ergonomic control
- Screwed terminal connections for secure 4-4 mm² cable sections
- Matt gray finish magnesium construction for aesthetic appeal
- Compatible with 50-60 Hz AC frequency applications
Technical Specifications
| Specification |
Value |
| Product Type | 2-Way Switch with Indicator |
| Brand | Legrand - Arteor™ |
| Reference Number | 573116 |
| EAN Code | 3245065731163 |
| Rated Voltage | 250 V AC |
| Rated Current | 10 A |
| Switching Current for Fluorescent Lamps | 10 AX |
| Method of Operation | Rocker/Button |
| Number of Modules | 1 Left Module |
| Mounting Method | Module Frame (Snap Engagement) |
| Material | Thermoplastic - Halogen Free |
| Color | Gray (Matt Finish) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 42.2 mm |
| Built-in Depth | 28.5 mm |
| Minimum Installation Box Depth | 30 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Frequency | 50-60 Hz |
| Cable Section Capacity | 4-4 mm² |
| Connection Type | Screwed Terminal |
| Lighting Function | Optional LED Indicator (Illuminated ON) |
| LED Type | Exchangeable |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Antimicrobial Treatment | No |
| Smart Home Compatible | Not Compatible with Apple HomeKit, Google Assistant, or Amazon Alexa |
Order Legrand Arteor 2-Way Switch with Indicator 250V 10AX Round Magnesium | 573116 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
