Description

Shop Legrand Arteor 2-Way Switch 250V 10AX Round Magnesium | 573114 In Iraq Best Prices

Premium Arteor 2-way switch with 10AX 250V rating, magnesium finish, modular design for domestic switching applications with rocker mechanism and screwed terminals

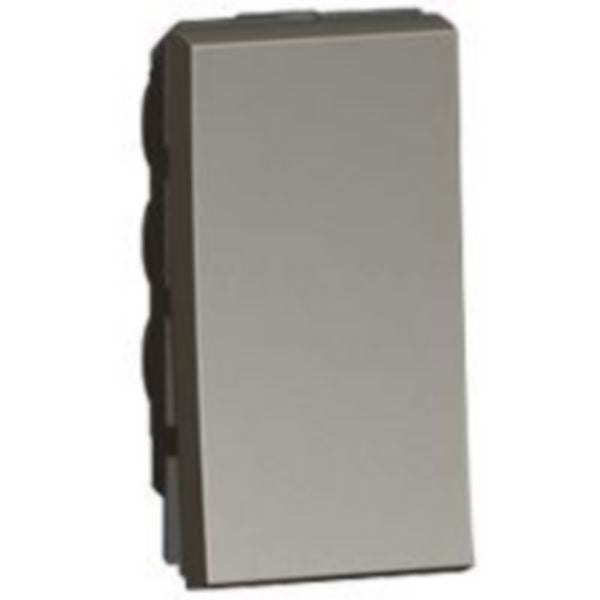

The Arteor™ 2-way switch is a premium mechanical switching device designed for domestic and commercial applications. This round-version switch features a 10 AX rated current at 250V~ AC voltage, making it suitable for standard lighting and power control applications. The switch is constructed with a single middle module in a magnesium finish, providing both durability and aesthetic appeal. The device operates with a rocker/button mechanism and is designed for modular installation within standard electrical frames and plates. This switch mechanism is part of the Arteor™ collection by Legrand, manufactured to the highest standards with thermoplastic material construction and halogen-free composition for safety compliance. The magnesium-colored finish offers a modern, professional appearance suitable for contemporary interior designs. The switch features screwed terminal connections for reliable electrical contact and is rated for two-way switching applications, allowing control of lighting fixtures from multiple locations. With its compact dimensions of 22.5mm width and 45mm height, this switch module integrates seamlessly into standard electrical installation boxes. The device is designed to work with mounting plates and support frames (sold separately) and includes protective features with IK04 impact resistance rating and IP40 protection degree. Operating temperature range from -5°C to 50°C ensures reliable performance in various environmental conditions.

Key Features

  • Two-way switch mechanism for multi-location lighting control
  • 10 AX rated current at 250V~ AC voltage specification
  • Halogen-free thermoplastic construction for safety compliance
  • Single modular device with magnesium finish aesthetic
  • IK04 impact resistance with IP40 protection degree
  • Screwed terminal connections for reliable electrical contact
  • Operating temperature range -5°C to 50°C
  • Compact dimensions 22.5mm width x 45mm height
  • Rocker/button operation mechanism
  • Compatible with standard electrical installation frames

Technical Specifications

Specification Value
Product Type2-Way Mechanical Switch
Rated Current10 A
Nominal Voltage250 V AC
Switching Current for Fluorescent Lamps10 AX
Number of Modules1 Middle Module
MaterialThermoplastic (Halogen-free)
ColorMagnesium Grey
Operation MethodRocker/Button
Connection TypeScrewed Terminal
Device Width22.5 mm
Device Height45 mm
Device Depth42.2 mm
Built-in Depth28.5 mm
Minimum Built-in Installation Box Depth30 mm
Impact Strength RatingIK04
Degree of ProtectionIP40
Operating Temperature Range-5°C to 50°C
Storage Temperature Range-10°C to 70°C
Frequency50-60 Hz
Cable Section4-4 mm²
Surface FinishingMatt Lacquered
Mounting MethodModule Frame (Snap Engage)
Antimicrobial TreatmentNo
Push Button SwitchNo
Lighting FeatureNo
Smart Home CompatibilityNot compatible with Apple HomeKit, Google Assistant, or Amazon Alexa
Reference Number573114
EAN Code3245065731149
BrandLegrand
Product CollectionArteor™

Order Legrand Arteor 2-Way Switch 250V 10AX Round Magnesium | 573114 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
