Shop Legrand Arteor Double USB Type-C Charging Socket 3A 15W 230V Soft Aluminium | 570078 In Iraq Best Prices
Premium dual USB Type-C charging socket with 3A/15W power output, soft aluminium finish, IEC 62684 compliant, ideal for modern device charging in residential and commercial settings

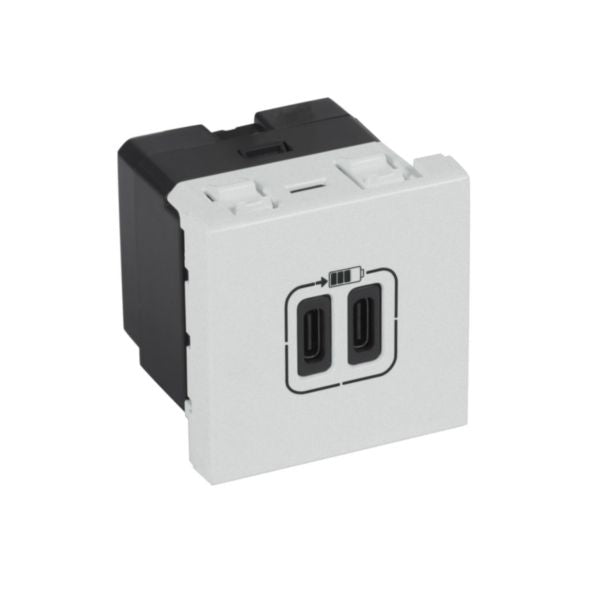

The Arteor 2 USB Type-C charging socket is a premium dual-port USB charging solution designed for modern residential and commercial applications. This innovative device features two USB Type-C ports capable of delivering 3A at 15W power output, making it ideal for simultaneously charging multiple portable devices including smartphones, tablets, and other USB-C equipped gadgets. The socket operates at 230V AC input with 50-60Hz frequency, converting to stable 5V DC output for safe device charging.
Built with high-quality materials and finished in sophisticated Soft Aluminium, this Arteor socket combines aesthetic appeal with functional excellence. The device measures 45mm x 45mm x 42mm and requires a minimum built-in installation depth of 40mm, making it compatible with standard electrical installation boxes. Featuring IEC 62684-2011-01 compliance and low standby consumption, this USB charging socket incorporates advanced safety features and halogen-free construction. The unit comes as a 2-module configuration and is supplied with rocker plates, requiring separate support frames and installation plates for complete setup.
The Arteor USB Type-C charging socket is engineered for reliability with impact strength rating of IK04 and IP40 degree of protection, ensuring durability in various indoor environments. With screwed terminal connections accommodating cable sections from 1.5-2.5mm², this device integrates seamlessly into modern electrical installations. The soft aluminium finish provides an elegant appearance that complements contemporary interior design while maintaining professional functionality.
Key Features
- Dual USB Type-C ports for simultaneous charging of multiple devices
- 230V AC to 5V DC conversion with 3A maximum output current per port
- IEC 62684-2011-01 compliance ensuring international safety standards
- Low standby consumption with halogen-free construction for environmental safety
- Premium soft aluminium finish with elegant contemporary design aesthetic
- IP40 degree of protection and IK04 impact strength rating for durability
- Screwed terminal connections accommodating 1.5-2.5mm² cable sections
- 2-module configuration with rocker plates included for easy installation
Technical Specifications
| Specification |
Value |
| Product Model | Arteor 2 USB Type-C Charging Socket |
| Reference Number | 570078 |
| EAN Code | 3414971851641 |
| Number of USB Ports | 2 USB Type-C ports |
| Input Voltage | 100-240V AC, 50-60Hz |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A per port) |
| Power Output | 15W total |
| Power Consumption | 0.064W (standby) |
| Number of Modules | 2 modules |
| Device Dimensions | 45mm (W) × 45mm (H) × 42mm (D) |
| Minimum Installation Depth | 40mm |
| Built-in Depth | 33mm |
| Colour | Soft Aluminium |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Section Range | 1.5-2.5mm² (flexible or rigid) |
| Number of Terminals | 2 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Mounting Method | Flush-mounted |
| Compliance Standard | IEC 62684-2011-01 |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Power Delivery Support | No |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Included Accessories | Rocker plates (support frames and installation plates required separately) |
Order Legrand Arteor Double USB Type-C Charging Socket 3A 15W 230V Soft Aluminium | 570078 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
