Shop Legrand Arteor Double USB Type-C Charging Socket 3A 15W Magnesium | 572572 In Iraq Best Prices
Premium dual USB Type-C charging socket with 3A/15W output, magnesium finish, IP40 protection, and halogen-free construction for modern electrical installations.

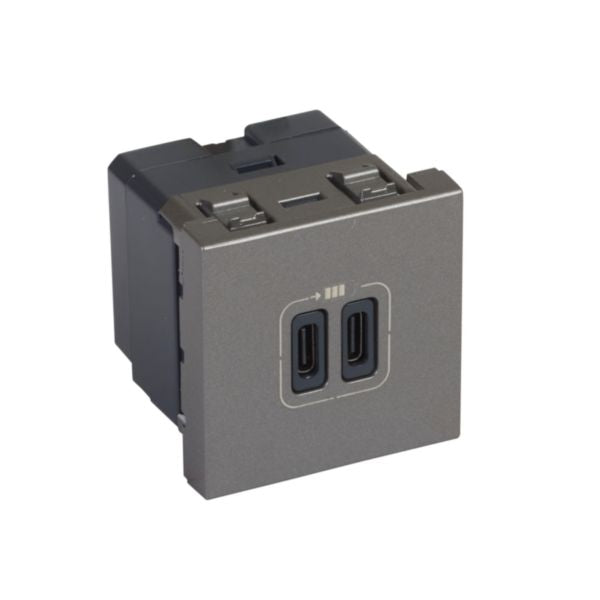

The Arteor 2 USB Type-C Charging Socket is a premium dual-port USB charging solution designed for modern electrical installations. This innovative socket features two USB Type-C ports with a combined output of 3A at 15W, allowing simultaneous charging of multiple portable devices without requiring separate mobile chargers. The socket operates on standard 230V AC power and converts it to 5V DC output, making it ideal for charging smartphones, tablets, and other USB Type-C compatible devices. The device is manufactured with magnesium finish for a sleek, contemporary appearance that complements modern interior design.
This flush-mounted 2-module socket is engineered to meet international standards including IEC 62684-2011-01 and features halogen-free construction for enhanced safety and environmental compliance. The socket includes rocker plates and is supplied without cord, requiring integration with support frames and plates for complete installation. With IP40 protection rating and IK04 impact strength, it provides reliable performance in residential and light commercial applications. The operating temperature range of 5-40°C ensures consistent functionality across various climatic conditions.
The Arteor charging socket incorporates advanced power management with minimal standby consumption of 0.064W, ensuring energy efficiency. It features screwed terminal connections compatible with 1.5-2.5mm² flexible or rigid cables, making installation straightforward for qualified electricians. The device dimensions of 45mm width and height with 42mm depth allow for seamless integration into standard electrical installations. This product represents the perfect balance between functionality, design, and reliability for contemporary home and building automation systems.
Key Features
- Dual USB Type-C ports for simultaneous charging of multiple devices
- High-power output of 3A at 15W for fast and efficient charging
- Magnesium finish for sleek, contemporary aesthetic design
- Halogen-free construction for enhanced safety and environmental compliance
- IP40 protection rating with IK04 impact strength for reliable performance
- Minimal standby consumption of 0.064W for energy efficiency
- Compliant with international standard IEC 62684-2011-01
- Screwed terminal connections compatible with 1.5-2.5mm² cables
- Operating temperature range of 5-40°C for consistent functionality
- Flush-mounted 2-module design for seamless installation
Technical Specifications
| Specification |
Value |
| Product Reference | 572572 |
| EAN Code | 3414971007253 |
| Brand | Legrand - Arteor |
| Number of USB Ports | 2 USB Type-C ports |
| Number of Modules | 2 modules |
| Input Voltage | 100-240V AC |
| Input Frequency | 50-60 Hz |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) |
| Output Power | 15W |
| Standby Power Consumption | 0.064W |
| Supply Current | 0.5A |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Mounting Method | Flush-mounted |
| Color | Aluminium (Magnesium) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Built-in Depth | 33 mm |
| Minimum Installation Box Depth | 40 mm |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen-Free | Yes |
| Number of Terminals | 2 |
| Terminal Marking | Yes |
| Mandatory Neutral | Yes |
| Compliance Standards | IEC 62684-2011-01 |
| Supplied Without | Cord |
| Includes | Rocker plates |
Order Legrand Arteor Double USB Type-C Charging Socket 3A 15W Magnesium | 572572 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
