Shop Legrand Arteor Double USB Type-C Charging Socket 3A 15W 230V Champagne | 571078 In Iraq Best Prices
Premium dual USB Type-C charging socket delivering 3A/15W power with champagne finish. Features IP40 protection, halogen-free design, and complies with IEC 62684 standards for safe, efficient device charging.

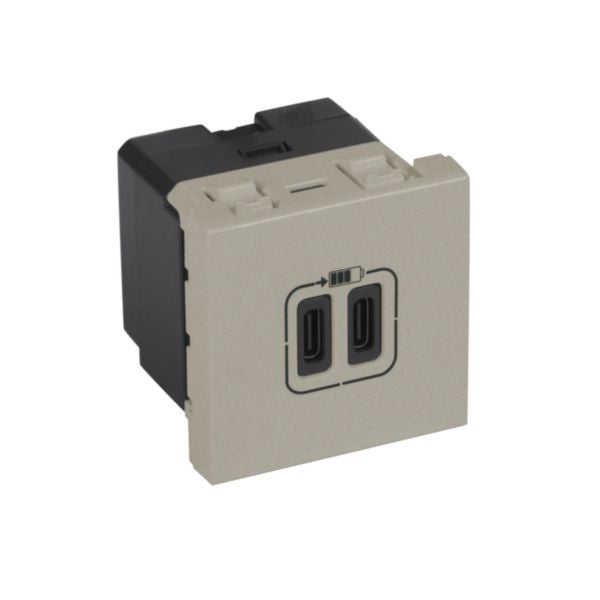

The Arteor 2 USB Type-C Charging Socket is a premium dual-port charging solution designed for modern connectivity needs. This innovative socket features two USB Type-C ports capable of delivering 3A at 15W output, providing fast and efficient charging for portable devices without requiring a separate mobile charger. Operating at 230V AC input with 5V DC output, this socket maintains low standby consumption and conforms to IEC 62684-2011-01 standards for safety and reliability.
This flush-mounted charging socket is constructed with a champagne-colored finish and measures 45mm x 45mm x 42mm, making it a sleek addition to any modern interior. The device is supplied with rocker plates and requires support frames and plates for installation. With IP40 degree of protection and IK04 impact strength rating, it offers reliable performance in residential and commercial environments. The socket features screwed terminal connections accommodating flexible or rigid cables from 1.5-2.5mm², ensuring secure and versatile installation options.
The Arteor USB charging socket system is halogen-free and designed to meet contemporary electrical standards. Operating across a wide frequency range of 50-60Hz and voltage input of 100-240V, this socket provides universal compatibility. The 2-module design integrates seamlessly into standard electrical installations, offering both functionality and aesthetic appeal. Perfect for kitchens, bedrooms, living rooms, and commercial spaces, this charging socket eliminates the need for bulky adapters and multiple chargers.
Key Features
- Dual USB Type-C ports for simultaneous charging of two devices
- 3A output current with 15W power delivery for fast charging
- Low standby consumption with IEC 62684-2011-01 compliance
- IP40 degree of protection and IK04 impact strength rating
- Champagne finish with sleek 45mm x 45mm x 42mm dimensions
- Halogen-free construction for enhanced safety
- Flexible installation with 1.5-2.5mm² terminal capacity
- Universal voltage compatibility 100-240V AC, 50-60Hz
Technical Specifications
| Specification |
Value |
| Product Name | Arteor 2 USB Type-C Charging Socket |
| SKU/Reference | 571078 |
| EAN Code | 3414971852044 |
| Brand | Legrand |
| Number of USB Ports | 2 USB Type-C ports |
| Input Voltage | 100-240V AC |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) |
| Power Output | 15W |
| Frequency Range | 50-60 Hz |
| Power Consumption | 0.064W |
| Number of Modules | 2 modules |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 42 mm |
| Minimum Installation Box Depth | 40 mm |
| Built-in Depth | 33 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Number of Terminals | 2 |
| Mounting Method | Flush-mounted |
| Color | Champagne |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Supply Current | 0.5A |
| Voltage Type | AC |
| Power Delivery | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Standards Compliance | IEC 62684-2011-01 |
Order Legrand Arteor Double USB Type-C Charging Socket 3A 15W 230V Champagne | 571078 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
