Shop Legrand Arteor 2 Gang Multistandard Switched Outlets USB A+C 27W Charger | 571094 In Iraq Best Prices
Premium 2 gang multistandard switched outlet with integrated 27W USB A+C charging, soft aluminum finish, enhanced safety shutters, and screw-type terminals for secure connections. Perfect for modern homes and commercial spaces.

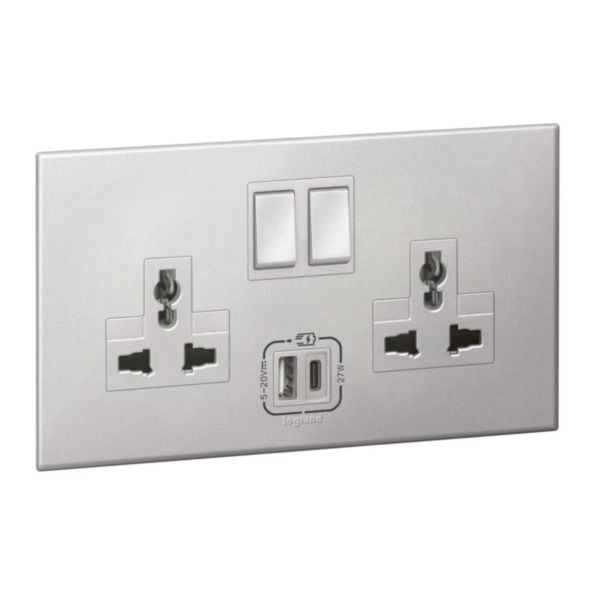

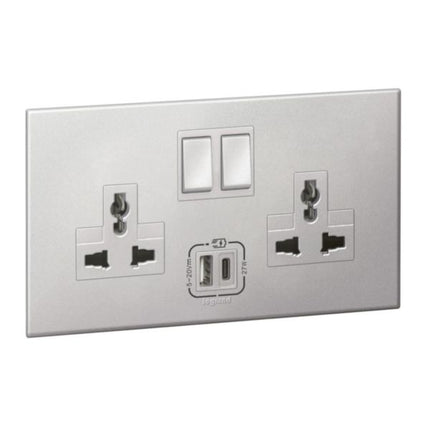

The Arteor™ 2 gang multistandard switched outlets with USB A+C 27W charger is a modern, versatile solution designed for contemporary electrical installations. This innovative product combines two 2P+E multistandard outlets rated at 13A, 250V with integrated 27W USB charging capabilities featuring both Type A and Type C ports. The soft aluminum finish provides an elegant aesthetic that complements any interior design, while the screw-type terminals ensure secured and enhanced electrical contacts for reliable performance.
This dual-function outlet is engineered for maximum safety and convenience, featuring enhanced contact protection with safety shutters to maximize child protection. The product is delivered with a protective shell against paint and dust during the installation phase, ensuring pristine condition upon installation. With a square cover plate measuring 86x146mm and a product thickness of only 7mm once installed on the wall, it offers a sleek, space-efficient design. The strip length indicator feature avoids waste of wires, making installation more efficient for professionals and DIY enthusiasts alike.
The Arteor™ outlet is optimized for new builds and ideal for renovation projects, featuring quick and easy installation in double wall box installations. It comes delivered with screws suitable for both flush and surface boxes in plastic and metal configurations. With 4 modules in the assembly arrangement and support for both flexible and rigid cables with a terminal capacity of 1-4mm², this product offers exceptional versatility and reliability for residential and commercial applications.
Key Features
- Dual 2P+E multistandard outlets rated 13A, 250V with integrated 27W USB charging
- USB Type A and Type C ports for universal device compatibility and fast charging
- Enhanced contact protection with safety shutters for maximum child safety
- Soft aluminum finish with elegant design suitable for any interior aesthetic
- Screw-type terminals ensuring secured and enhanced electrical contacts
- Square cover plate 86x146mm with slim 7mm installation profile
- Strip length indicator to minimize wire waste during installation
- Quick and easy installation in double wall box configurations
- Supplied with protective shell against paint and dust during installation
- Compatible with both plastic and metal flush and surface mounting boxes
- Supports flexible and rigid cables with 1-4mm² terminal capacity
- Halogen-free material construction for environmental safety
- Suitable for indoor use only with IP20 degree of protection
- Operating temperature range -5°C to +50°C for reliable performance
- 4-module assembly arrangement for optimal space utilization
Technical Specifications
| Specification |
Value |
| Model | Multi-standard socket with USB charging |
| Socket Configuration | 2x2P+E multistandard outlets |
| Rated Current | 13A per outlet, 16A nominal |
| Rated Voltage | 250V AC |
| Frequency | 50 Hz |
| USB Ports | 1x Type A + 1x Type C |
| USB Power Output | 27W total power delivery |
| Cover Plate Dimensions | 86x146mm square design |
| Installation Depth | 7mm thickness when installed |
| Built-in Depth | 20.7mm |
| Minimum Box Depth | 35mm required |
| Module Count | 4 modules in assembly |
| Connection Type | Screw-type terminals |
| Terminal Capacity | 1-4mm² flexible or rigid cables |
| Contact Protection | Enhanced with safety shutters |
| Material | Thermoplastic - Halogen-free |
| Color | Soft Aluminum finish |
| Degree of Protection | IP20 |
| Impact Strength | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -5°C to +50°C |
| Voltage Type | AC |
| Power Delivery | Yes - USB Power Delivery certified |
| Installation Method | Flush-mounted in wall boxes |
| Switch Function | On/off switches for both outlets |
| Switchable Outlets | 2 outlets with individual switches |
| Product Reference | REF. 571094 |
| EAN Code | 3414972426404 |
| Use Environment | Indoor use only |
| Mounting Compatibility | Plastic and metal flush/surface boxes |
Order Legrand Arteor 2 Gang Multistandard Switched Outlets USB A+C 27W Charger | 571094 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
