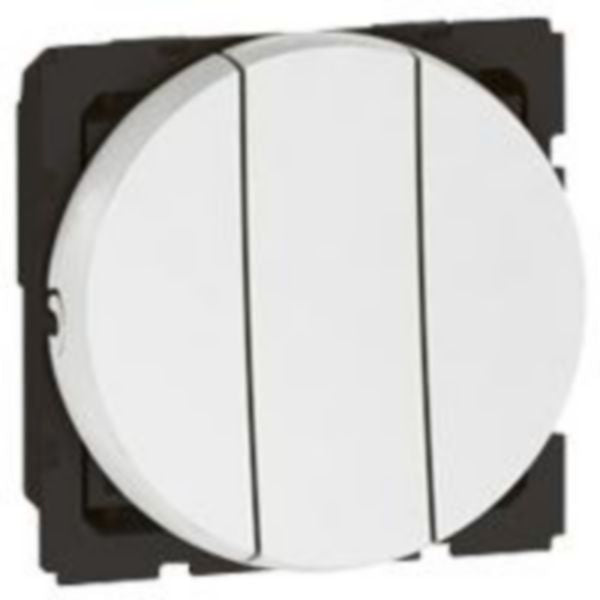

Shop Legrand Arteor 1-Way Switch 250V 20AX 3-Gang Round White | 573072 In Iraq Best Prices
Premium modular 1-way switch with 20AX 250V capacity, 3-gang round design, white finish, halogen-free thermoplastic construction, and reliable rocker operation for modern residential and commercial applications.
The Arteor™ 1-way switch is a premium modular electrical switching device designed for residential and commercial applications. This high-quality switch features a 20 AX rated current capacity at 250V AC, making it suitable for standard household lighting and appliance control. The 3-gang configuration with round design provides elegant aesthetics while maintaining robust functionality. Built with thermoplastic material and halogen-free construction, this switch meets modern safety and environmental standards. The rocker/button operation mechanism ensures smooth and reliable switching performance for daily use.
This modular device is engineered for easy installation with snap-engage fastening into standard module frames. The white finish with glossy surface protection complements modern interior designs while maintaining durability against wear and dust. With IP40 degree of protection and IK04 impact strength rating, the switch is well-suited for typical indoor environments. The device operates reliably across a wide temperature range from -5°C to 50°C, ensuring consistent performance in various climatic conditions. The 2-module configuration allows for flexible installation in standard electrical boxes with a minimum depth of 30mm.
The Arteor™ switch incorporates screwed terminal connections for secure and reliable wiring. It is compatible with 50-60 Hz frequency standards and supports cable sections from 4-4 mm². This professional-grade switching solution combines functionality, safety, and aesthetic appeal, making it an ideal choice for modern electrical installations where quality and reliability are paramount.
Key Features
- 20 AX rated current at 250V AC for standard household applications
- 3-gang round design with elegant white glossy finish
- Halogen-free thermoplastic material for safety and environmental compliance
- IP40 protection rating and IK04 impact strength for indoor durability
- Snap-engage fastening system for easy modular installation
- Rocker/button operation mechanism for smooth and reliable switching
- Screwed terminal connections for secure wiring
- 2-module configuration compatible with standard electrical boxes
- Operating temperature range from -5°C to 50°C
- 50-60 Hz frequency compatible for global applications
Technical Specifications
| Specification |
Value |
| Product Type | 1-Way Mechanical Switch |
| Rated Current | 20 AX |
| Nominal Voltage | 250 V AC |
| Number of Gangs | 3-gang |
| Number of Modules | 2 modules |
| Material | Halogen-free Thermoplastic |
| Colour | White (RAL 9003) |
| Surface Finish | Glossy |
| Operation Method | Rocker/Button |
| Mounting Type | Module Frame with Snap-Engage Fastening |
| Connection Type | Screwed Terminal |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42.2 mm |
| Built-in Depth | 28.5 mm |
| Minimum Installation Box Depth | 30 mm |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Frequency | 50-60 Hz |
| Cable Section | 4-4 mm² |
| Antimicrobial Treatment | No |
| Monitoring Contact | No |
| Lighting Function | No |
Order Legrand Arteor 1-Way Switch 250V 20AX 3-Gang Round White | 573072 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
