Description

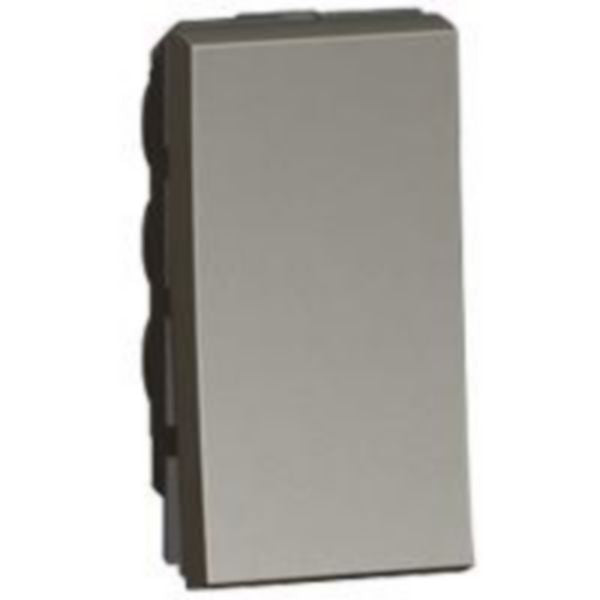

Shop Legrand Arteor 1-Way Switch 250V 10AX Magnesium Round Module | 573111 In Iraq Best Prices

Premium Arteor 1-way electrical switch with 10 AX 250V rating, magnesium finish, modular design, and halogen-free thermoplastic construction for modern residential applications.

The Arteor 1-way switch from Legrand is a premium electrical switching device designed for modern residential and commercial applications. This robust switch features a 10 AX rated current capacity at 250V AC, making it suitable for standard lighting and small appliance control. The magnesium-colored round design provides an elegant aesthetic that complements contemporary interior décor while maintaining exceptional durability and reliability. The switch operates as a single-pole mechanism with a rocker/button operation method, allowing for smooth and intuitive control of electrical circuits. This modular switching device is engineered with thermoplastic construction and features halogen-free materials, making it environmentally friendly and compliant with modern safety standards. The switch is housed in a snap-engage module frame system, allowing for easy installation and replacement within compatible Arteor system frames. With an operating temperature range of -5°C to 50°C and storage capabilities from -10°C to 70°C, this switch maintains optimal performance across various climate conditions. The Arteor switch series represents Legrand's commitment to quality electrical infrastructure, combining functional excellence with aesthetic appeal. The matte lacquered surface finish provides protection against dust and corrosion, while the IP40 protection rating and IK04 impact resistance ensure long-term reliability in typical domestic environments. This product is compatible with standard 4mm² cable sections and includes screwed terminal connections for secure wiring.

Key Features

10 AX 250V AC rated capacity for reliable lighting and appliance control
Single-pole 1-way switching mechanism with smooth rocker operation
Modular snap-engage frame system for easy installation and compatibility
Halogen-free thermoplastic material construction for environmental safety
Matte lacquered magnesium finish with IP40 protection and IK04 impact resistance
Compact round design fits standard 22.5mm width electrical frames
Operating temperature range -5°C to 50°C for diverse climate conditions
Screwed terminal connections compatible with 4-4mm² cable sections

Technical Specifications

Specification	Value
Product Type	1-Way Electrical Switch
Rated Current	10 AX
Nominal Voltage	250V AC
Frequency Range	50-60 Hz
Wiring System	Single-pole switch
Operation Method	Rocker/Button
Number of Modules	1 middle module
Material	Halogen-free thermoplastic
Color	Magnesium grey
Surface Finish	Matte lacquered
Device Width	22.5 mm
Device Height	45 mm
Device Depth	42.2 mm
Built-in Depth	28.5 mm
Minimum Installation Box Depth	30 mm
Protection Rating	IP40
Impact Strength	IK04
Cable Section	4-4 mm²
Connection Type	Screwed terminal
Fastening Type	Snap-engage (modular frame)
Operating Temperature	-5°C to 50°C
Storage Temperature	-10°C to 70°C
Mounting Method	Module frame system
SKU	573111
EAN Code	3245065731118

Order Legrand Arteor 1-Way Switch 250V 10AX Magnesium Round Module | 573111 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
