Shop Legrand Arteor 1-Way Switch 250V 10AX Round Magnesium 2 Modules | 573160 In Iraq Best Prices
Premium Arteor 1-way mechanical switch with 10AX 250V capacity, round magnesium design, 2-module configuration, snap-type mounting, halogen-free construction, and IP40 protection for modern residential installations.

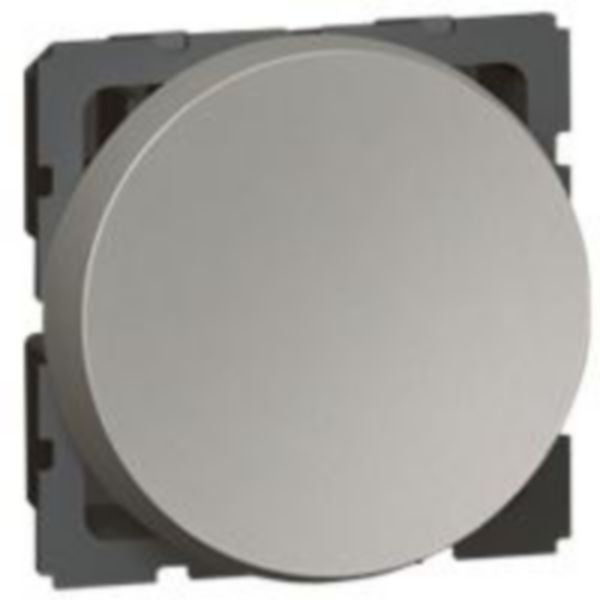

The Arteor™ 1-way switch is a premium mechanical switching solution designed for modern residential and commercial applications. This round-format switch features a 10 AX rated current capacity at 250V AC, making it ideal for controlling standard lighting circuits and electrical loads. The switch is constructed from high-quality thermoplastic material in an elegant magnesium gray finish, providing both durability and aesthetic appeal. With its modular design consisting of 2 modules, this switch integrates seamlessly into Arteor's comprehensive wiring device ecosystem.
The switch operates through a reliable rocker/button mechanism with a single-pole configuration, ensuring smooth and consistent operation. It features snap-type engagement mounting for quick and secure installation within standard module frames. The device is halogen-free and complies with IP40 protection rating, making it suitable for typical indoor environments. Its compact dimensions (45mm x 45mm x 42.2mm) and 28.5mm built-in depth allow for easy installation in standard electrical boxes with a minimum depth of 30mm.
This Legrand product (REF. 573160, EAN 3245065731606) represents the perfect combination of functionality, reliability, and contemporary design. The matt lacquered surface provides excellent durability and easy maintenance, while the thermoplastic construction ensures longevity and resistance to wear. Operating across a temperature range of -5°C to 50°C, this switch maintains consistent performance in various environmental conditions, making it an excellent choice for any modern electrical installation.
Key Features
- 1-pole single-way switching mechanism with rocker/button operation
- 10 AX rated current capacity at 250V AC for standard lighting circuits
- Modular 2-module design compatible with Arteor frame systems
- Halogen-free thermoplastic construction in elegant magnesium gray finish
- Snap-type engagement mounting for quick and secure installation
- IP40 protection rating suitable for typical indoor environments
- IK04 degree of impact strength for residential durability
- Compact dimensions: 45mm x 45mm x 42.2mm with 28.5mm built-in depth
- Operates reliably across -5°C to 50°C temperature range
- Matt lacquered surface finish for enhanced durability and easy maintenance
Technical Specifications
| Specification |
Value |
| Product Name | Arteor 1-way Switch |
| Reference Number | 573160 |
| EAN Code | 3245065731606 |
| Wiring System | Switch 1-pole |
| Method of Operation | Rocker/button |
| Number of Modules | 2 modules |
| Number of Rockers | 1 |
| Mounting Method | Module frame with snap engagement |
| Material | Thermoplastic (halogen-free) |
| Color | Magnesium gray |
| Surface Finishing | Matt lacquered |
| Nominal Voltage | 250V AC |
| Rated Current | 10 A |
| Switching Current for Fluorescent Lamps | 10 AX |
| Connection Type | Screwed terminal |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42.2 mm |
| Built-in Depth | 28.5 mm |
| Minimum Installation Box Depth | 30 mm |
| IP Protection Rating | IP40 |
| IK Impact Strength | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Frequency | 50-60 Hz |
| Cable Section | 4-4 mm² |
| Push Button Switch | No |
| Monitoring Contact | No |
| Heating Switch | No |
| Smart Home Compatible | Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa |
Order Legrand Arteor 1-Way Switch 250V 10AX Round Magnesium 2 Modules | 573160 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
